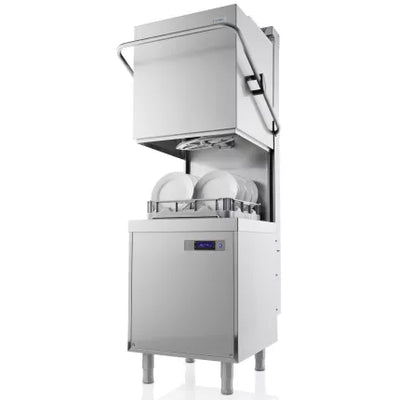

Classeq CP500SR-22 Pass Through Dishwasher

The Classeq CP500SR-22 Pass Through Dishwasher delivers powerful, high-capacity performance with an integrated Steam Recovery Unit that reduces kitchen steam and boosts energy efficiency. Designed for flexibility, it can operate as both a dishwasher and glasswasher, making it ideal for demanding commercial environments.

Key Features

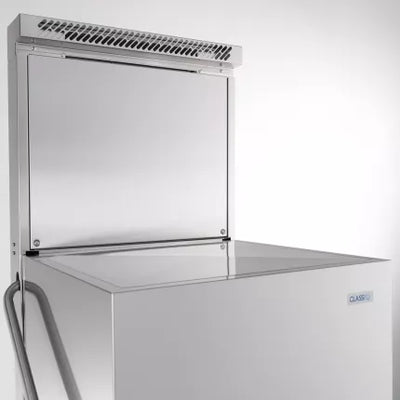

• Integrated Steam Recovery Unit reduces steam and removes need for extraction
• Reuses captured heat to preheat incoming water for improved efficiency
• Configurable for straight or corner installation
• Can be commissioned as a dishwasher or glasswasher
• Three phase, 22 Amp power supply
• Washes up to 720 plates per hour
• Cleans up to 1,000 glasses per hour
• Drain pump, rinse booster pump, detergent and rinse aid pumps included as standard
• Fully WRAS compliant with Type ‘A’ air gap
• Colour-coded display for simple operation
• Energy-saving standby mode
• Dishwasher cycles: 1.5, 3, 5, and 7 minutes
• Glasswasher cycles: 1.5 and 2 minutes
• Click-in, click-out wash arms for easy maintenance
• Double filtration system for improved wash quality
• Deep clean and refresh cycles included
• Optional integral water softener version (CP500WSSR) for hard water areas
• Optional chemical lance kit with low detergent and rinse aid alerts (engineer installation required)
• Compatible with Classeq Bluetooth App
• Supplied with 500 x 500 mm basket
• Made in the UK
• 2-year full onsite warranty
• For tabling options, please contact the office

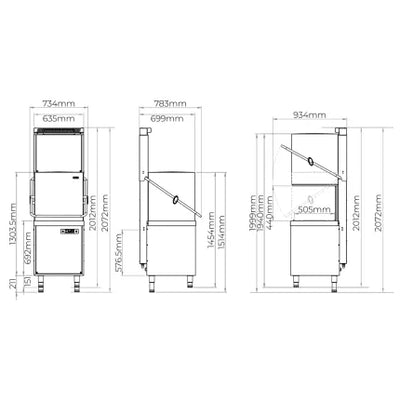

Technical Specifications

• Width: 635 mm
• Depth: 712 mm
• Height: 2012–2072 mm
• Power: 12.5 kW, 3 Phase / 22 Amp
• Basket Size: 500 x 500 mm
• Max Racks per Hour: 40
• Plates per Rack: 18


Documents

Specification sheet
