Hobart Ecomax F504 Undercounter Dishwasher

Hobart Ecomax F504 Undercounter Dishwasher

The Hobart Ecomax F504 Undercounter Dishwasher is a high-performance commercial dishwasher designed to deliver consistently excellent washing results while minimising water, energy and detergent consumption. Ideal for restaurants, cafés, pubs and commercial kitchens, it features a compact 25-litre wash tank, 500 × 500mm basket and can process up to 60 racks per hour. Advanced rotating upper and lower wash and rinse arms with anti-block jets ensure complete cleaning coverage, while the intuitive soft-touch electronic controls, thermo-stop rinse control and automatic detergent and rinse aid dosing provide reliable performance and outstanding hygiene. Built from durable stainless steel in Germany, the F504 also includes an integral drain pump, booster pump and energy-saving wash programmes to reduce operating costs without compromising results.

Key Features

• Five wash programmes: 60, 120, 180 seconds, Hygiene and ESave
• Processes up to 60 racks (approximately 1,080 plates) per hour
• 500 × 500mm basket capacity (up to 18 plates per rack)
• 25-litre compact wash tank for reduced water and energy consumption
• Updated single-button control with digital temperature display
• ESave cycle reduces energy consumption while maintaining performance
• Dedicated hygiene programme for improved machine cleanliness
• Reduced rinse water consumption on the 60-second cycle

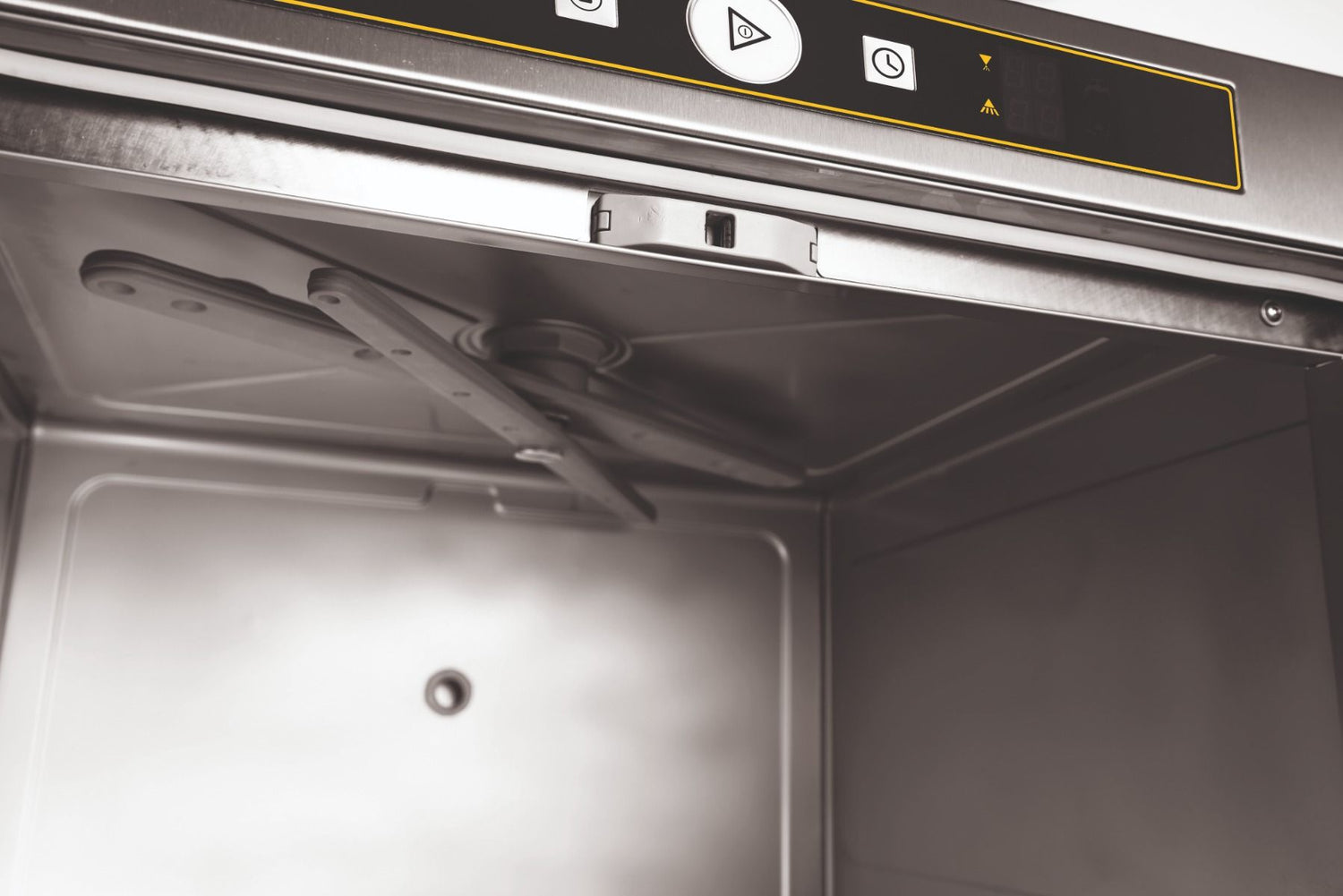

• Rotating upper and lower wash and rinse arms with anti-block jets for complete wash coverage
• Thermo-stop rinse control ensures the correct rinse temperature every cycle
• Double-skinned door reduces heat loss and operating noise
• Integral drain pump fitted as standard
• Integral booster pump for consistent rinse performance
• Built-in detergent and rinse aid dosing equipment
• Class A Air Gap for direct mains water connection

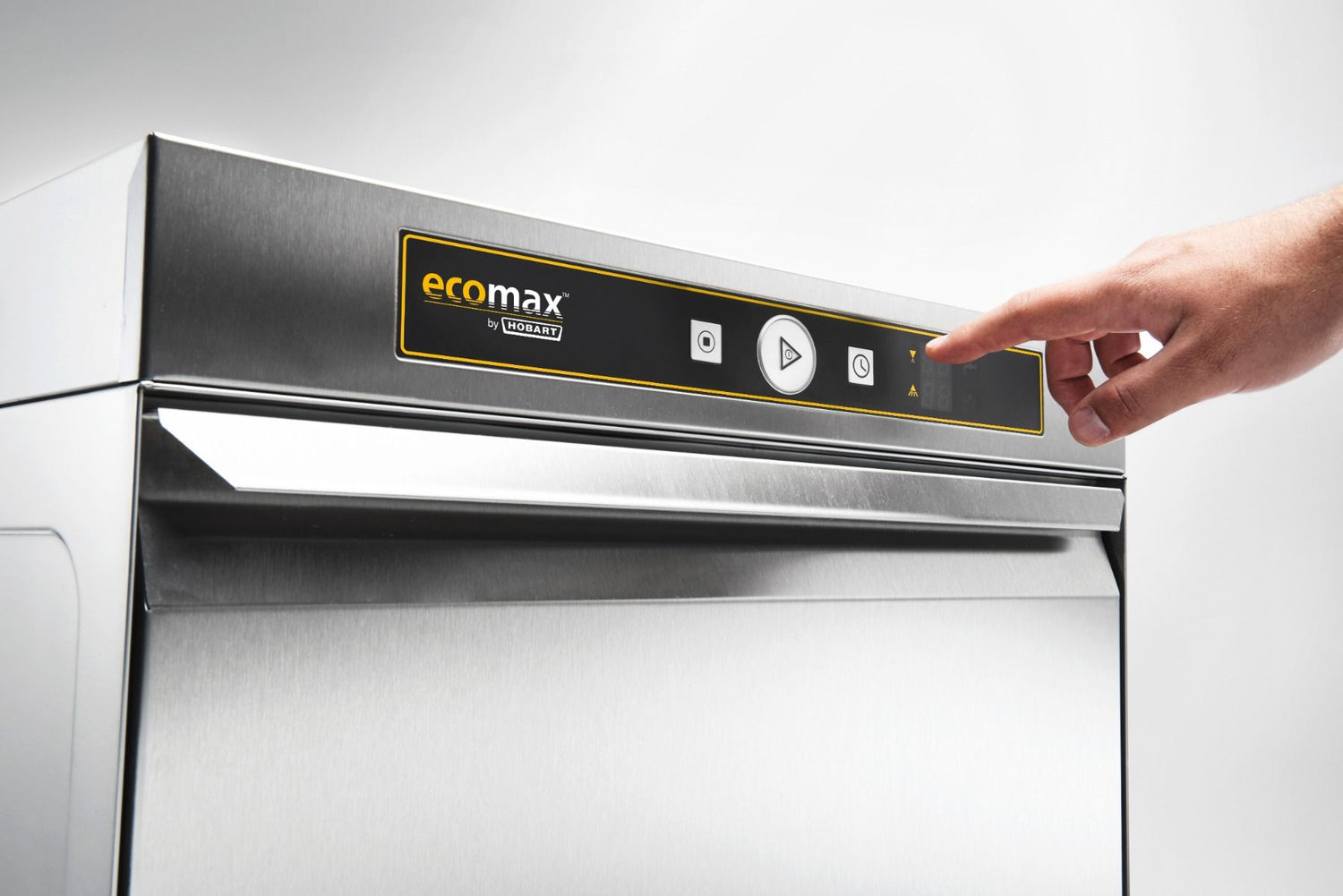

• Soft-touch electronic controls with adjustable operating parameters
• WRAS Approved
• Manufactured in Germany

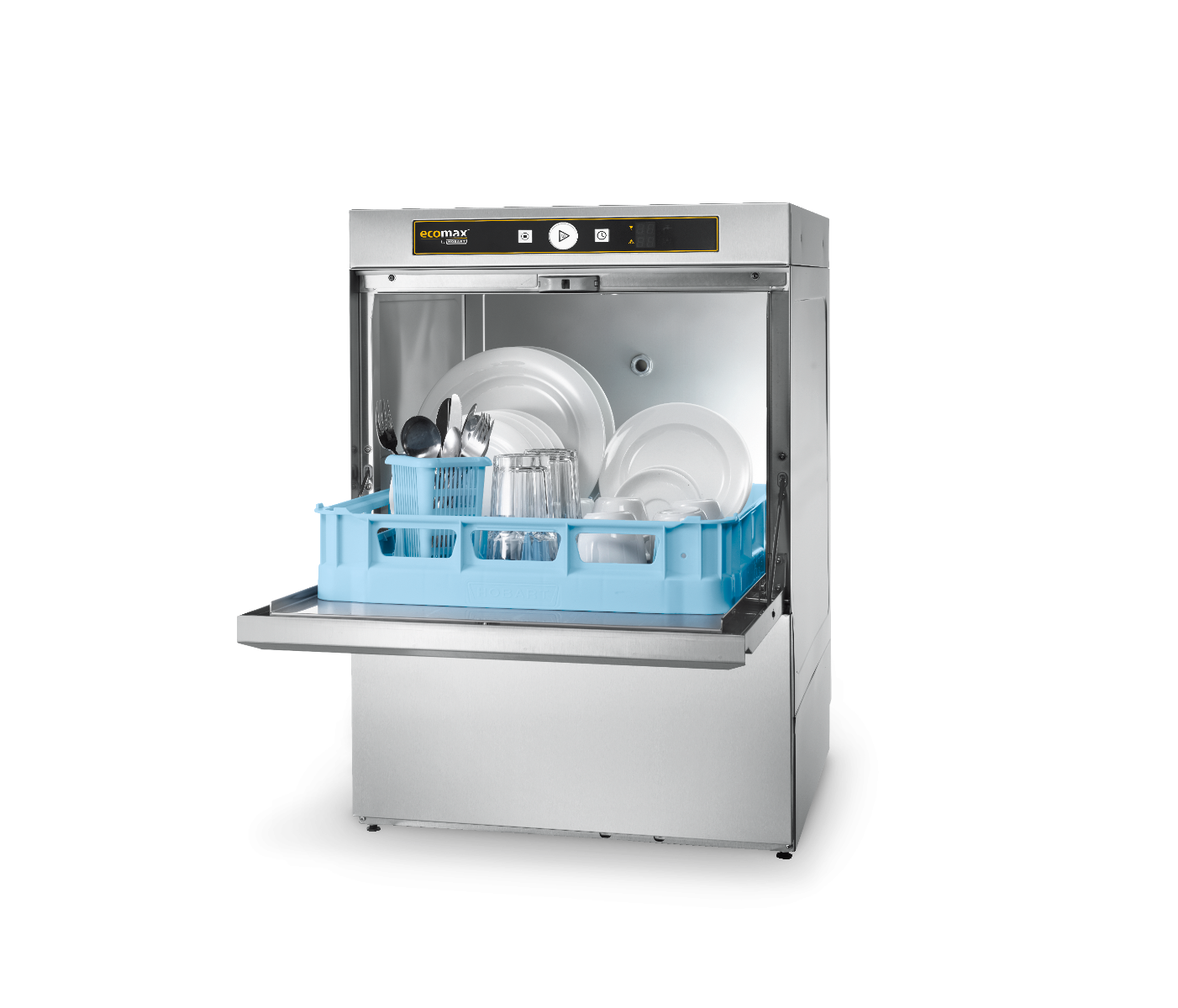

• Supplied with one plate rack and one cutlery basket

Specifications

• Model: F504-20C
• Basket Size: 500 × 500mm
• Usable Loading Height: 360mm
• Wash Tank Capacity: 25 litres
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Water Consumption: 2 litres per cycle
• Rack Capacity: Up to 60 racks (approximately 1,080 plates) per hour
• Water Supply: Hot or cold feed (maximum inlet temperature 60°C)
• Required Water Pressure: 0.8–6 Bar
• Electrical Loading: 4.1kW / 20A (230V/50Hz/1 Phase), switchable to 2.2kW / 13A (230V/50Hz/1 Phase) or 5.9kW / 3 × 16A (400V/50Hz/3 Phase)
• Dimensions (H × W × D): 820 × 576 × 604mm
• Country of Manufacture: Germany
• Approval: WRAS Approved
