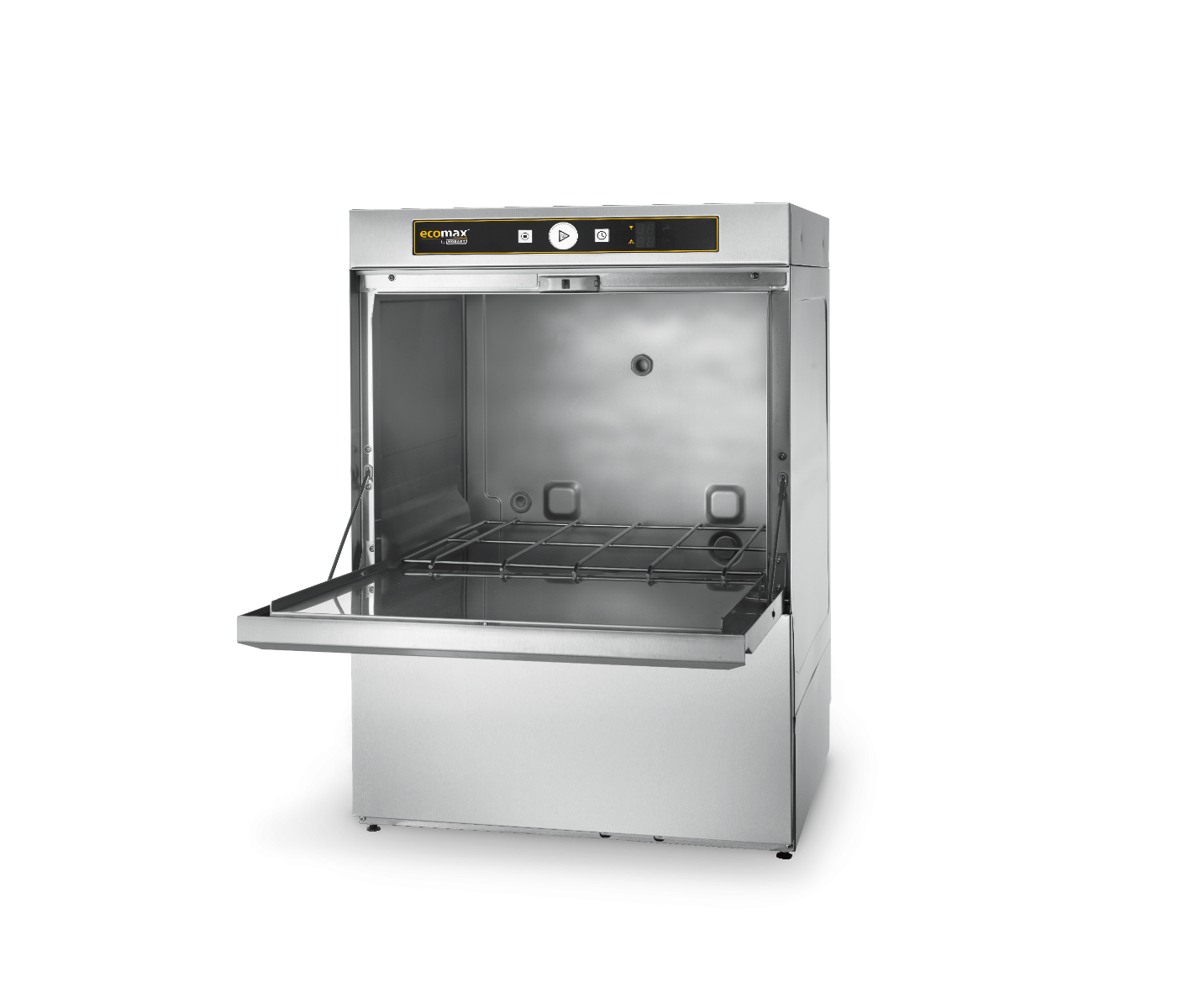

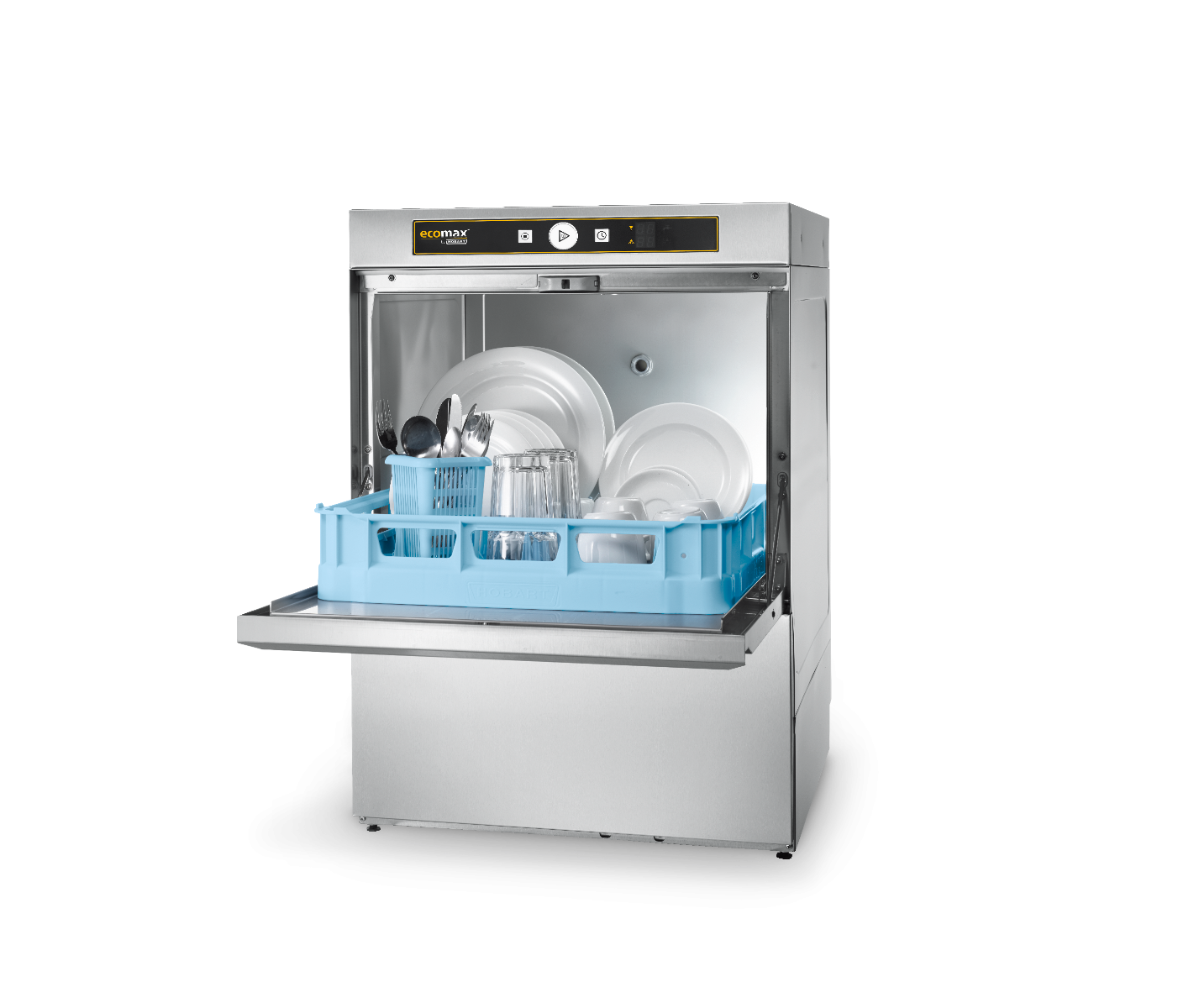

Hobart Ecomax F504S Undercounter Dishwasher (In-Built Softener)

Hobart Ecomax F504S Undercounter Dishwasher (In-Built Softener)

The Hobart Ecomax F504S Undercounter Dishwasher combines high-performance dishwashing with the added benefit of an integral water softener, making it the ideal solution for commercial kitchens in hard water areas. Designed to deliver consistently excellent cleaning results while reducing water, energy and detergent consumption, it can process up to 60 racks per hour and accommodates larger items thanks to its 360mm loading height. The factory-fitted water softener automatically regenerates to protect the machine against limescale, extending its service life and ensuring optimum wash performance. Built in Germany from durable stainless steel, the F504S also features rotating upper and lower wash and rinse arms, intuitive soft-touch electronic controls, an integral booster pump, drain pump, automatic detergent and rinse aid dosing, and a range of energy-saving wash programmes for reliable, economical operation.

Key Features

• Integral water softener with automatic regeneration for hard water areas
• Five wash programmes: 60, 120, 180 seconds, Hygiene and ESave
• Processes up to 60 racks per hour
• 500 × 500mm basket capacity (up to 18 plates per rack)
• 360mm loading height for large items, including pizza plates
• 25-litre compact wash tank for reduced water and energy consumption
• Updated single-button control with digital temperature display
• ESave cycle reduces energy consumption while maintaining wash performance
• Dedicated hygiene programme for improved machine cleanliness
• Reduced rinse water consumption on the 60-second cycle

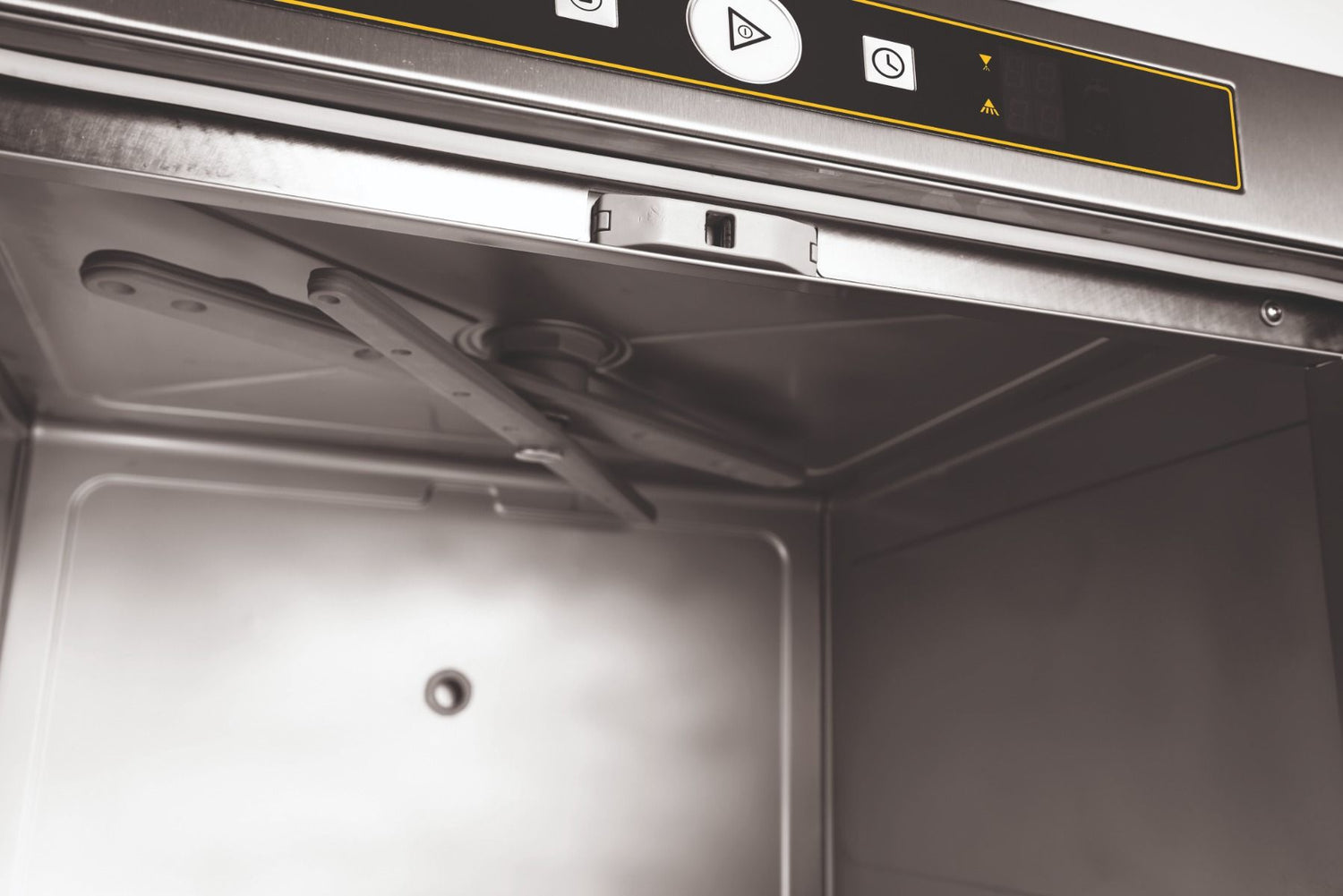

• Rotating upper and lower wash and rinse arms with anti-block jets for complete wash coverage
• Thermo-stop rinse control ensures the correct rinse temperature every cycle
• Double-skinned door reduces heat loss and operating noise
• Integral drain pump fitted as standard
• Integral booster pump for consistent rinse performance
• Built-in detergent and rinse aid dosing equipment
• Class A Air Gap for direct mains water connection

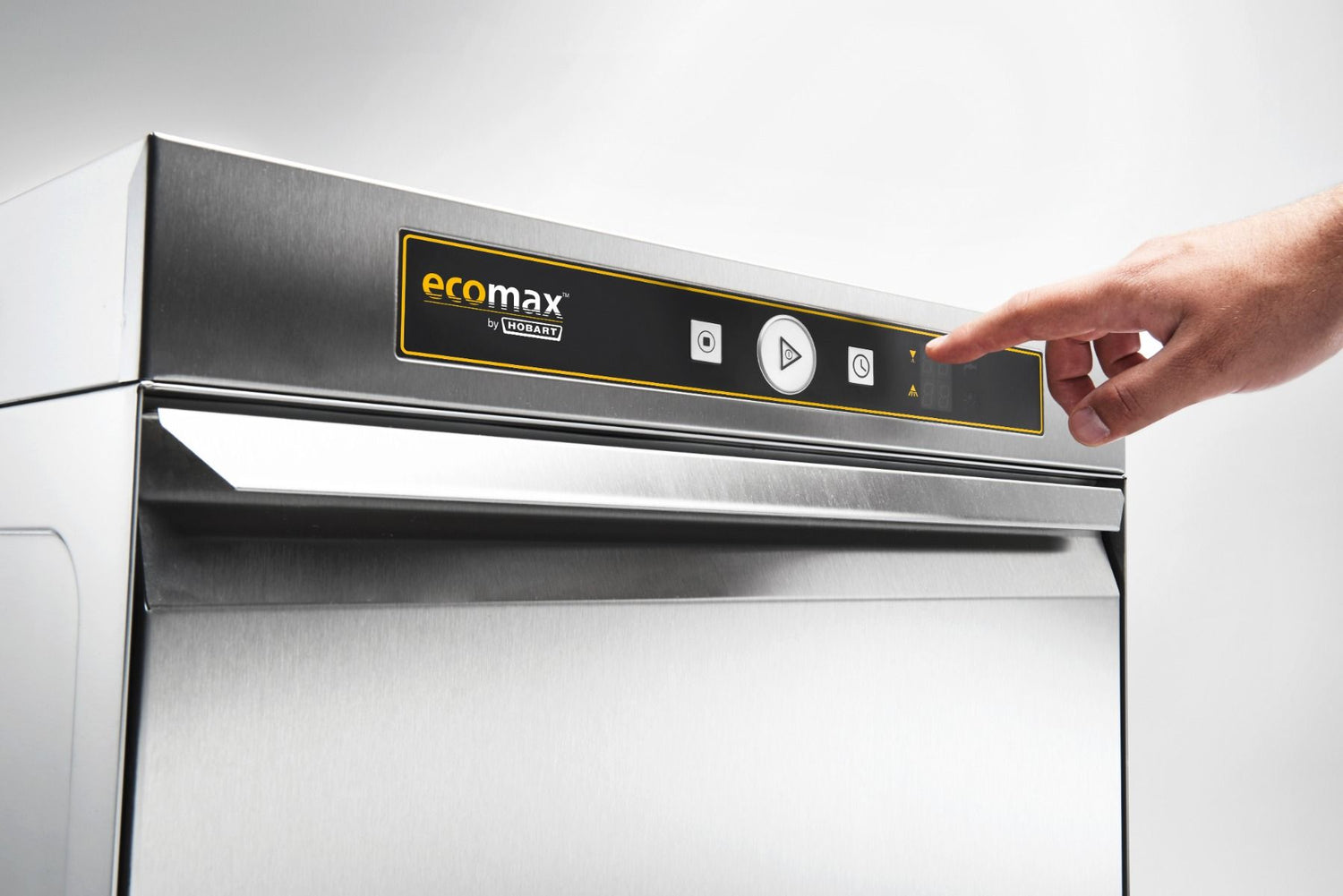

• Soft-touch electronic controls with adjustable operating parameters
• WRAS Approved
• Manufactured in Germany
• Supplied with one plate rack and one cutlery basket

Specifications

• Model: F504S-20C
• Basket Size: 500 × 500mm (up to 18 plates)
• Maximum Loading Height: 360mm
• Wash Tank Capacity: 25 litres
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Water Consumption: 2 litres per cycle
• Rack Capacity: Up to 60 racks per hour
• Water Softener: Integral with automatic regeneration
• Water Supply: Hot or cold feed (maximum inlet temperature 60°C)
• Required Water Pressure: 0.8–6 Bar
• Electrical Loading: 4.1kW / 20A (230V/50Hz/1 Phase), switchable to 2.2kW / 13A (230V/50Hz/1 Phase) or 5.9kW / 3 × 16A (400V/50Hz/3 Phase)
• Dimensions (H × W × D): 820 × 576 × 604mm
• Country of Manufacture: Germany
• Approval: WRAS Approved
