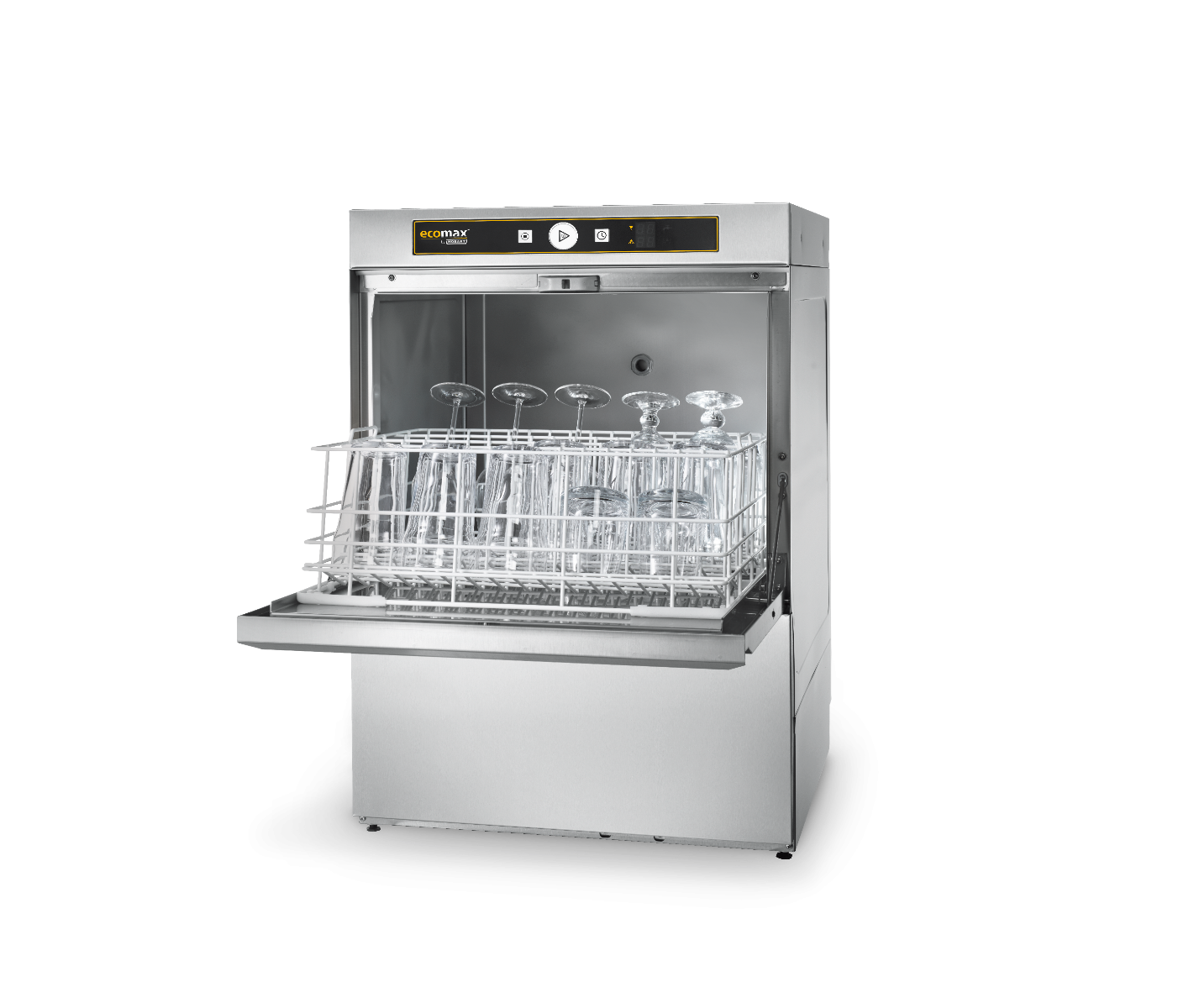

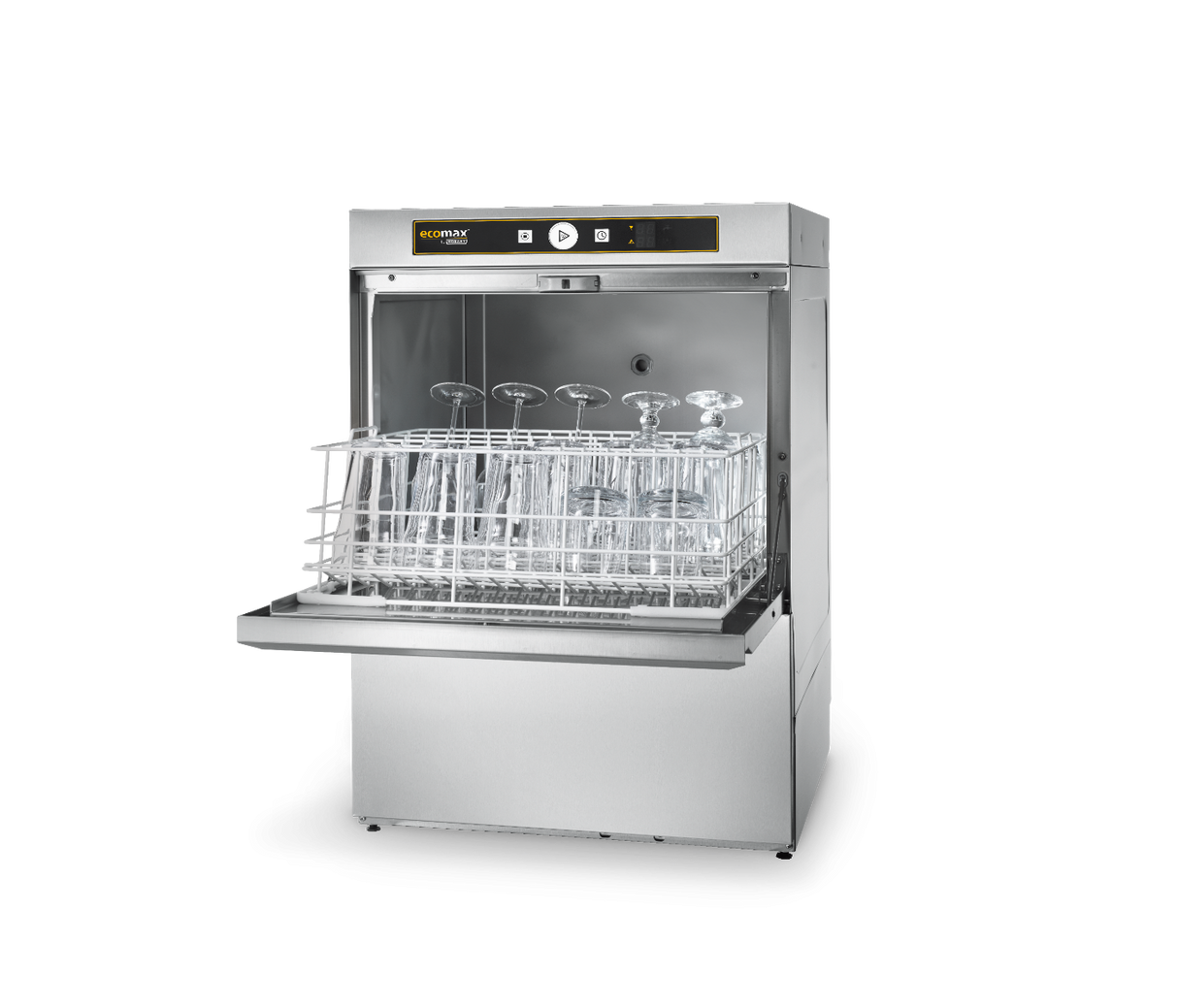

Hobart Ecomax G504 Glasswasher

Hobart Ecomax G504 Glasswasher

The Hobart Ecomax G504 Glasswasher is a high-performance commercial glasswasher designed for busy pubs, bars, clubs, cafés and restaurants. Combining powerful washing performance with low running costs, it delivers consistently sparkling glassware while helping reduce water and energy consumption. The increased 360mm loading height easily accommodates tall stemmed glasses, while the 25-litre wash tank and 500 x 500mm basket enable the machine to process up to 60 racks per hour. Built from robust stainless steel in Germany, the G504 features intuitive electronic controls, multiple wash programmes, integrated detergent and rinse aid dosing, and advanced hygiene features including thermo-stop rinse control, a self-flushing cycle and a dedicated hygiene programme. With an energy-saving ESave cycle, a double-skinned door for quieter operation and an integral drain pump fitted as standard, the Hobart Ecomax G504 is a reliable and efficient solution for demanding commercial environments.

Key Features

• Five wash programmes: 60, 120, 180 seconds, Hygiene and ESave
• Processes up to 60 racks per hour
• 500 x 500mm basket size
• 360mm loading height for tall glasses
• 25-litre wash tank for high-performance washing
• Updated single-button control with digital temperature display
• ESave cycle reduces energy consumption while maintaining wash performance
• Dedicated hygiene programme for improved machine cleanliness
• Reduced rinse water consumption on the 60-second cycle
• Rotating upper and lower wash arms with anti-block jets for complete wash coverage
• Thermo-stop rinse control ensures the correct rinse temperature every cycle
• Double-skinned door reduces heat loss and operating noise
• Integral drain pump fitted as standard
• Built-in detergent and rinse aid dosing equipment
• Automatic self-flushing cycle
• Class A Air Gap for direct mains water connection
• Soft-touch electronic controls with adjustable parameters
• WRAS Approved
• Manufactured in Germany
• Supplied with one 4-division glass rack and one cutlery basket

Specifications

• Model: G504-10C
• Basket Size: 500 × 500mm
• Maximum Loading Height: 360mm
• Wash Tank Capacity: 25 litres
• Wash Temperature: 50°C
• Rinse Temperature: 67°C
• Water Consumption: 2 litres per cycle
• Rack Capacity: Up to 60 racks per hour
• Water Supply: Hot or cold feed
• Required Water Pressure: 0.8–6 Bar
• Electrical Loading: 4.1kW / 20A (230V/50Hz/1 Phase), switchable to 2.2kW / 13A (230V/50Hz/1 Phase) or 5.9kW / 3 × 16A (400V/50Hz/3 Phase)
• Dimensions (H × W × D): 820 × 576 × 604mm
• Country of Manufacture: Germany
• Approval: WRAS Approved
