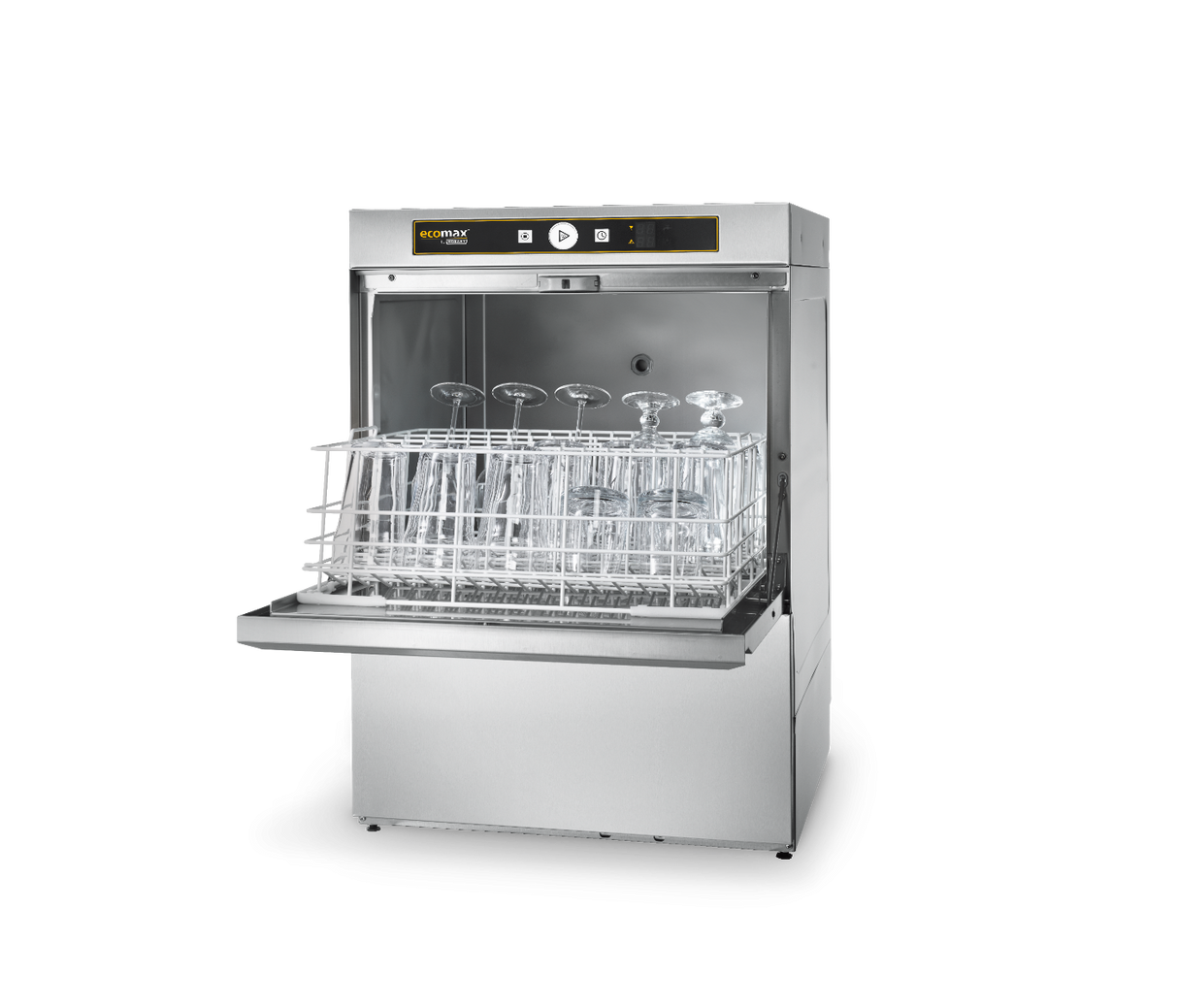

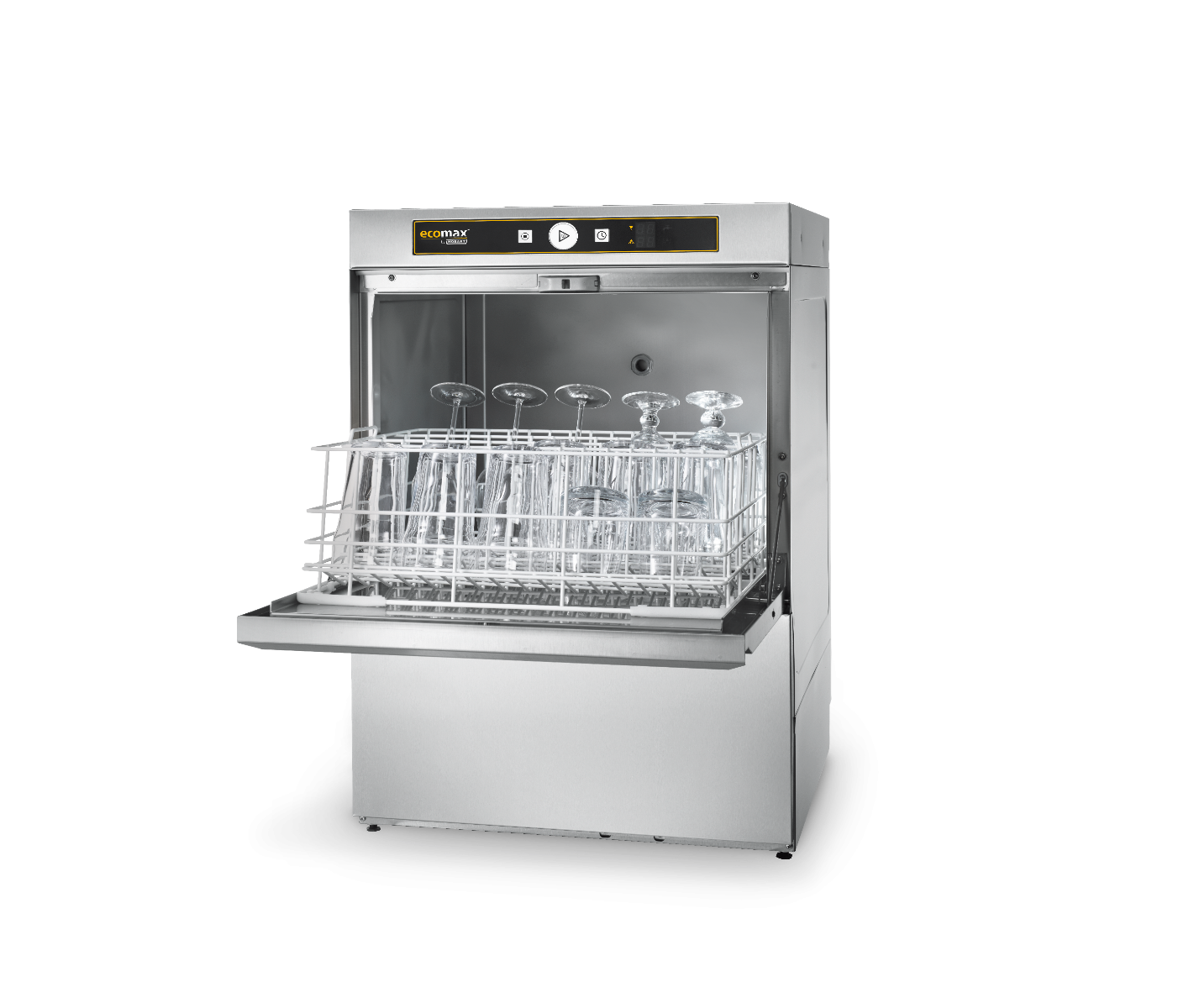

Hobart Ecomax G504S Glasswasher (In-Built Softener)

Hobart Ecomax G504S Glasswasher (In-Built Softener)

The Hobart Ecomax G504S Glasswasher combines powerful washing performance with an integrated water softener, making it the ideal choice for commercial kitchens and bars operating in hard water areas. Designed for busy pubs, clubs, restaurants and cafés, it delivers consistently sparkling glassware while helping to protect the machine from limescale build-up. Featuring a generous 360mm loading height, 500 x 500mm basket and 25-litre wash tank, the G504S can process up to 60 racks per hour with a choice of five wash programmes, including Hygiene and ESave cycles. Manufactured in Germany from durable stainless steel, it also includes electronic soft-touch controls, automatic detergent and rinse aid dosing, thermo-stop rinse control and an integral drain pump, providing reliable performance, excellent hygiene and low running costs.

Key Features

• Integral water softener protects against limescale build-up and improves wash results
• Five wash programmes: 60, 120, 180 seconds, Hygiene and ESave
• Processes up to 60 racks per hour
• 500 x 500mm basket size
• 360mm loading height for tall glasses
• 25-litre wash tank for high-performance washing
• Updated single-button control with digital temperature display
• ESave cycle reduces energy consumption while maintaining wash performance
• Dedicated hygiene programme for improved machine cleanliness
• Reduced rinse water consumption on the 60-second cycle
• Rotating upper and lower wash arms with anti-block jets for complete wash coverage
• Thermo-stop rinse control ensures the correct rinse temperature every cycle
• Double-skinned door reduces heat loss and operating noise
• Integral drain pump fitted as standard
• Built-in detergent and rinse aid dosing equipment
• Automatic self-flushing cycle
• Class A Air Gap for direct mains water connection
• Soft-touch electronic controls with adjustable parameters
• WRAS Approved
• Manufactured in Germany
• Supplied with one 4-division glass rack and one cutlery basket

Specifications

• Model: G504S-10C
• Basket Size: 500 × 500mm
• Maximum Loading Height: 360mm
• Wash Tank Capacity: 25 litres
• Wash Temperature: 50°C
• Rinse Temperature: 67°C
• Water Consumption: 2 litres per cycle
• Rack Capacity: Up to 60 racks per hour
• Water Supply: Hot or cold feed
• Required Water Pressure: 0.8–6 Bar
• Electrical Loading: 4.1kW / 20A (230V/50Hz/1 Phase), switchable to 2.2kW / 13A (230V/50Hz/1 Phase) or 5.9kW / 3 × 16A (400V/50Hz/3 Phase)
• Dimensions (H × W × D): 820 × 576 × 604mm
• Water Softener: Integral
• Country of Manufacture: Germany
• Approval: WRAS Approved
