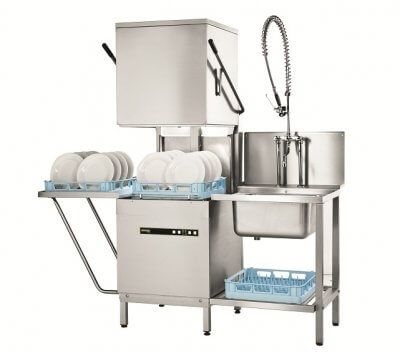

Hobart Ecomax H604 Hood Dishwasher

Hobart Ecomax H604 Hood Dishwasher

The Hobart Ecomax H604 Hood Dishwasher is a high-performance pass-through dishwasher designed to meet the demands of busy commercial kitchens. Offering fast cycle times, low running costs and exceptional cleaning performance, it can process up to 48 racks (approximately 850 plates) per hour. Its market-leading 440mm loading height easily accommodates large cookware and pizza plates, while the unique 4-sided enclosed hood helps retain heat and steam for improved energy efficiency, often eliminating the need for an extraction canopy. Suitable for both straight-through and corner installations, the H604 features intuitive single-button controls, a digital temperature display, integral drain and booster pumps, automatic detergent and rinse aid dosing, and a hygiene programme to deliver reliable, consistent results. Manufactured in Germany from durable stainless steel, it is built for long-lasting performance in demanding catering environments.

Key Features

• Processes up to 48 racks (approximately 850 plates) per hour
• Three wash programmes: 75, 150 and 180 seconds
• 500 × 500mm basket capacity (up to 18 plates per rack)
• 440mm loading height for large items and pizza plates
• Unique 4-sided enclosed hood reduces heat and steam loss, improving energy efficiency
• Suitable for straight-through or corner operation
• Deep-drawn wash tank and easy-clean interior
• Rotating upper and lower rinse arms with anti-block jets for complete wash coverage
• Efficient wash, rinse and filtration systems for consistent cleaning performance
• Dedicated hygiene programme
• Energy-saving standby mode
• Refill indicator for external detergent and rinse aid containers
• Thermo-stop rinse control ensures the correct rinse temperature every cycle
• Integral booster pump for consistent rinse performance
• Built-in detergent and rinse aid dosing equipment
• Integral drain pump fitted as standard
• Class A Air Gap for direct mains water connection
• Simple single-button controls with digital temperature display
• Includes connection cable, water supply hose and drain hose
• Optional rear panel available for island installations
• Supplied with one plate rack and one cutlery basket
• WRAS Approved
• Manufactured in Germany

Specifications

• Basket Size: 500 × 500mm
• Maximum Loading Height: 440mm
• Wash Tank Capacity: 21 litres
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Water Consumption: 2.3 litres per cycle
• Rack Capacity: Up to 48 racks (approximately 850 plates) per hour
• Water Supply: Hot or cold feed (maximum inlet temperature 60°C)
• Required Water Pressure: 0.4–10 Bar
• Electrical Loading: 6.6kW / 3 × 16A (400V/50Hz/3 Phase), switchable to 4.5kW / 25A (230V/50Hz/1 Phase)
• Country of Manufacture: Germany
• Approval: WRAS Approved
