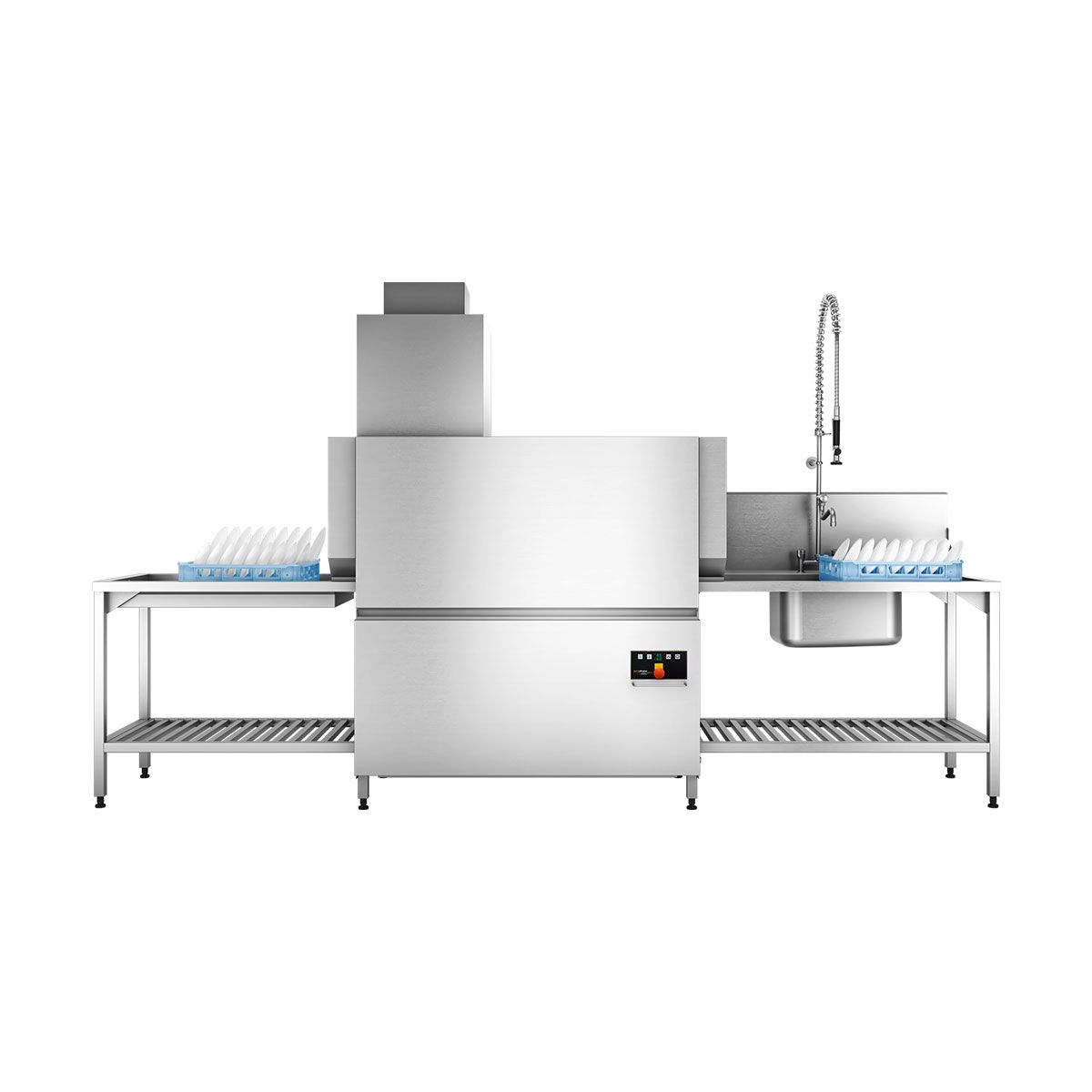

Hobart Ecomax Plus C815A Rack Dishwasher

Hobart Ecomax Plus C815A Rack Conveyor Dishwasher

The Hobart Ecomax Plus C815A is a high-capacity rack conveyor dishwasher designed for large-volume commercial kitchens, hotels, catering operations, and foodservice environments where an undercounter or hood dishwasher cannot meet demand. Capable of washing up to 120 racks per hour (approximately 2,160 plates), it delivers consistent, hygienic cleaning performance while maintaining low running costs and simple operation.

Designed with efficiency and reliability in mind, the C815A features easy-to-use controls, continuous digital temperature monitoring, and a dual rinse system that ensures excellent rinsing results while reducing water consumption. The CONTACT+ 4 + 3 wash arm configuration provides maximum wash coverage, delivering powerful and consistent cleaning across every rack.

Built with robust German engineering, the dishwasher features a fully insulated double-skinned construction, a full-width panoramic door for easy cleaning and maintenance, and an integrated Class A Airgap for safe direct mains water connection. With its compact design, durable components, and optional exhaust heat exchanger for improved energy recovery, the Hobart Ecomax Plus C815A is an efficient solution for high-throughput professional kitchens.

Key Features

• High-capacity rack conveyor dishwasher for large-volume operations
• Washes up to 120 racks per hour (approximately 2,160 plates)
• 500 × 500 mm rack size accommodates 18 plates per rack
• Simple controls for filling, conveyor start, and draining
• Continuous digital display of wash and rinse temperatures
• CONTACT+ 4 + 3 wash arm configuration ensures maximum wash coverage
• Dual rinse system delivers excellent rinsing results while using only 160 litres per hour
• Full-width counterbalanced panoramic door provides easy access for cleaning and maintenance
• Double-skinned insulated construction reduces heat loss and operating noise
• Compact design with low running costs
• Integrated Class A Airgap allows direct mains water connection
• Stainless steel wash arms with anti-block jets for reliable performance
• Full-width strainer and separate soil basket protect the wash system
• Blue-marked removable components make cleaning parts easy to identify
• Rinse booster pump for improved rinse performance
• Electronic soft-touch controls with temperature display
• Optional exhaust heat exchanger can recover up to 11kW of waste energy
• Supplied with one plate rack, one open rack, and one cutlery basket
• Hot or cold soft water connection recommended
• Made in Germany

Specifications

• Model: Ecomax Plus C815A
• Machine Type: Rack conveyor dishwasher
• Capacity: Up to 120 racks per hour (approximately 2,160 plates)
• Basket Size: 500 × 500 mm
• Usable Loading Height: 440 mm
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 105 litres
• Water Consumption: 160 litres per hour
• Water Supply: Hot or cold feed (soft water recommended)
• Required Water Pressure: 1.5–6 bar (maximum inlet temperature 60°C)

• Electrical Supply:

  • Hot Fill: 22.3kW, 400V, 50Hz, three phase (50A)

  • Cold Fill: 29.8kW, 400V, 50Hz, three phase (63A)

• Dimensions (H × W × D): 2150 × 1350 × 775 mm
• Construction: Double-skinned insulated stainless steel
• Water Softener: Not included
• Supplied Accessories: 1 × Plate Rack, 1 × Open Rack, 1 × Cutlery Basket
• Country of Manufacture: Germany
