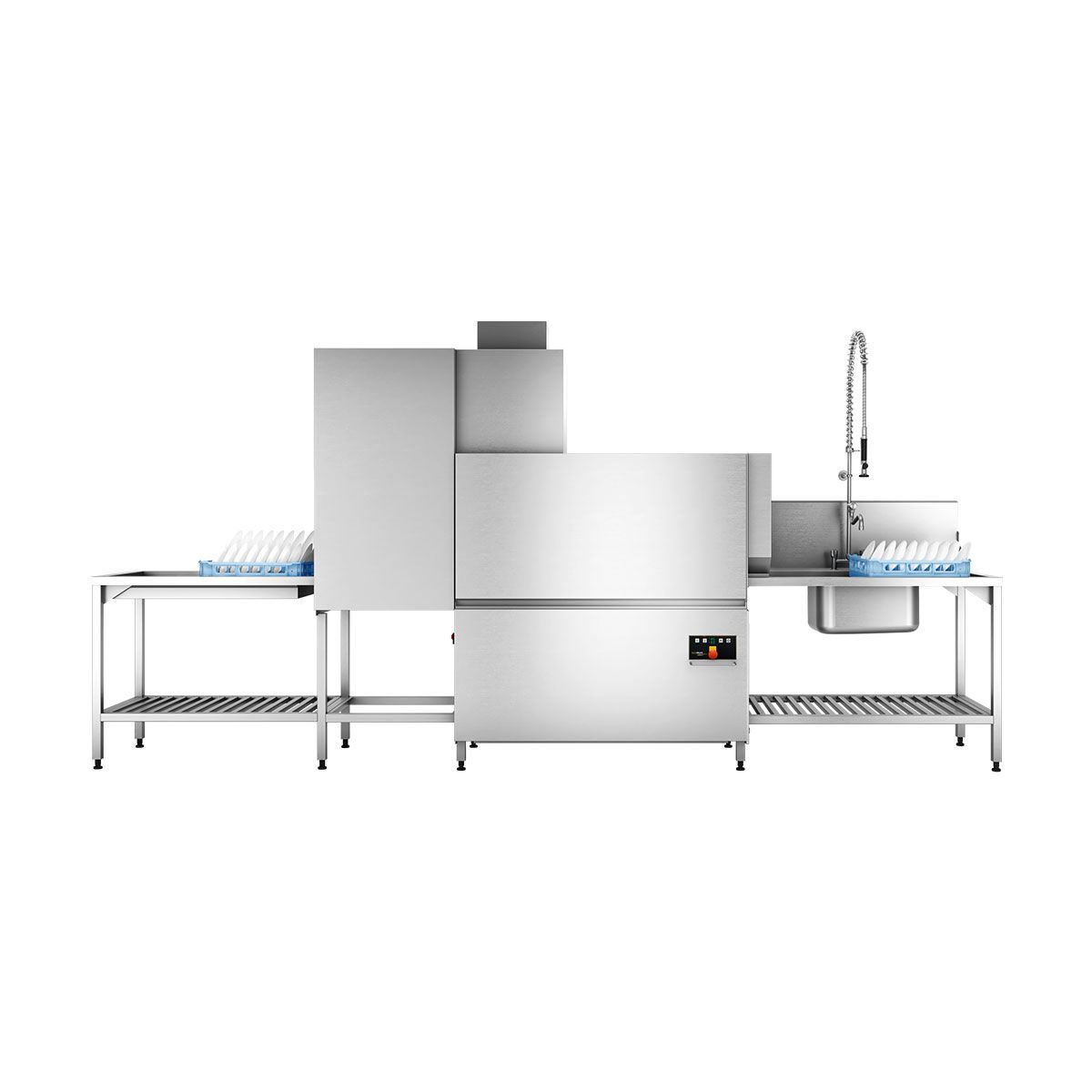

Hobart Ecomax Plus C815EA Rack Dishwasher (Pre Wash)

Hobart Ecomax Plus C815EA Rack Conveyor Dishwasher with Pre-Wash

The Hobart Ecomax Plus C815EA is a high-capacity rack conveyor dishwasher with an integrated pre-wash zone, designed for large-volume commercial kitchens, hotels, catering facilities, and foodservice operations requiring maximum throughput. Delivering up to 150 racks per hour (approximately 2,700 plates), it provides exceptional cleaning performance while maintaining low running costs and efficient operation.

Building on the proven performance of the C815A, the C815EA features a dedicated pre-wash section that removes heavy food soil before the main wash cycle. The removable scraper tray allows quick and efficient removal of food debris, helping to maintain hygiene and improve overall washing efficiency.

Featuring the CONTACT+ 4 + 3 wash arm configuration, dual rinse system, and simple electronic controls, the C815EA ensures consistent cleaning results while allowing operators to easily monitor wash and rinse temperatures. Its double-skinned insulated construction reduces heat loss, while the integrated Class A Airgap ensures safe direct mains water connection.

Designed with reliability and economy in mind, the C815EA includes a rinse booster pump, robust stainless steel wash components, and an optional exhaust heat exchanger capable of recovering up to 11kW of waste energy. With durable German engineering and easy maintenance access, it is an ideal solution for demanding high-volume kitchens.

Key Features

• High-capacity rack conveyor dishwasher with integrated pre-wash zone
• Washes up to 150 racks per hour (approximately 2,700 plates)
• 500 × 500 mm rack size accommodates 18 plates per rack
• Dedicated pre-wash zone removes heavy food soil before the main wash cycle
• Removable scraper tray allows fast and efficient food waste removal
• CONTACT+ 4 + 3 wash arm configuration ensures maximum wash coverage
• Dual rinse system delivers excellent rinsing results using 180 litres per hour
• 440 mm loading height accommodates larger items
• Simple electronic controls for filling, conveyor operation, and draining
• Continuous digital display of wash and rinse temperatures
• Full-width counterbalanced panoramic door provides easy cleaning and maintenance access
• Double-skinned insulated construction reduces heat loss and noise
• Integrated Class A Airgap allows direct mains water connection
• Stainless steel wash pump housing and impellor provide long-term reliability
• Full-width strainer with separate soil basket protects the wash system
• Rinse booster pump improves rinse performance
• Optional exhaust heat exchanger can recover up to 11kW of waste energy
• Hot or cold soft water connection recommended
• Electronic soft-touch controls with temperature display
• Low running costs and robust German construction
• Made in Germany

Specifications

• Model: Ecomax Plus C815EA
• Machine Type: Rack conveyor dishwasher with pre-wash
• Capacity: Up to 150 racks per hour (approximately 2,700 plates)
• Basket Size: 500 × 500 mm
• Usable Loading Height: 440 mm
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 105 litres
• Water Consumption: 180 litres per hour
• Water Supply: Hot or cold feed (soft water recommended)
• Required Water Pressure: 1.5–6 bar (maximum inlet temperature 60°C)

• Electrical Supply:

  • Hot Fill: 22.3kW, 400V, 50Hz, three phase (50A)

  • Cold Fill: 29.8kW, 400V, 50Hz, three phase (63A)

• Dimensions (H × W × D): 2150 × 1850 × 775 mm
• Construction: Double-skinned insulated stainless steel
• Water Softener: Not included
• Pre-Wash Zone: Integrated with removable scraper tray
• Country of Manufacture: Germany
