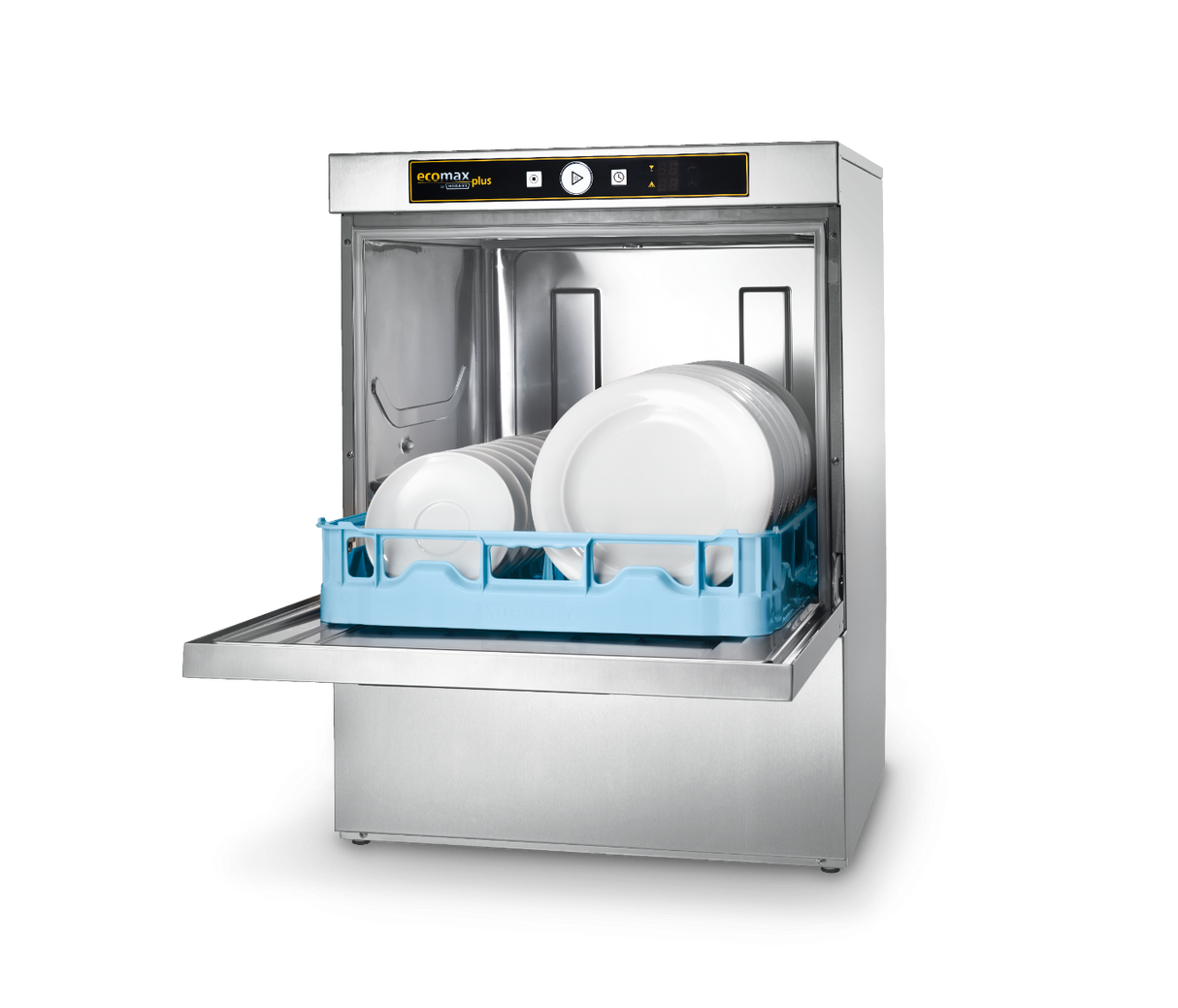

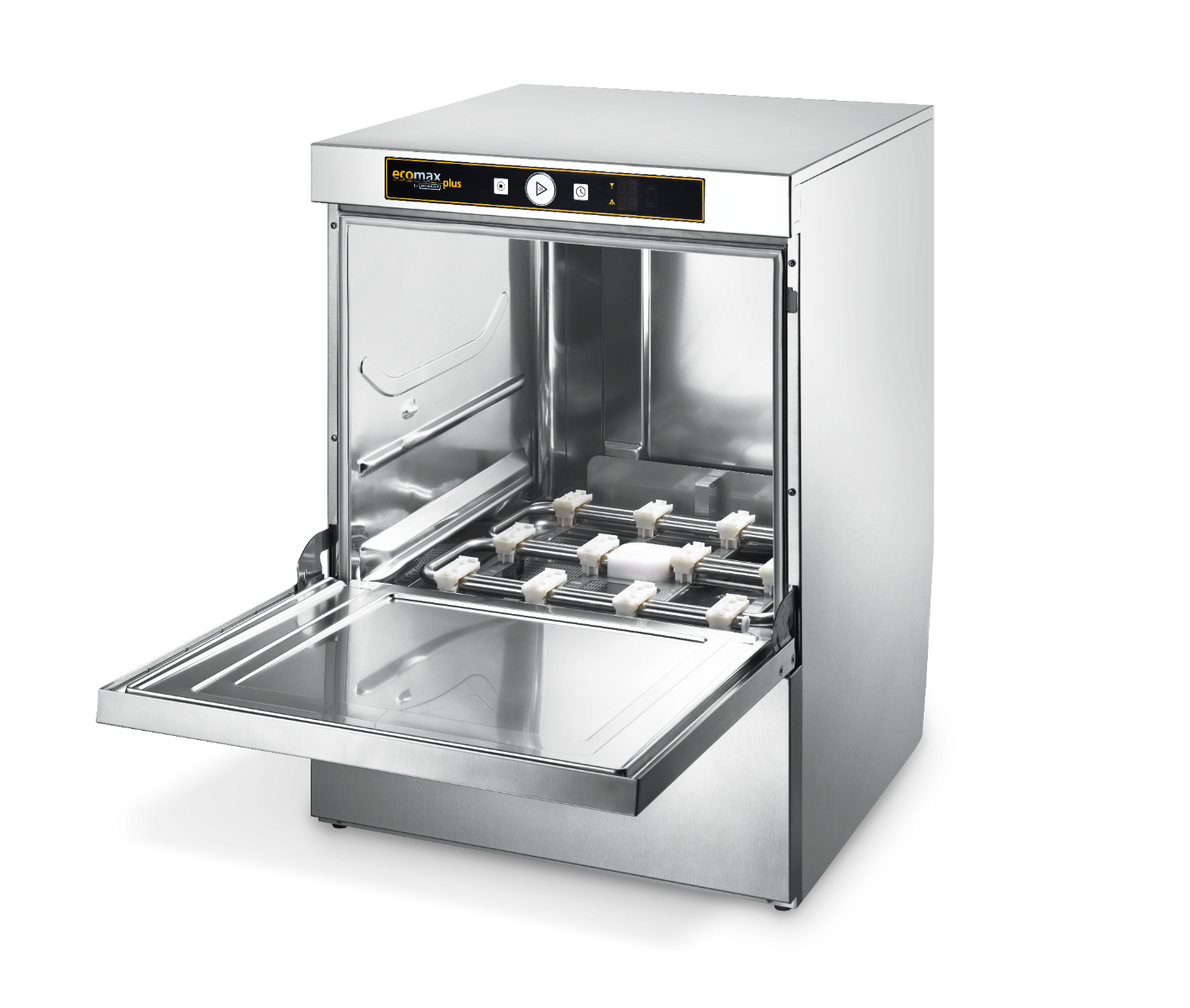

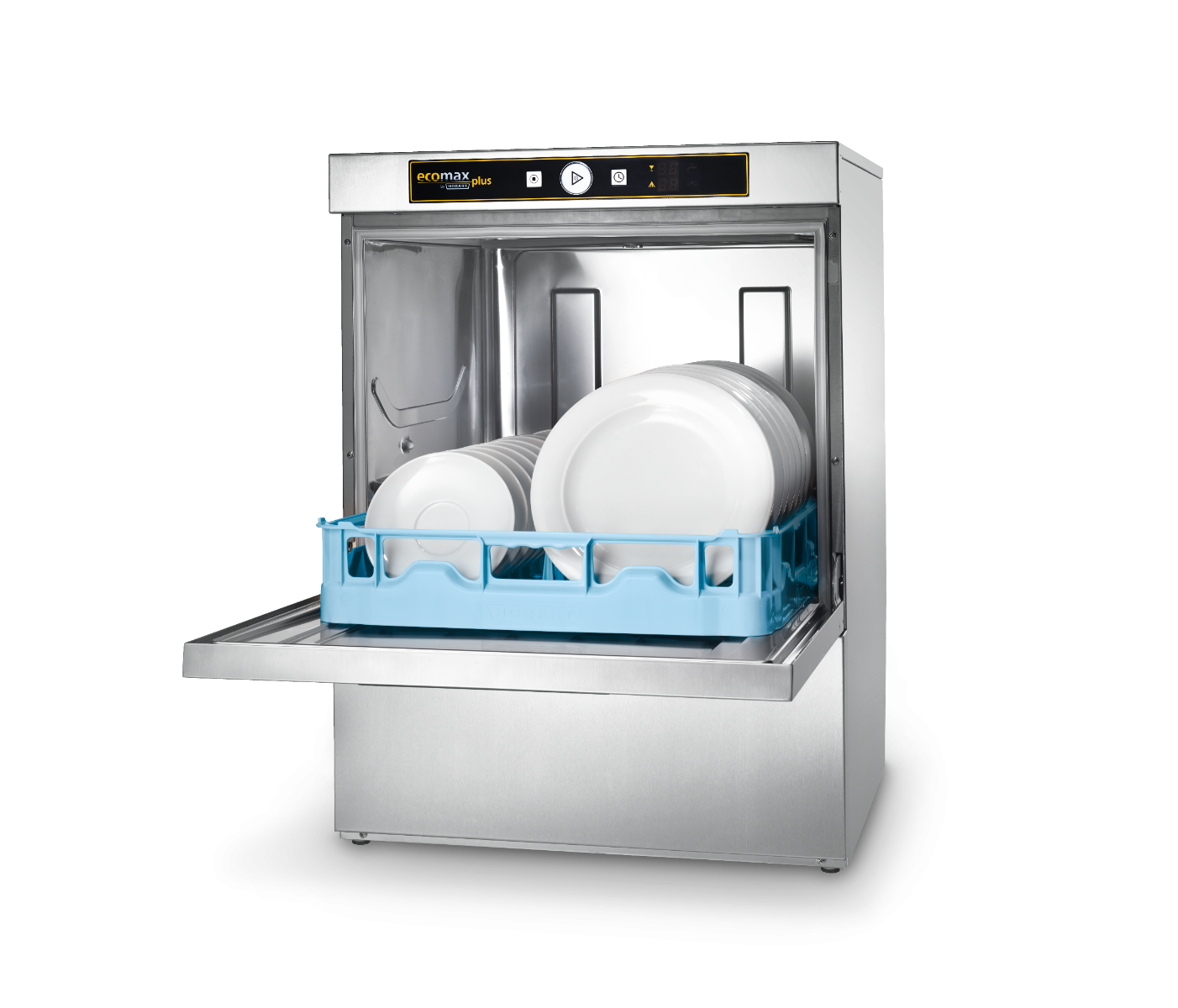

Hobart Ecomax Plus F515 Undercounter Dishwasher

Hobart Ecomax Plus F515 Undercounter Dishwasher

The Hobart Ecomax Plus F515 is a high-performance undercounter commercial dishwasher designed to deliver outstanding cleaning results in busy restaurants, cafés, hotels, pubs, and catering establishments. With the capacity to wash up to 60 racks per hour, it combines powerful cleaning performance with low water, energy, and chemical consumption to maximise efficiency and reduce operating costs.

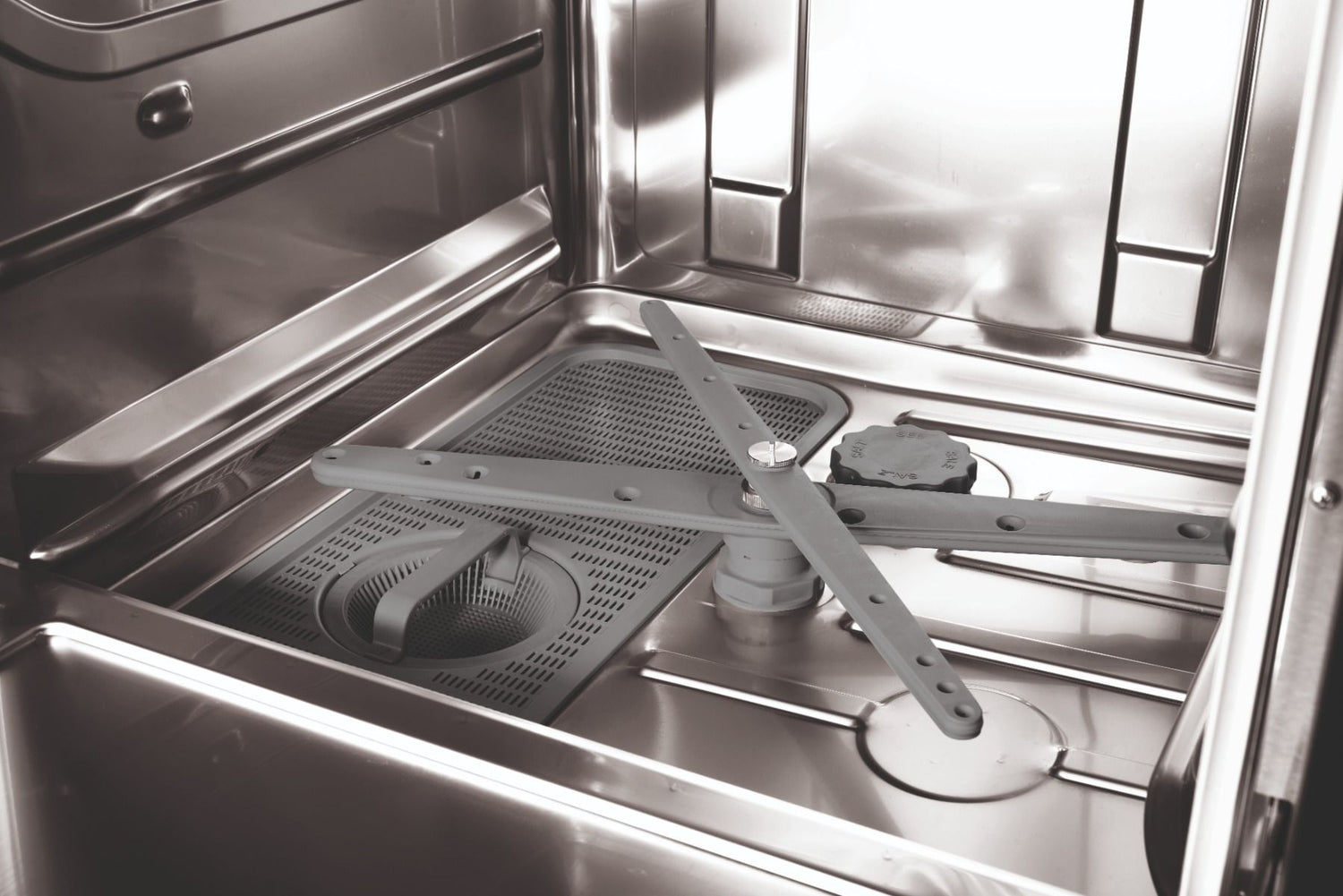

Featuring an upgraded single-button control panel with a digital temperature display, the F515 is simple to operate, while the integrated USB interface allows for easy servicing, diagnostics, and software updates. The powerful wash pump, combined with separate upper and lower wash arms and advanced VECTOR wide-angle wash jets, ensures complete wash coverage for consistently excellent cleaning results.

The dishwasher incorporates SMARTRONIC controls, the INTENSIV three-stage wash system with pre-wash function, and ACCURINSE technology to remove more food soil while reducing water, detergent, rinse aid, and energy consumption. Its double-skinned construction minimises heat loss and operating noise, while Ecotherm maintains the optimum wash temperature for superior detergent performance.

Supplied with an integral drain pump, automatic detergent and rinse aid dosing equipment, and a hygienic self-flushing drain cycle, the F515 is easy to maintain and highly economical to run. With six wash programmes, including Hygiene, ESave, and a dedicated Cutlery cycle, it offers the flexibility required for demanding commercial kitchens.

Key Features

• Washes up to 60 racks per hour
• Six wash programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• SMARTRONIC intelligent electronic controls
• Single-button operation with digital temperature display
• Integrated USB interface for servicing and diagnostics
• Powerful 0.6kW wash pump with separate upper and lower wash arms
• VECTOR wide-angle wash jets for complete wash coverage
• INTENSIV three-stage wash system with pre-wash function
• ACCURINSE technology reduces water, energy, detergent and rinse aid consumption
• Ecotherm maintains wash temperature above 63°C for optimum detergent performance
• Double-skinned construction reduces heat loss and operating noise
• Automatic hygienic self-flushing drain cycle
• Integral detergent and rinse aid dosing equipment
• Two-stage strainer and filter system protects the wash pump

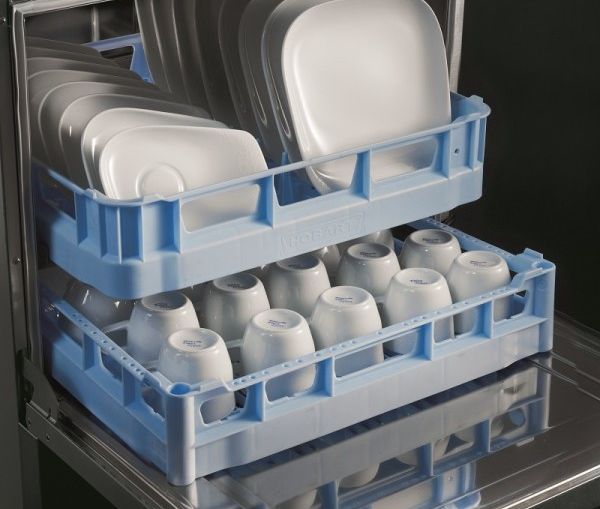

• 2-in-1 double racking feature increases capacity and flexibility
• Built-in drain pump
• Supplied with one plate rack, one cup rack and one cutlery basket
• Class A Airgap for direct mains water connection
• WRAS Approved
• Made in Germany

Specifications

• Model: Eco+F515-11D
• Basket Size: 500 × 500 mm
• Loading Height: 425 mm
• Capacity: Up to 60 racks per hour (18 plates per rack)
• Wash Programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 10.6 litres
• Water Consumption: 2 litres per cycle
• Water Supply: Hot or cold feed (maximum inlet temperature 60°C)
• Required Water Pressure: 0.6–6 bar
• Electrical Supply: 6.7kW, 3 × 16A, 400V, 50Hz, three phase
• Alternative Electrical Options: 4.7kW, 25A, 230V, single phase or 2.6kW, 13A, 230V, single phase
• Dimensions (H × W × D): 825 × 600 × 600 mm
• Construction: Double-skinned stainless steel
• Drain Pump: Integral
• Supplied Accessories: 1 × Plate Rack, 1 × Cup Rack, 1 × Cutlery Basket
• Approvals: WRAS Approved
• Country of Manufacture: Germany
