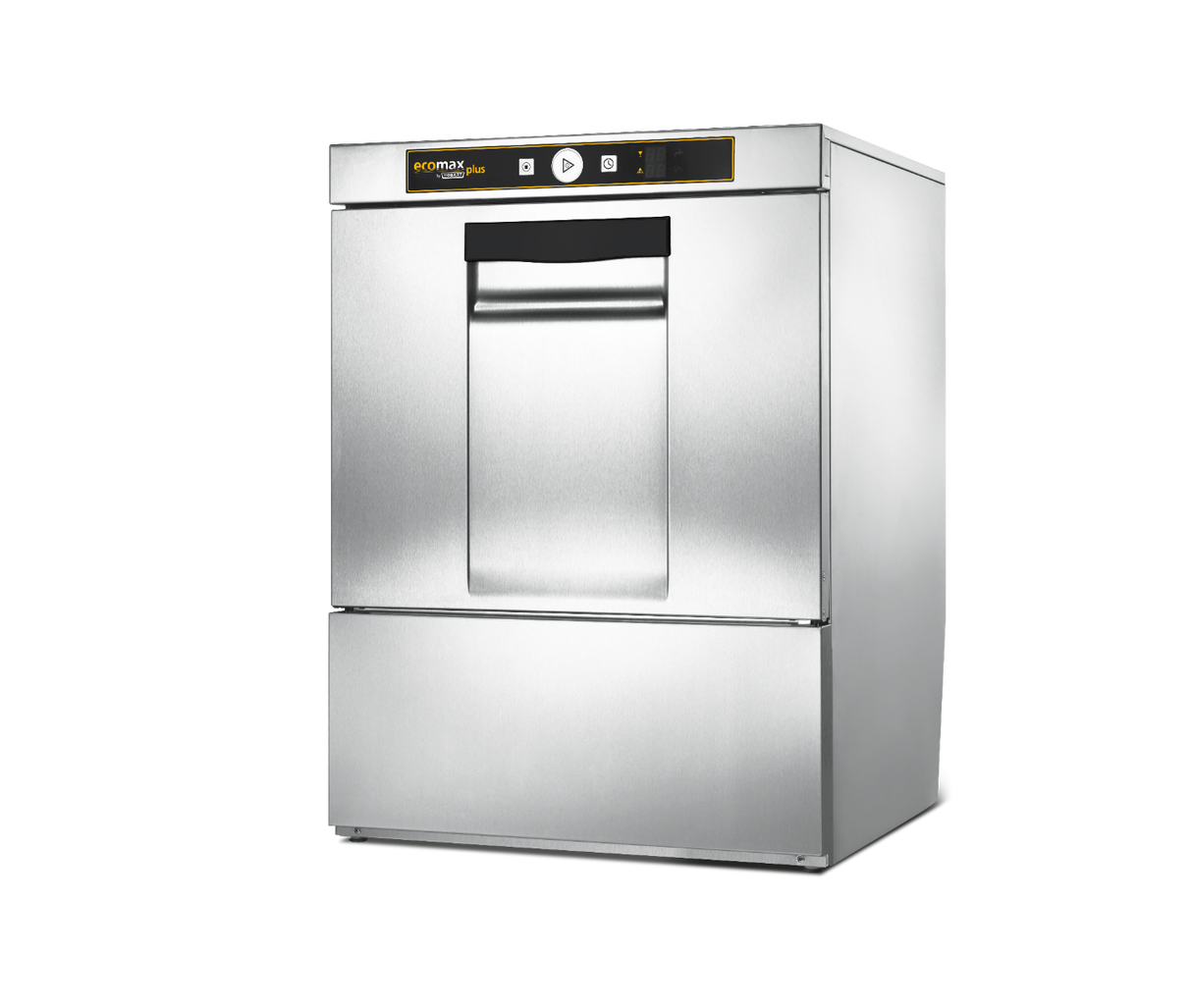

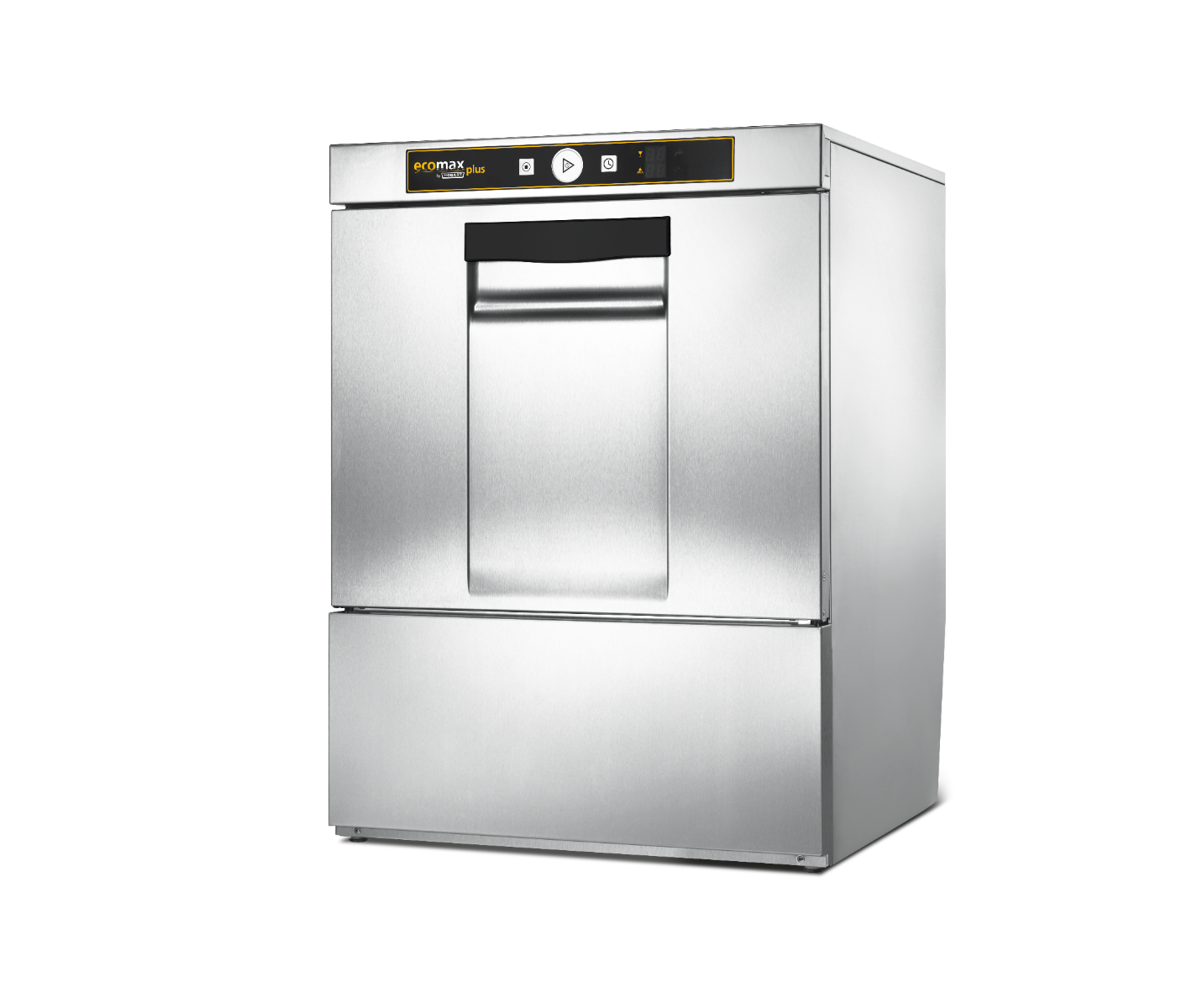

Hobart Ecomax Plus F515L Undercounter Dishwasher

Hobart Ecomax Plus F515L Undercounter Dishwasher

The Hobart Ecomax Plus F515L is a high-performance undercounter commercial dishwasher designed for busy restaurants, cafés, hotels, pubs, and catering kitchens. Built to deliver exceptional cleaning performance while minimising water, energy, and detergent consumption, it is capable of washing up to 60 racks per hour. The extra-deep wash chamber makes it ideal for cleaning 600 × 400 mm bakery trays and EN containers, offering added versatility for professional foodservice operations.

The upgraded single-button control panel with a digital temperature display provides simple, intuitive operation, while the integrated USB interface allows for easy servicing, diagnostics, and software updates. Featuring SMARTRONIC controls, the INTENSIV three-stage wash system with pre-wash function, ACCURINSE technology, and advanced VECTOR wide-angle wash jets, the F515L delivers outstanding cleaning performance while reducing operating costs.

Its double-skinned cabinet minimises heat loss and operating noise, while Ecotherm maintains the optimum wash temperature for superior detergent performance. An integral drain pump, automatic detergent and rinse aid dosing equipment, and a hygienic self-flushing drain cycle are all supplied as standard, making the F515L easy to operate and maintain in demanding commercial kitchens.

Key Features

• Washes up to 60 racks per hour

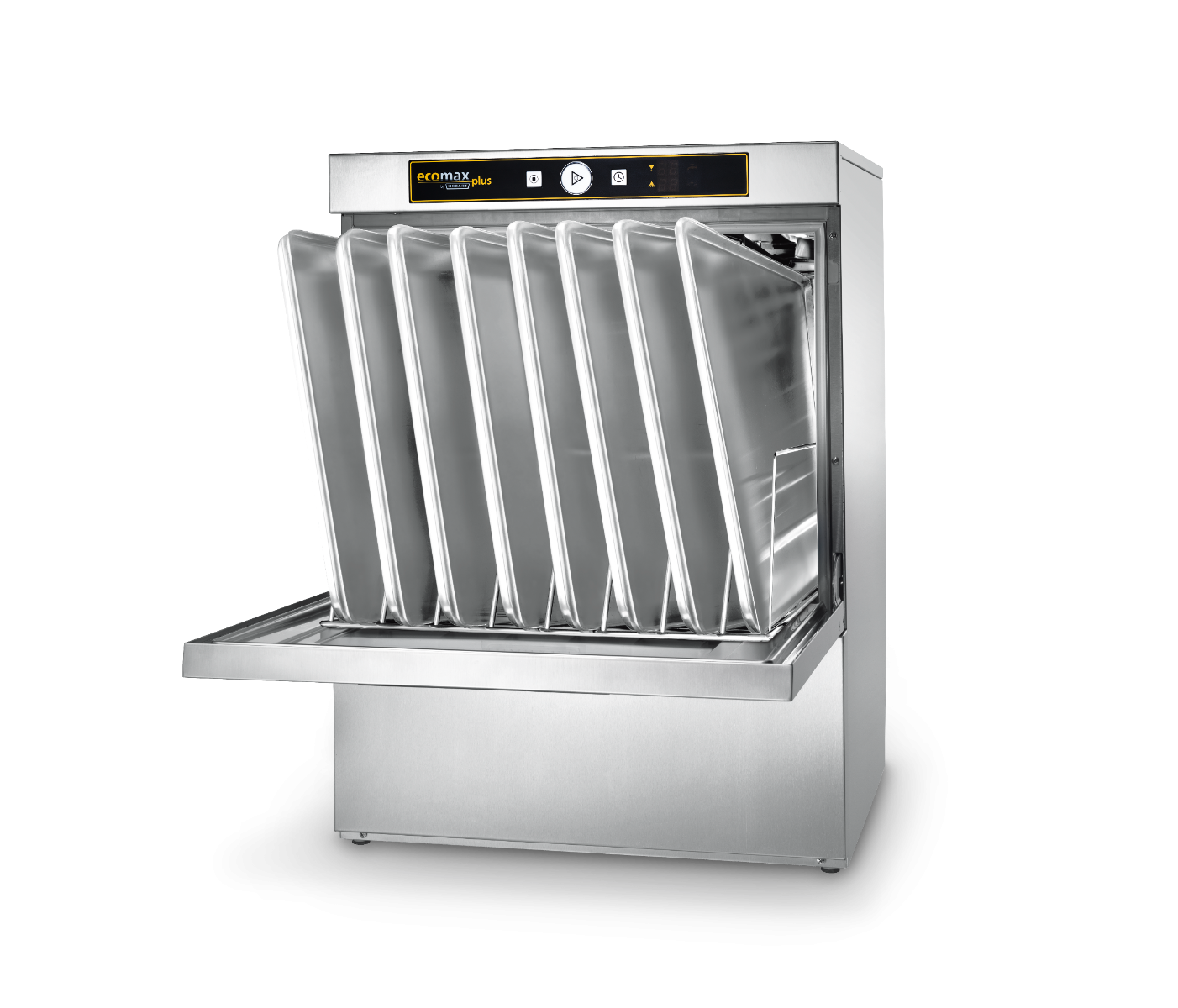

• Extra-deep wash chamber for 600 × 400 mm trays and EN containers
• Six wash programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• SMARTRONIC intelligent electronic controls
• Single-button operation with digital temperature display
• Integrated USB interface for servicing and diagnostics
• Powerful 0.6kW wash pump with separate upper and lower wash arms
• VECTOR wide-angle wash jets provide complete wash coverage
• INTENSIV three-stage wash system with pre-wash function
• ACCURINSE technology reduces water, energy, detergent and rinse aid consumption
• Ecotherm maintains wash temperature above 63°C for optimum detergent performance
• Double-skinned construction reduces heat loss and operating noise
• Automatic hygienic self-flushing drain cycle
• Integral detergent and rinse aid dosing equipment
• Two-stage strainer and filter system protects the wash pump
• Door damping control for improved durability
• 2-in-1 double racking feature increases capacity and flexibility
• Built-in drain pump
• Supplied with one plate rack, one cup rack and one cutlery basket
• Optional external water softener available
• Class A Airgap for direct mains water connection
• WRAS Approved
• Made in Germany

Specifications

• Model: Eco+F515L-11D
• Basket Size: 500 × 500 mm
• Loading Height: 425 mm
• Capacity: Up to 60 racks per hour (18 plates per rack)
• Wash Chamber: Extra deep for 600 × 400 mm trays and EN containers
• Wash Programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 10.6 litres
• Water Consumption: 2 litres per cycle
• Water Supply: Hot or cold feed (maximum inlet temperature 60°C)
• Required Water Pressure: 0.6–6 bar
• Electrical Supply: 6.7kW, 3 × 13A, 400V, 50Hz, three phase
• Alternative Electrical Options: 5.6kW, 25A, 230V, single phase or 2.6kW, 13A, 230V, single phase
• Dimensions (H × W × D): 825 × 600 × 640 mm
• Construction: Double-skinned stainless steel
• Drain Pump: Integral
• Water Softener: Optional external softener (not included)
• Supplied Accessories: 1 × Plate Rack, 1 × Cup Rack, 1 × Cutlery Basket
• Approvals: WRAS Approved
• Country of Manufacture: Germany
