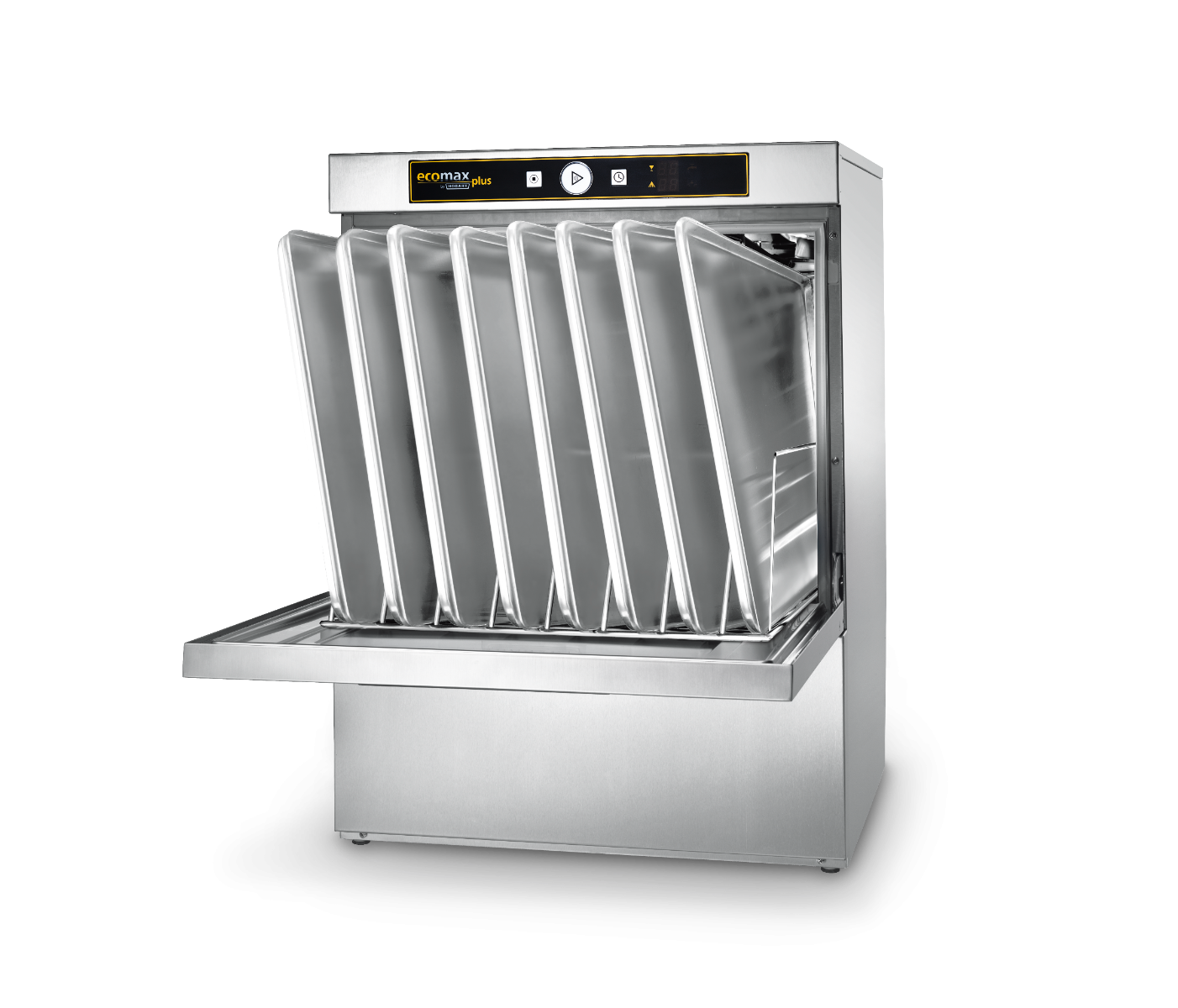

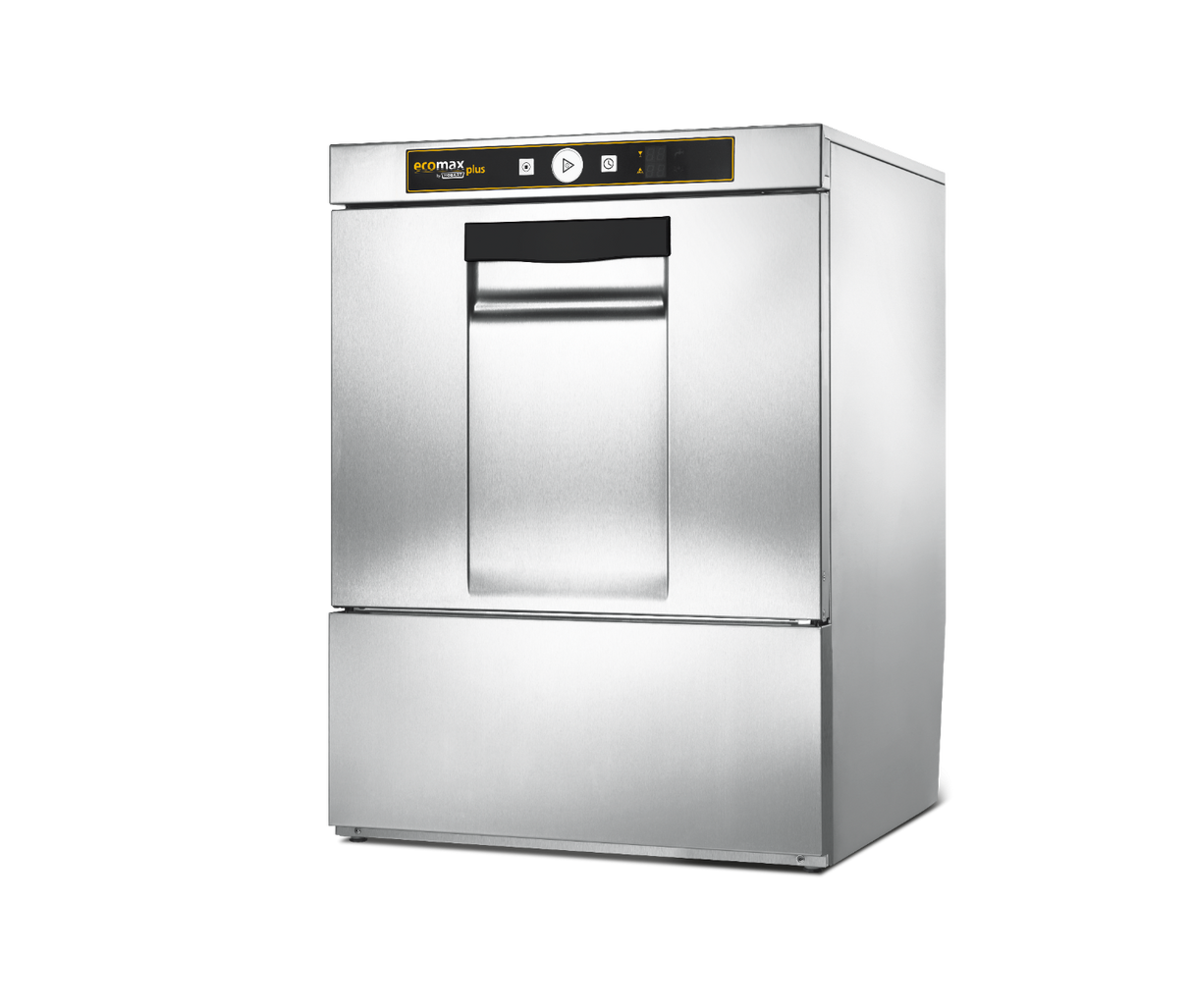

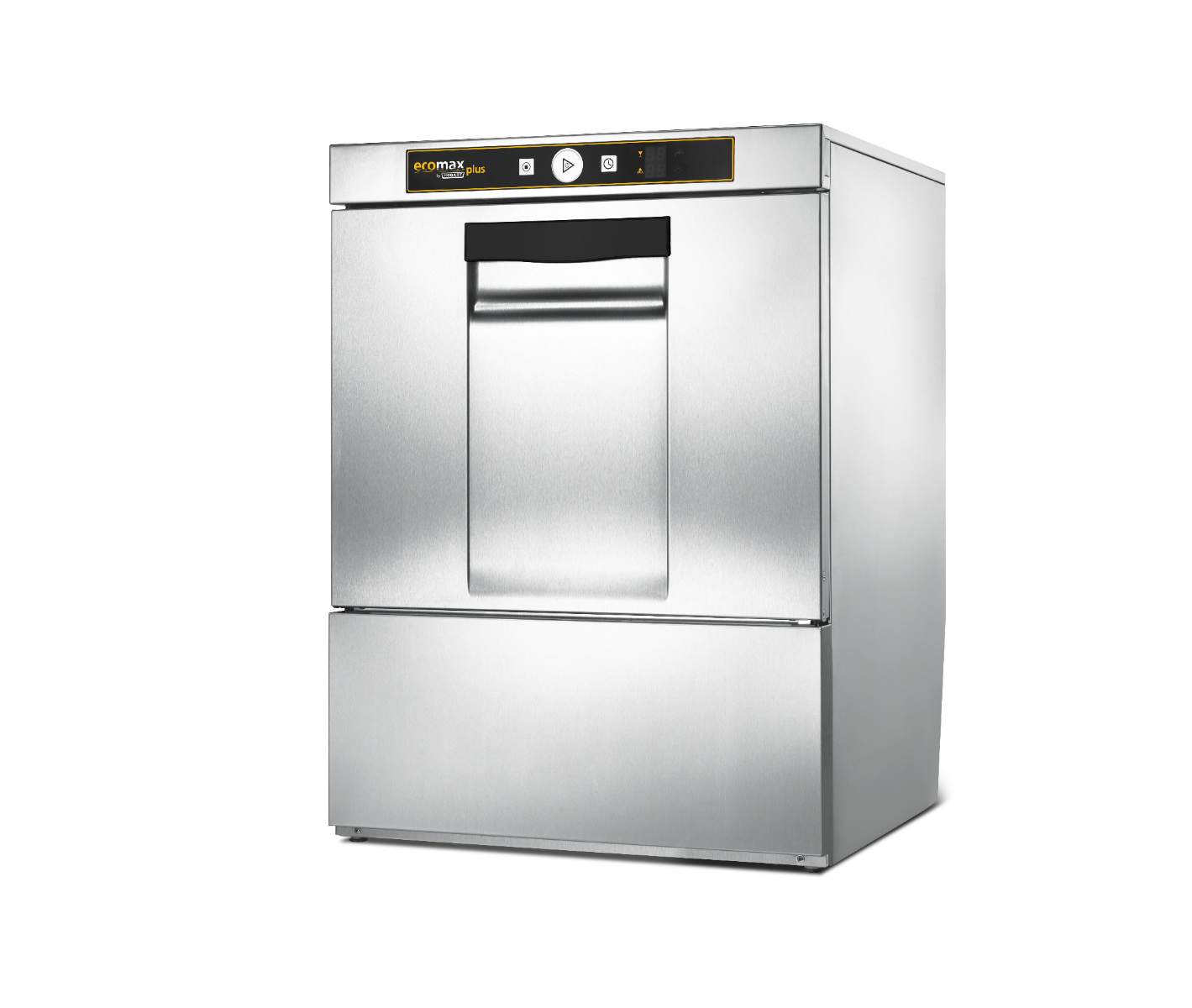

Hobart Ecomax Plus F515LS Large Chamber Undercounter Dishwasher (In-Built Softener)

Hobart Ecomax Plus F515LS Large Chamber Undercounter Dishwasher with Built-In Water Softener

The Hobart Ecomax Plus F515LS is a high-performance undercounter commercial dishwasher designed for busy restaurants, bakeries, hotels, cafés, and catering kitchens. Combining the versatility of an extra-deep wash chamber with an integral water softener, it is ideal for washing 600 × 400 mm bakery trays, EN containers, crockery, and utensils, while protecting the machine from limescale build-up in hard water areas.

Capable of washing up to 60 racks per hour, the F515LS delivers powerful cleaning performance while keeping water, energy, and chemical consumption to a minimum. The upgraded single-button control panel with digital temperature display provides simple operation, while the integrated USB interface enables easy servicing, diagnostics, and software updates.

The dishwasher features SMARTRONIC controls, the INTENSIV three-stage wash system with pre-wash function, ACCURINSE technology, and advanced VECTOR wide-angle wash jets for exceptional cleaning results with reduced operating costs. Its double-skinned insulated cabinet and door minimise heat loss and operating noise, while Ecotherm maintains the optimum wash temperature for superior detergent performance.

Supplied with an integral drain pump, automatic detergent and rinse aid dosing equipment, and a hygienic self-flushing drain cycle, the F515LS is built for reliable day-to-day performance in demanding commercial kitchens. The built-in water softener further enhances wash quality and helps extend the life of the machine by reducing harmful limescale deposits.

Key Features

• Integral water softener helps prevent limescale build-up
• Washes up to 60 racks per hour
• Extra-deep wash chamber for 600 × 400 mm trays and EN containers
• Six wash programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• SMARTRONIC intelligent electronic controls
• Single-button operation with digital temperature display
• Integrated USB interface for servicing and diagnostics
• Powerful 0.6kW wash pump with separate upper and lower wash arms
• VECTOR wide-angle wash jets provide complete wash coverage
• INTENSIV three-stage wash system with pre-wash function
• ACCURINSE technology reduces water, energy, detergent and rinse aid consumption
• Thermostop rinse control ensures the correct sanitising rinse temperature
• Ecotherm maintains wash temperature above 63°C for optimum detergent performance
• Double-skinned insulated construction reduces heat loss and operating noise
• Automatic hygienic self-flushing drain cycle
• Integral detergent and rinse aid dosing equipment
• Two-stage strainer and filter system protects the wash pump
• Door damping control for improved durability
• 2-in-1 double racking feature increases capacity and flexibility
• Built-in drain pump
• Supplied with one plate rack, one cup rack and one cutlery basket
• Class A Airgap for direct mains water connection
• Made in Germany

Specifications

• Model: Eco+F515LS-11D
• Basket Size: 500 × 500 mm
• Loading Height: 425 mm
• Capacity: Up to 60 racks per hour (18 plates per rack)
• Wash Chamber: Extra deep for 600 × 400 mm trays and EN containers
• Wash Programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 10.6 litres
• Water Consumption: 2 litres per cycle
• Water Supply: Hot or cold feed (maximum inlet temperature 60°C)
• Required Water Pressure: 0.6–6 bar
• Electrical Supply: 7.7kW, 3 × 16A, 400V, 50Hz, three phase
• Alternative Electrical Options: 2.8kW, 13A, 230V, single phase or 4.7kW, 20A, 230V, single phase
• Dimensions (H × W × D): 825 × 600 × 640 mm
• Construction: Double-skinned insulated stainless steel
• Drain Pump: Integral
• Water Softener: Integral
• Supplied Accessories: 1 × Plate Rack, 1 × Cup Rack, 1 × Cutlery Basket
• Country of Manufacture: Germany
