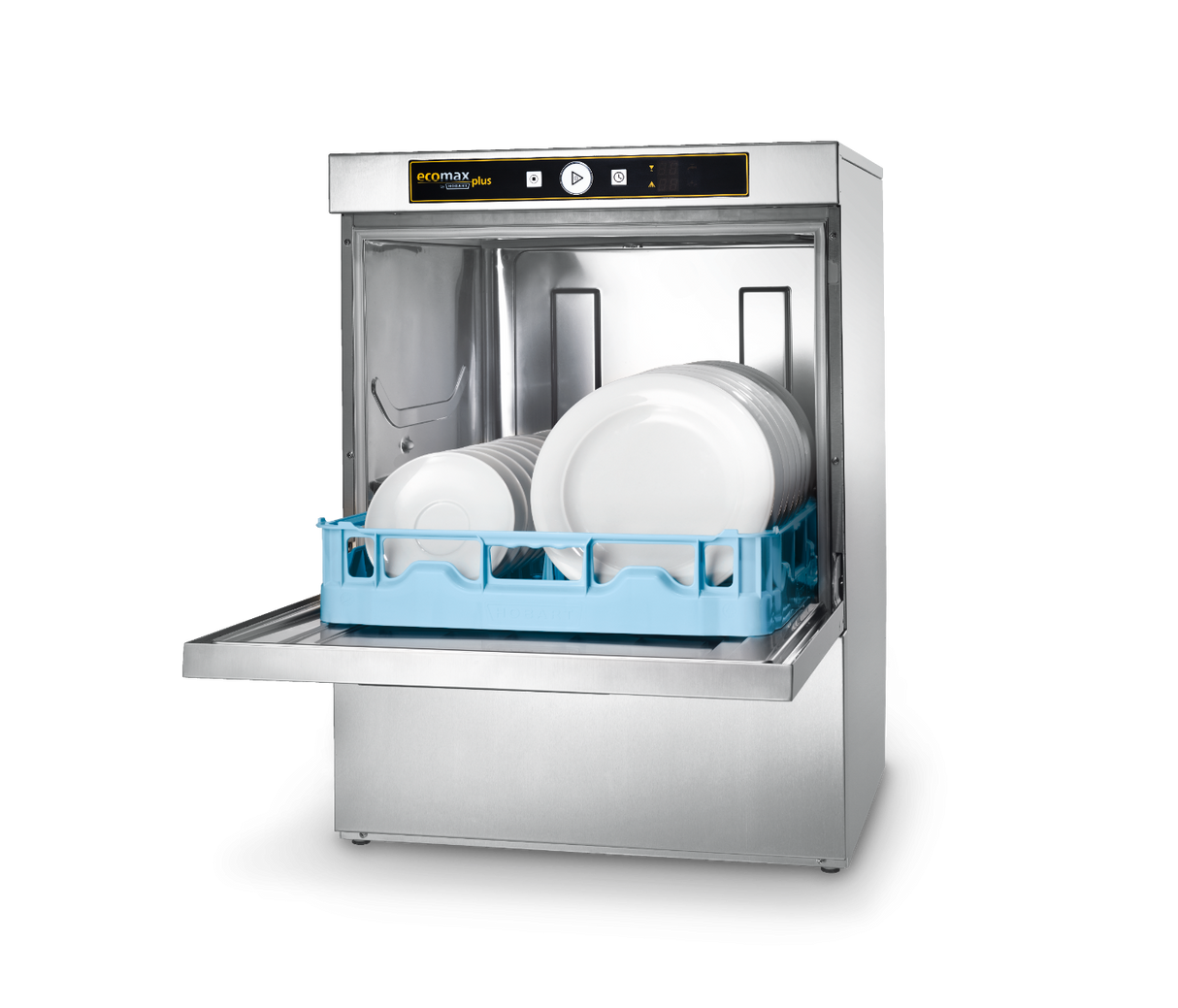

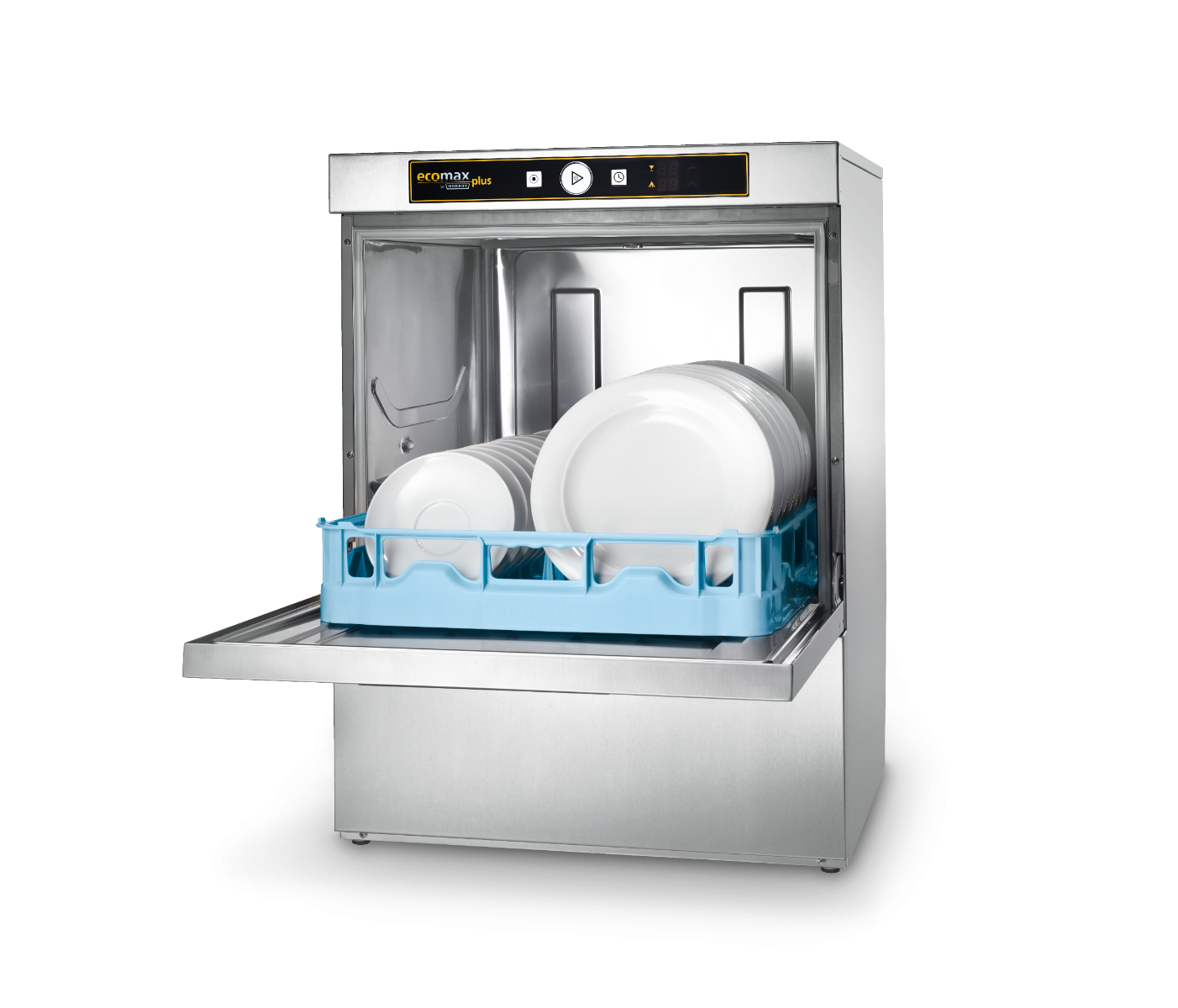

Hobart Ecomax Plus F515S Undercounter Dishwasher (In-Built Softener)

Hobart Ecomax Plus F515S Undercounter Dishwasher with Built-In Water Softener

The Hobart Ecomax Plus F515S is a high-performance undercounter commercial dishwasher designed for busy restaurants, cafés, hotels, pubs, and catering kitchens. Featuring the same advanced performance as the F515, this model includes an integral water softener, making it ideal for hard water areas by reducing limescale build-up, improving wash quality, and extending the machine's service life.

Capable of washing up to 60 racks per hour, the F515S combines powerful cleaning performance with low water, energy, and chemical consumption. The upgraded single-button control panel with a digital temperature display makes operation simple, while the integrated USB interface allows for easy servicing, diagnostics, and software updates.

The dishwasher features SMARTRONIC controls, the INTENSIV three-stage wash system with pre-wash function, ACCURINSE technology, and advanced VECTOR wide-angle wash jets to deliver exceptional cleaning performance while reducing operating costs. Its double-skinned construction minimises heat loss and operating noise, and Ecotherm maintains the optimum wash temperature for maximum detergent performance.

Supplied with an integral drain pump, automatic detergent and rinse aid dosing equipment, and a hygienic self-flushing drain cycle, the F515S is easy to maintain and built for demanding commercial kitchens. With six wash programmes, including Hygiene, ESave, and a dedicated Cutlery cycle, it provides outstanding flexibility and efficiency.

Key Features

• Integral water softener helps prevent limescale build-up
• Washes up to 60 racks per hour
• Six wash programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• SMARTRONIC intelligent electronic controls

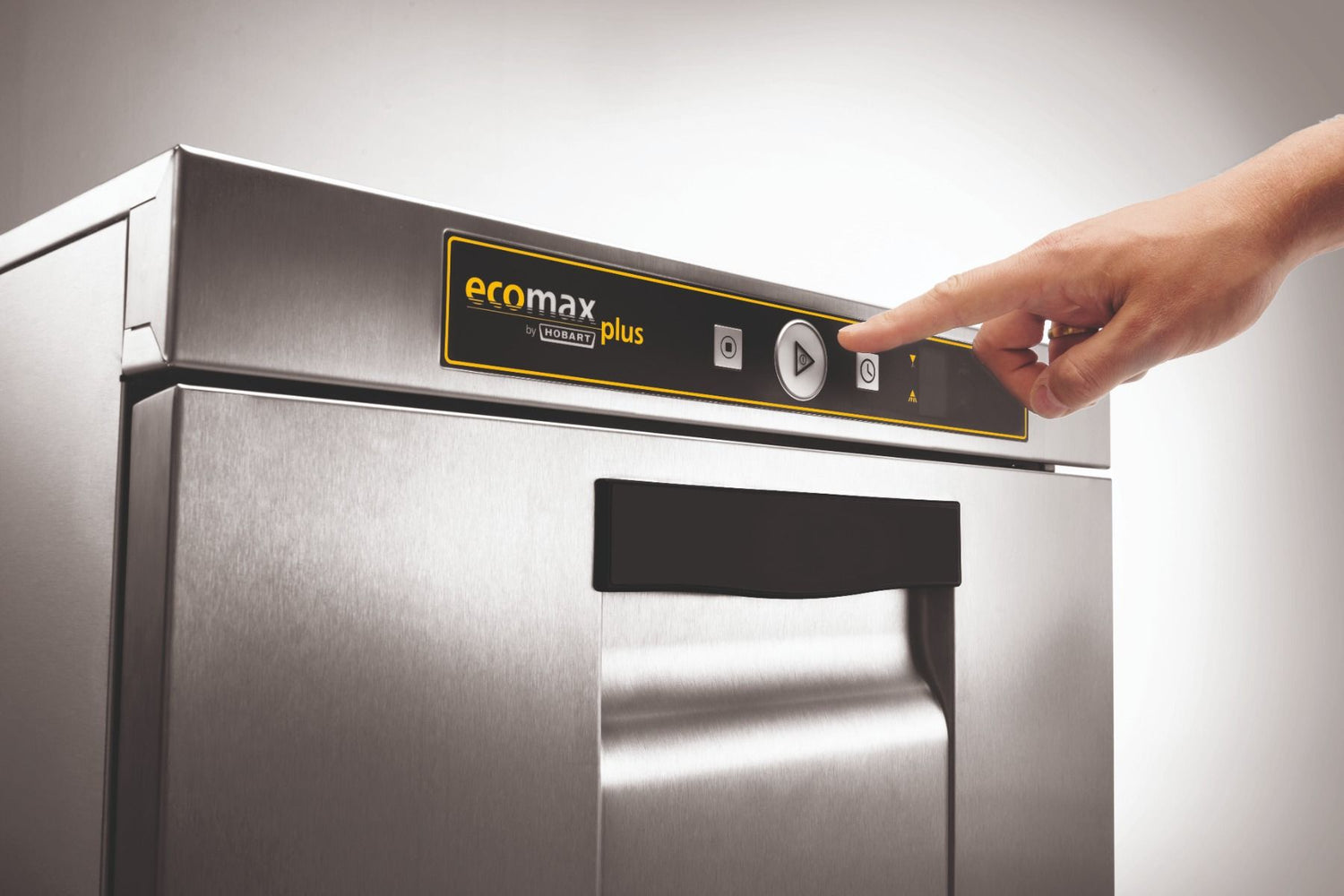

• Single-button operation with digital temperature display
• Integrated USB interface for servicing and diagnostics

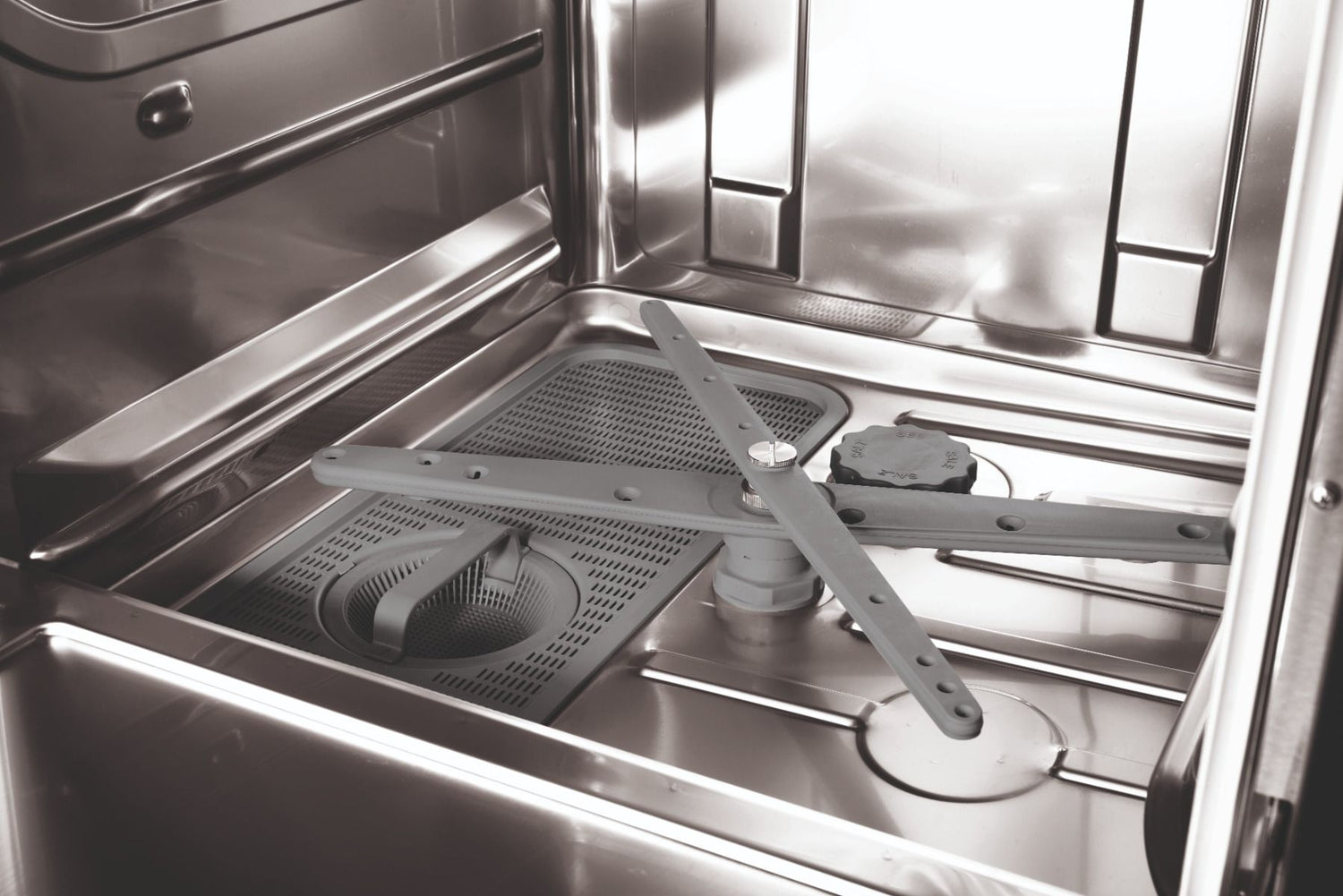

• Powerful 0.6kW wash pump with separate upper and lower wash arms

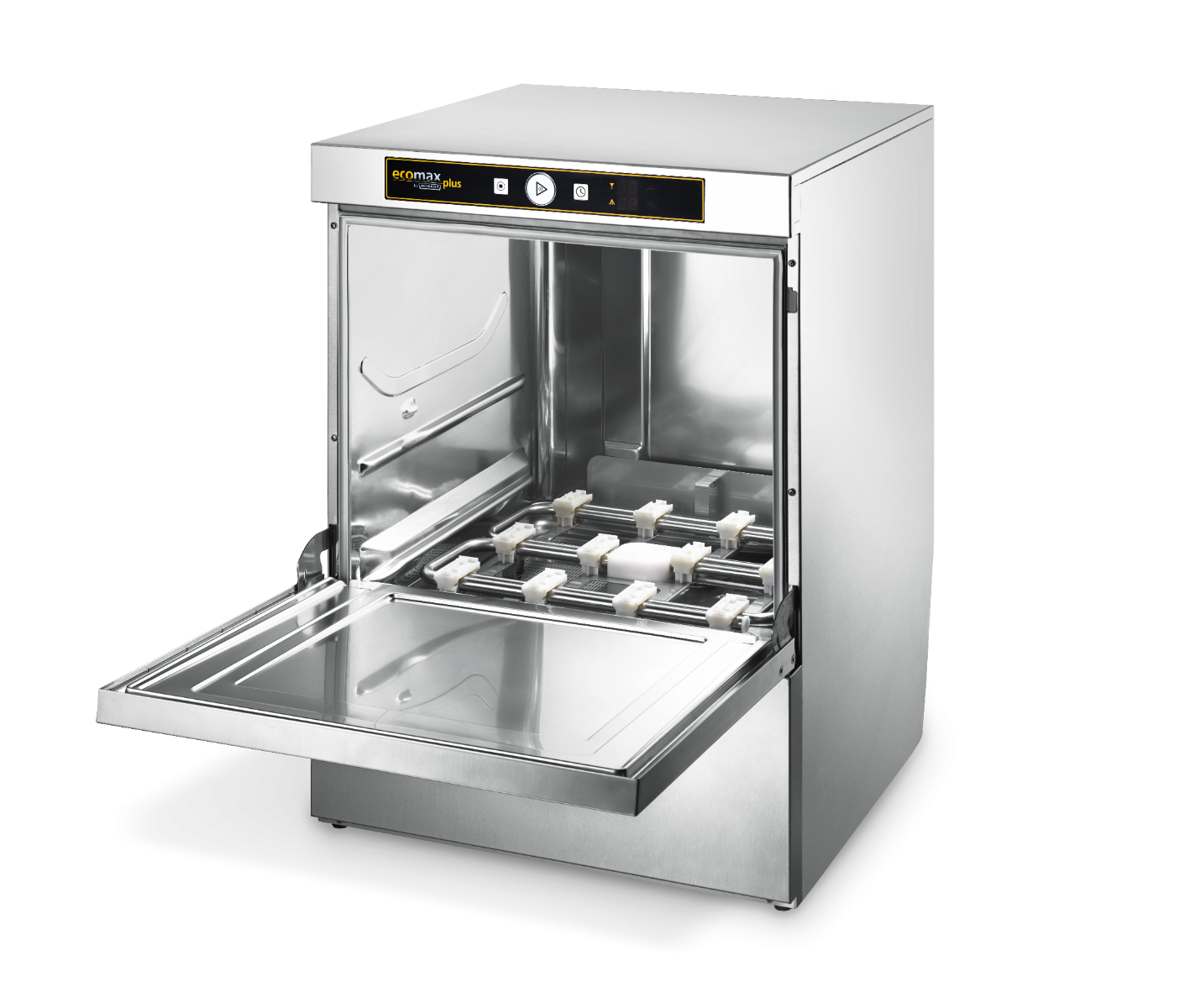

• VECTOR wide-angle wash jets provide complete wash coverage
• INTENSIV three-stage wash system with pre-wash function
• ACCURINSE technology reduces water, energy, detergent and rinse aid consumption
• Thermostop rinse control ensures the correct sanitising rinse temperature
• Ecotherm maintains wash temperature above 63°C for optimum detergent performance
• Double-skinned construction reduces heat loss and operating noise
• Automatic hygienic self-flushing drain cycle
• Integral detergent and rinse aid dosing equipment
• Two-stage strainer and filter system protects the wash pump

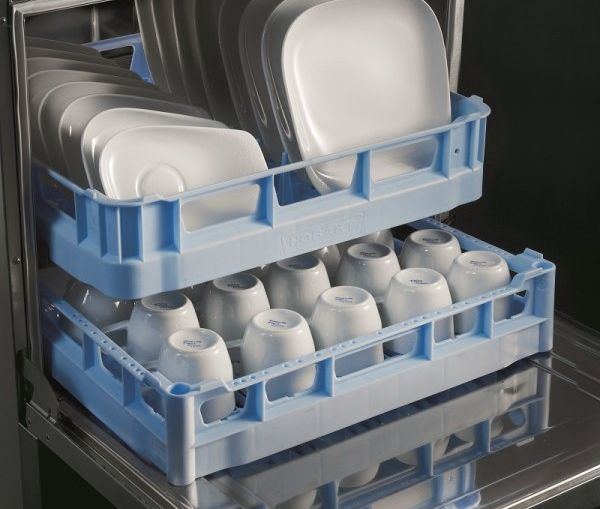

• 2-in-1 double racking feature increases capacity and flexibility
• Built-in drain pump
• Supplied with one plate rack, one cup rack and one cutlery basket
• Class A Airgap for direct mains water connection
• Made in Germany

Specifications

• Model: Eco+F515S-10D
• Basket Size: 500 × 500 mm
• Loading Height: 425 mm
• Capacity: Up to 60 racks per hour (18 plates per rack)
• Wash Programmes: 60s, 120s, 180s, Hygiene, ESave and Cutlery (360s)
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 10.6 litres
• Water Consumption: 2 litres per cycle
• Water Supply: Hot or cold feed (maximum inlet temperature 60°C)
• Required Water Pressure: 0.6–6 bar
• Electrical Supply: 4.7kW, 25A, 230V, 50Hz, single phase
• Alternative Electrical Options: 6.7kW, 3 × 16A, 400V, 50Hz, three phase or 2.6kW, 13A, 230V, single phase
• Dimensions (H × W × D): 825 × 600 × 600 mm
• Construction: Double-skinned stainless steel
• Drain Pump: Integral
• Water Softener: Integral
• Supplied Accessories: 1 × Plate Rack, 1 × Cup Rack, 1 × Cutlery Basket
• Country of Manufacture: Germany
