Hobart Ecomax Plus G515S Glasswasher (In-Built Softener)

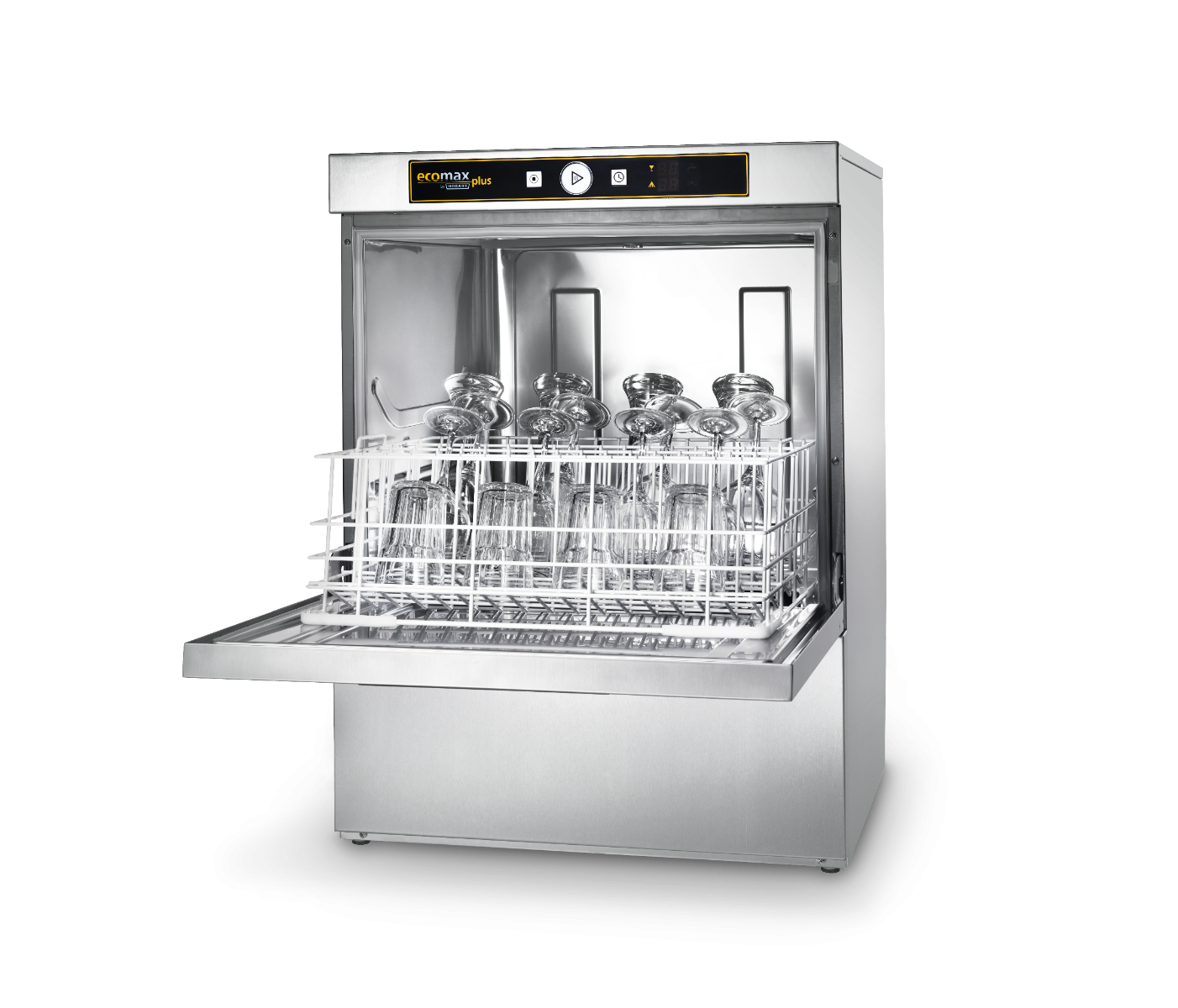

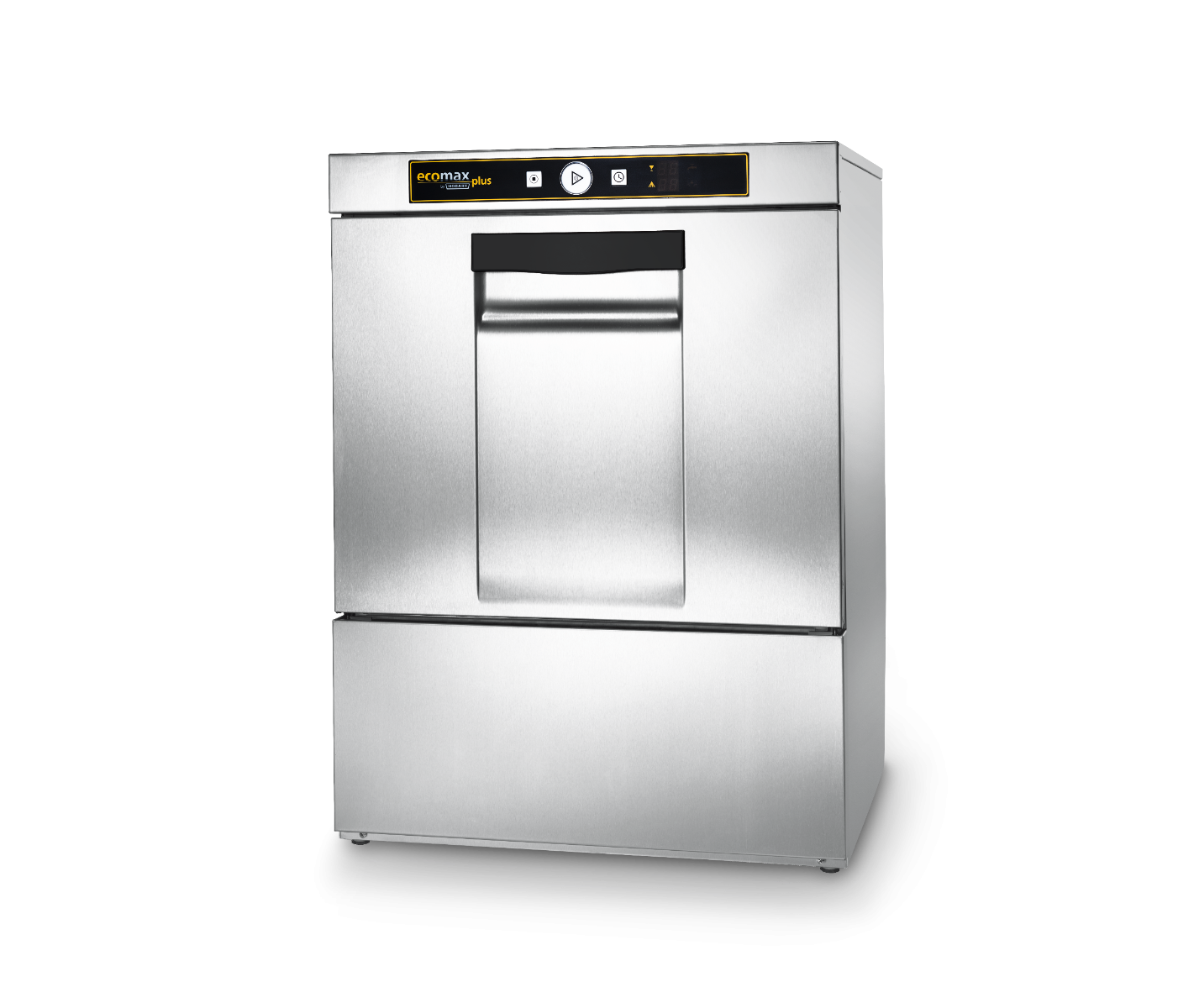

Hobart Ecomax Plus G515S Glasswasher with Built-In Water Softener

The Hobart Ecomax Plus G515S is a high-performance commercial glasswasher designed for busy bars, restaurants, hotels, and hospitality venues. Featuring a 500 × 500 mm basket and an integral water softener, it delivers outstanding washing performance while protecting the machine from limescale build-up in hard water areas. Capable of washing up to 60 racks (approximately 1,500 pint glasses) per hour, it provides fast, reliable results even during peak service.

The upgraded single-button control panel with a digital temperature display makes operation simple and intuitive, while the integrated USB interface allows for quick servicing, diagnostics, and software updates. Equipped with SMARTRONIC controls, an Intensiv three-stage wash system, Accurinse technology, and advanced wide-angle anti-block wash jets, the G515S delivers excellent cleaning performance while reducing water, energy, detergent, and rinse aid consumption.

Its double-skinned cabinet and door minimise operating noise and heat loss, improving energy efficiency and creating a quieter working environment. The built-in drain pump, automatic detergent and rinse aid dosing equipment, and self-flushing hygiene programme make daily operation and maintenance straightforward. With eight wash programmes, including dedicated glass, bottle, cutlery, hygiene, and energy-saving cycles, the G515S offers exceptional flexibility for demanding commercial environments.

Key Features

• Integral water softener protects against limescale build-up
• Washes up to 60 racks (approximately 1,500 pint glasses) per hour
• 500 × 500 mm basket accommodates up to 25 pint glasses per rack
• Eight wash programmes: 60s, 120s, 180s, Hygiene, ESave, Cutlery (360s), Glass (60s) and Bottle (180s)
• SMARTRONIC intelligent electronic controls
• Single-button operation with digital temperature display
• Integrated USB interface for servicing and diagnostics
• Powerful wash pump with rotating upper and lower wash arms
• Advanced anti-block wide-angle wash jets for complete wash coverage
• Intensiv three-stage wash system with pre-wash function
• Accurinse technology reduces water, detergent, rinse aid and energy consumption
• Double-skinned construction reduces heat loss and operating noise
• Thermostop rinse control ensures the correct sanitising rinse temperature
• Integral detergent and rinse aid dosing equipment
• Automatic self-flushing hygiene cycle
• Built-in drain pump
• Supplied with one 5-division tilt rack
• Class A Airgap for direct mains water connection
• WRAS Approved
• Made in Germany

Specifications

• Model: Eco+G515S-10D
• Basket Size: 500 × 500 mm
• Loading Height: 425 mm
• Capacity: Up to 60 racks (approximately 1,500 pint glasses) per hour
• Wash Programmes: 60s, 120s, 180s, Hygiene, ESave, Cutlery (360s), Glass (60s) and Bottle (180s)
• Wash Tank Capacity: 10.6 litres
• Wash Temperature: 50°C
• Rinse Temperature: 67°C
• Water Consumption: 2 litres per cycle
• Water Supply: Hot or cold feed
• Required Water Pressure: 0.6–6 bar
• Electrical Supply: 4.7kW, 25A, 230V, 50Hz, single phase
• Alternative Electrical Options: 2.6kW, 13A, 230V, single phase or 6.7kW, 3 × 16A, 400V, 50Hz, three phase
• Dimensions (H × W × D): 825 × 600 × 600 mm
• Construction: Double-skinned stainless steel
• Drain Pump: Integral
• Water Softener: Integral
• Approvals: WRAS Approved
• Country of Manufacture: Germany
