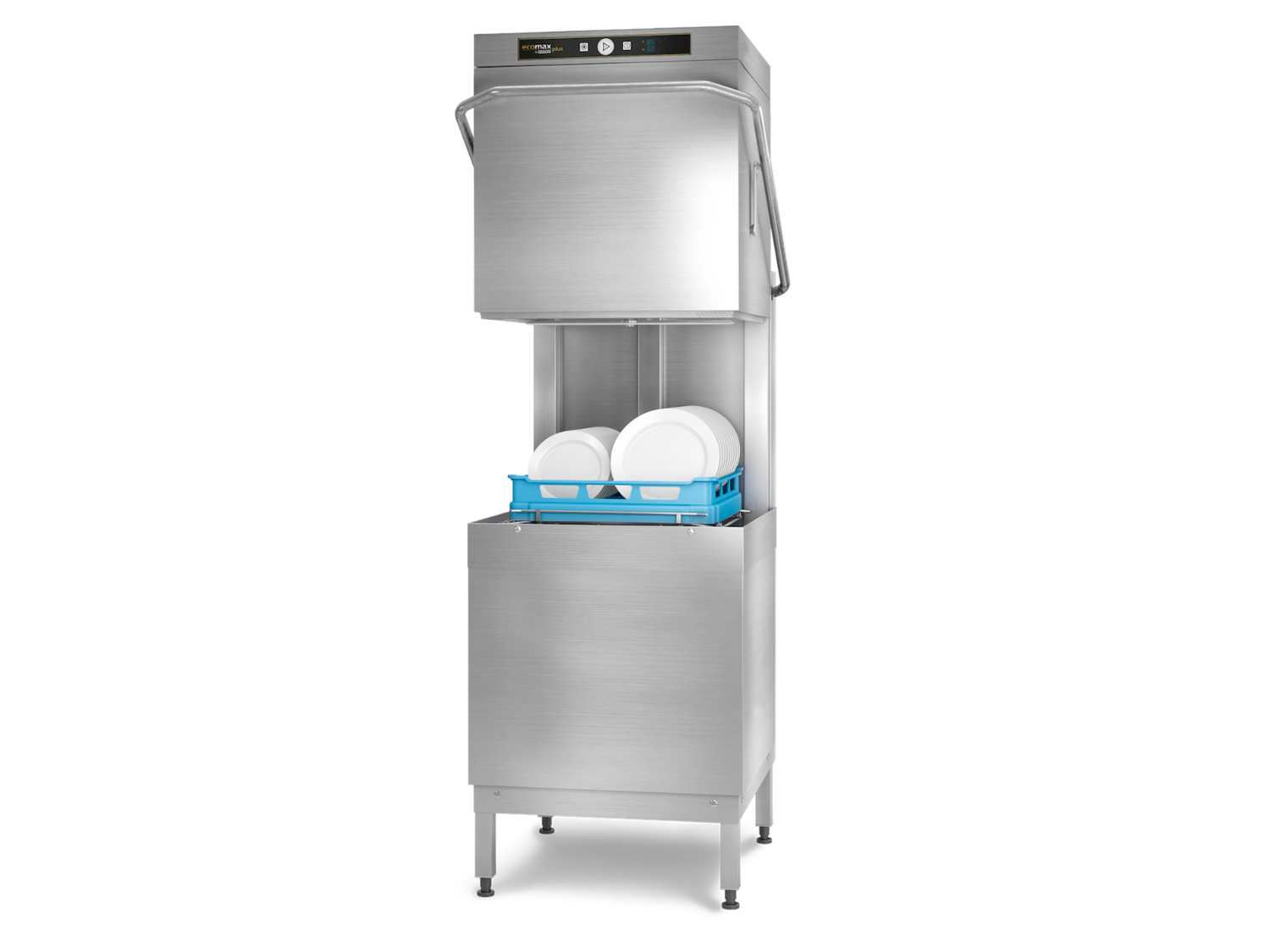

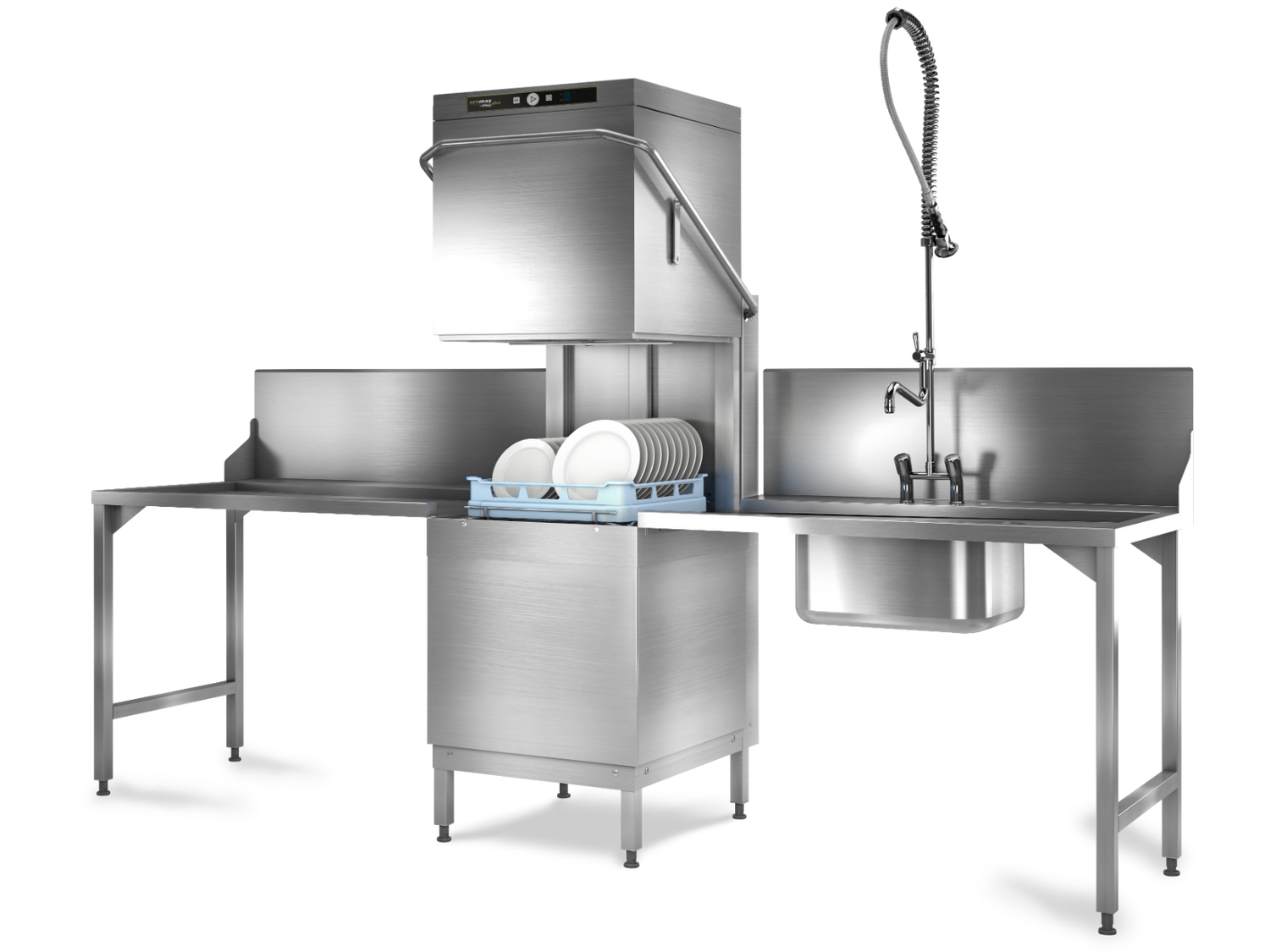

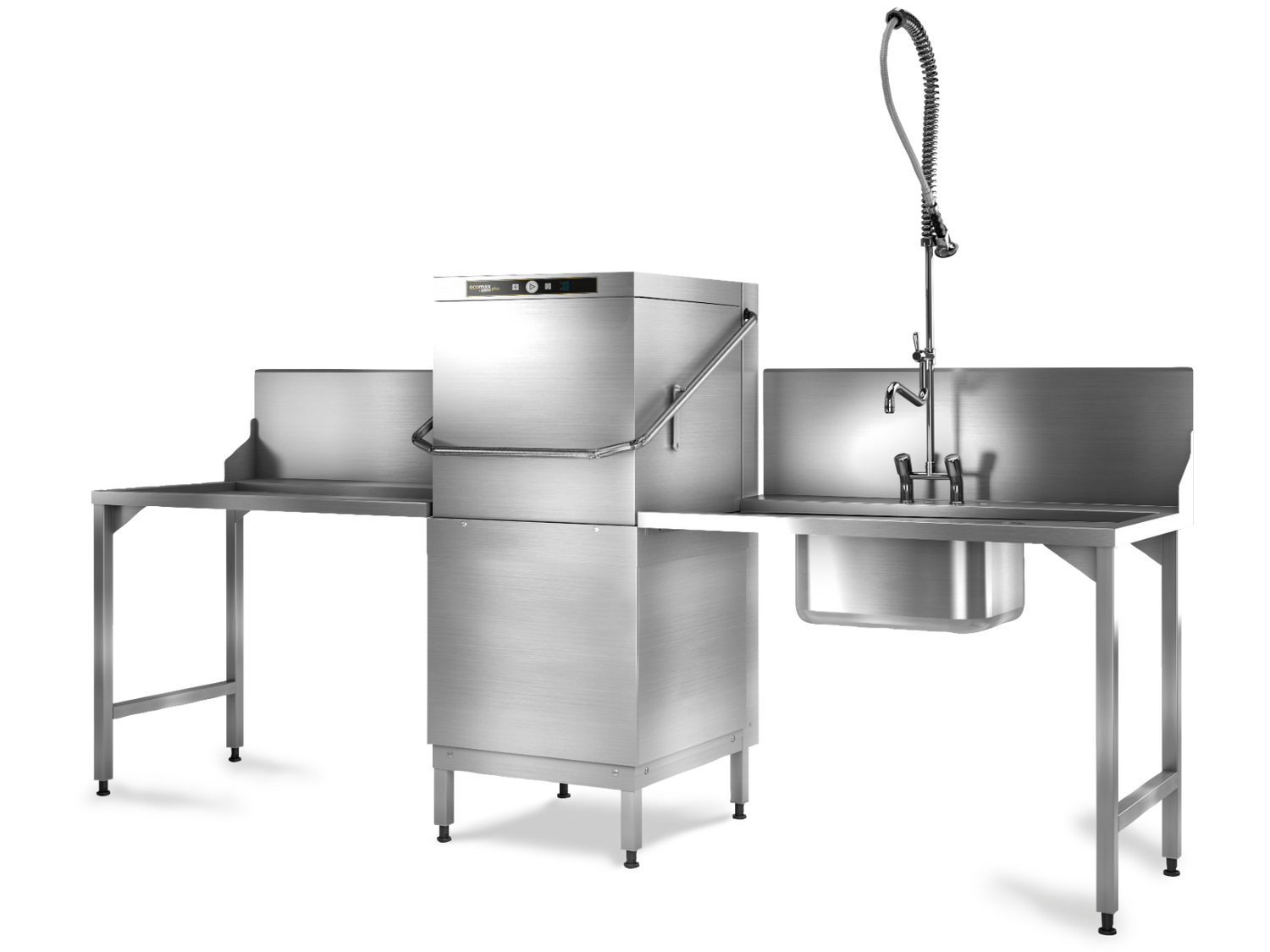

Hobart Ecomax Plus H615 Hood Dishwasher

Hobart Ecomax Plus H615 Hood Dishwasher

The Hobart Ecomax Plus H615 is a high-performance pass-through hood dishwasher designed for busy commercial kitchens, restaurants, hotels, and catering operations requiring fast, reliable, and efficient washing performance. Engineered in Germany, it can wash up to 60 racks per hour and features a unique four-sided fully enclosed hood that reduces heat and steam loss, helping to improve energy efficiency and minimise the need for additional extraction.

The upgraded design includes a convenient single-button control panel positioned on top of the hood for easy access, even in corner installations. With a generous 440 mm hood opening height, the H615 can accommodate larger items such as pizza plates, while its double-racking capability provides excellent flexibility for high-volume operations.

Equipped with Hobart’s advanced INTENSIV wash system, ACCURINSE technology, and VECTOR wide-angle wash jets, the H615 delivers powerful cleaning performance while reducing water, detergent, rinse aid, and energy consumption. The powerful wash pump, separate upper and lower wash arms, and two-stage filtration system ensure consistent results and reliable operation.

The H615 also features a built-in drain pump, automatic detergent and rinse aid dosing equipment, and a complete hygiene programme to maintain cleanliness and optimise performance. With three wash cycles and energy-saving features throughout, it is an ideal solution for demanding professional kitchens.

Key Features

• Washes up to 60 racks per hour (18 plates per rack)
• 500 × 500 mm basket size
• Three wash cycles: 60s, 90s and 180s
• Single-button electronic controls positioned on top of the hood
• Ergonomic hood handle for easy lifting
• Unique four-sided fully enclosed hood reduces heat and steam loss
• VAPOSTOP ER system recovers exhaust air to reduce energy consumption
• 440 mm hood opening height accommodates large items including pizza plates
• Powerful 0.73kW wash pump with separate upper and lower wash arms
• VECTOR wide-angle wash jets provide complete wash coverage
• INTENSIV wash system improves cleaning performance while reducing running costs
• ACCURINSE technology uses only 2.2 litres of fresh water per cycle
• Advanced rinse system delivers consistent water distribution at 82°C
• Thermostop rinse control ensures the correct sanitising rinse temperature
• Two-stage strainer and filter system protects the wash pump
• Integral detergent and rinse aid dosing equipment
• Automatic hygienic self-flushing drain cycle
• Complete hygiene programme cleans and freshens the wash chamber, wash system and filters
• Built-in drain pump for easy draining and refilling
• 23-litre compact wash tank reduces water, energy and detergent consumption
• Supplied with one plate rack, one cup rack and one cutlery basket
• Class A Airgap for direct mains water connection
• WRAS Approved
• Made in Germany

Specifications

• Model: Eco+H615W-10D
• Machine Type: Pass-through hood dishwasher
• Basket Size: 500 × 500 mm
• Loading Height: 440 mm
• Capacity: Up to 60 racks per hour (18 plates per rack)
• Wash Programmes: 60s, 90s and 180s
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 23 litres
• Water Consumption: 2.2 litres per cycle
• Water Supply: Hot or cold feed
• Required Water Pressure: 0.5–10 bar
• Electrical Supply: 7.0kW, 400V, 50Hz, three phase (3 × 16A fuse)
• Alternative Electrical Option: 4.9kW, 230V, 50Hz, single phase (1 × 25A fuse)

• Dimensions (H × W × D):

  • Hood Open Height: 1995 mm

  • Width: 713 mm (635 mm between tables)

  • Depth: 742 mm

• Drain Pump: Integral
• Dosing Equipment: Fitted as standard
• Supplied Accessories: 1 × Plate Rack, 1 × Cup Rack, 1 × Cutlery Basket
• Approvals: WRAS Approved
• Country of Manufacture: Germany
