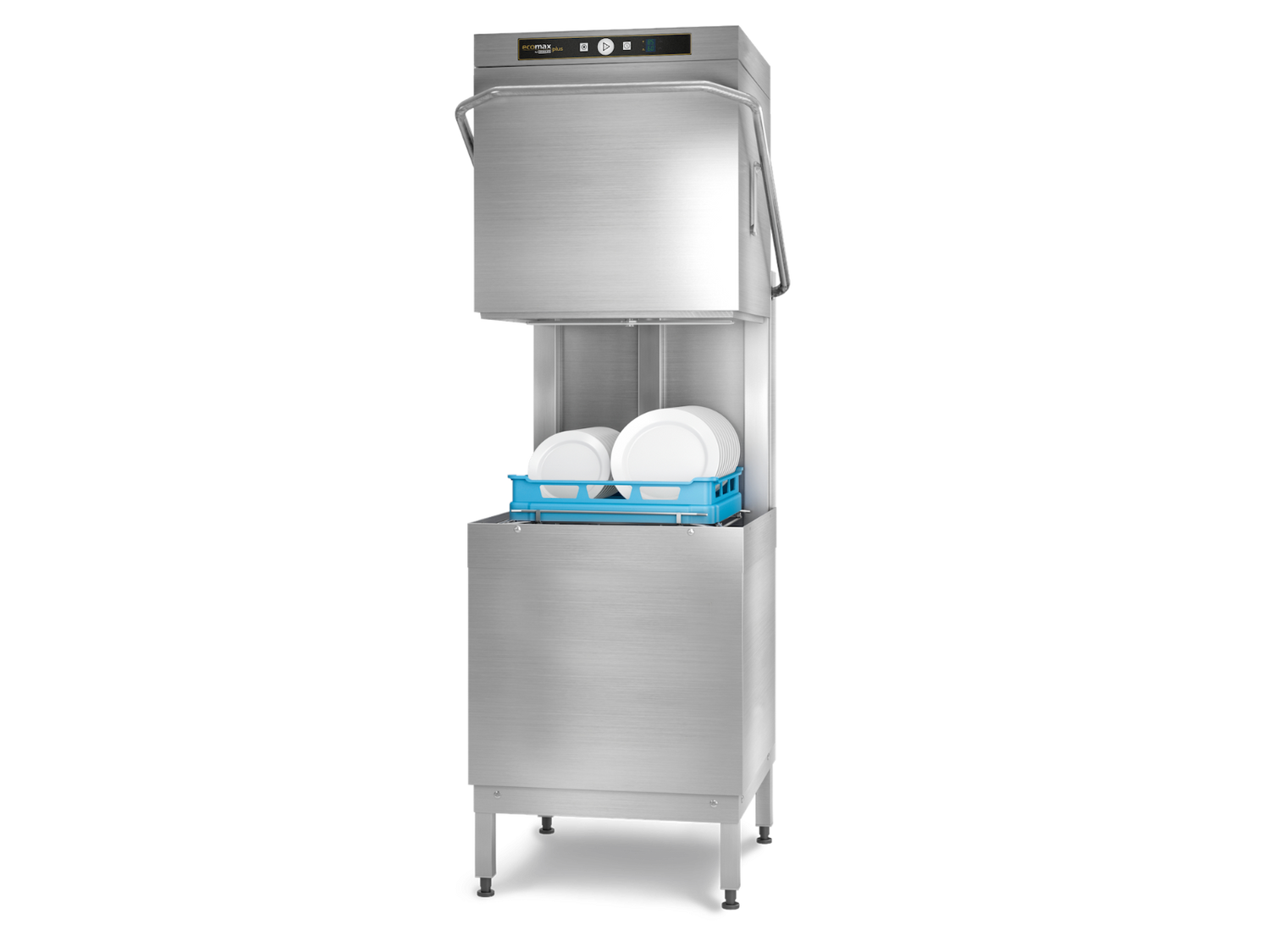

Hobart Ecomax Plus H615S Hood Dishwasher (In-Built Softener)

Hobart Ecomax Plus H615S Hood Dishwasher with Built-In Water Softener

The Hobart Ecomax Plus H615S is a high-performance pass-through hood dishwasher designed for demanding commercial kitchens, restaurants, hotels, and catering operations. Combining powerful cleaning performance with energy-efficient operation, it can wash up to 60 racks per hour (1,080 plates) while maintaining low water and energy consumption.

Featuring an integral water softener, the H615S is ideal for hard water areas, helping to reduce limescale build-up, maintain optimum wash performance, and extend the service life of the machine. The upgraded design includes a single-button control panel positioned on top of the hood for easy operation, even in corner installations, along with a USB interface for simplified servicing, diagnostics, maintenance, and software updates.

The H615S incorporates advanced INTENSIV wash technology, ACCURINSE, and VECTOR wide-angle wash jets to provide excellent cleaning results while reducing water, detergent, rinse aid, and energy consumption. Its unique four-sided enclosed hood design minimises heat and steam loss, helping to improve efficiency and reduce the need for additional extraction systems.

Built for reliability and ease of use, the machine includes automatic detergent and rinse aid dosing, an integral drain pump, a hygienic self-flushing drain cycle, and a complete hygiene programme. With a 440 mm loading height, double-racking capability, and dedicated features for high-volume operations, the Hobart Ecomax Plus H615S is an efficient and durable solution for professional kitchens.

Key Features

• Integral water softener ensures optimum water quality and reduces limescale build-up
• Washes up to 60 racks per hour (approximately 1,080 plates)
• Three wash cycles: 60s, 90s and 180s
• Single-button electronic controls positioned on top of the hood
• USB interface for servicing, diagnostics, maintenance and software updates
• Durable wrap-around ergonomic hood handle for easy lifting
• Unique four-sided fully enclosed hood reduces heat and steam loss
• VAPOSTOP ER system recovers exhaust air to reduce energy consumption
• 440 mm loading height accommodates larger items including pizza plates
• Powerful 0.73kW wash pump with separate upper and lower wash arms
• VECTOR wide-angle wash jets provide complete wash coverage
• INTENSIV wash system delivers excellent cleaning performance while reducing running costs
• ACCURINSE technology uses only 2.2 litres of fresh water per cycle
• Advanced rinse system maintains consistent 82°C rinse temperature
• Thermostop rinse control ensures correct sanitising rinse temperature
• Two-stage strainer and filter system protects the wash pump
• Integral detergent and rinse aid dosing equipment
• Automatic hygienic self-flushing drain cycle
• Complete hygiene programme cleans and freshens wash chamber, wash system and filters
• Built-in drain pump for easy draining and refilling
• 23-litre compact wash tank reduces water, energy and detergent consumption
• Class A Airgap for direct mains water connection
• Supplied with one plate rack, one cup rack and one cutlery basket
• WRAS Approved
• Made in Germany

Specifications

• Model: Eco+H615SW-10D
• Machine Type: Pass-through hood dishwasher
• Basket Size: 500 × 500 mm
• Loading Height: 440 mm
• Capacity: Up to 60 racks per hour (approximately 1,080 plates)
• Wash Programmes: 60s, 90s and 180s
• Wash Temperature: 60°C
• Rinse Temperature: 82°C
• Wash Tank Capacity: 23 litres
• Water Consumption: 2.2 litres per cycle
• Water Supply: Hot or cold feed
• Required Water Pressure: 0.5–10 bar
• Electrical Supply: 7.0kW, 400V, 50Hz, three phase (3 × 16A fuse)
• Alternative Electrical Option: 4.9kW, 230V, 50Hz, single phase (1 × 25A fuse)

• Dimensions (H × W × D):

  • Hood Open Height: 1995 mm

  • Width: 713 mm (635 mm between tables)

  • Depth: 742 mm

• Drain Pump: Integral
• Water Softener: Integral
• Dosing Equipment: Fitted as standard
• Supplied Accessories: 1 × Plate Rack, 1 × Cup Rack, 1 × Cutlery Basket
• Approvals: WRAS Approved
• Country of Manufacture: Germany
