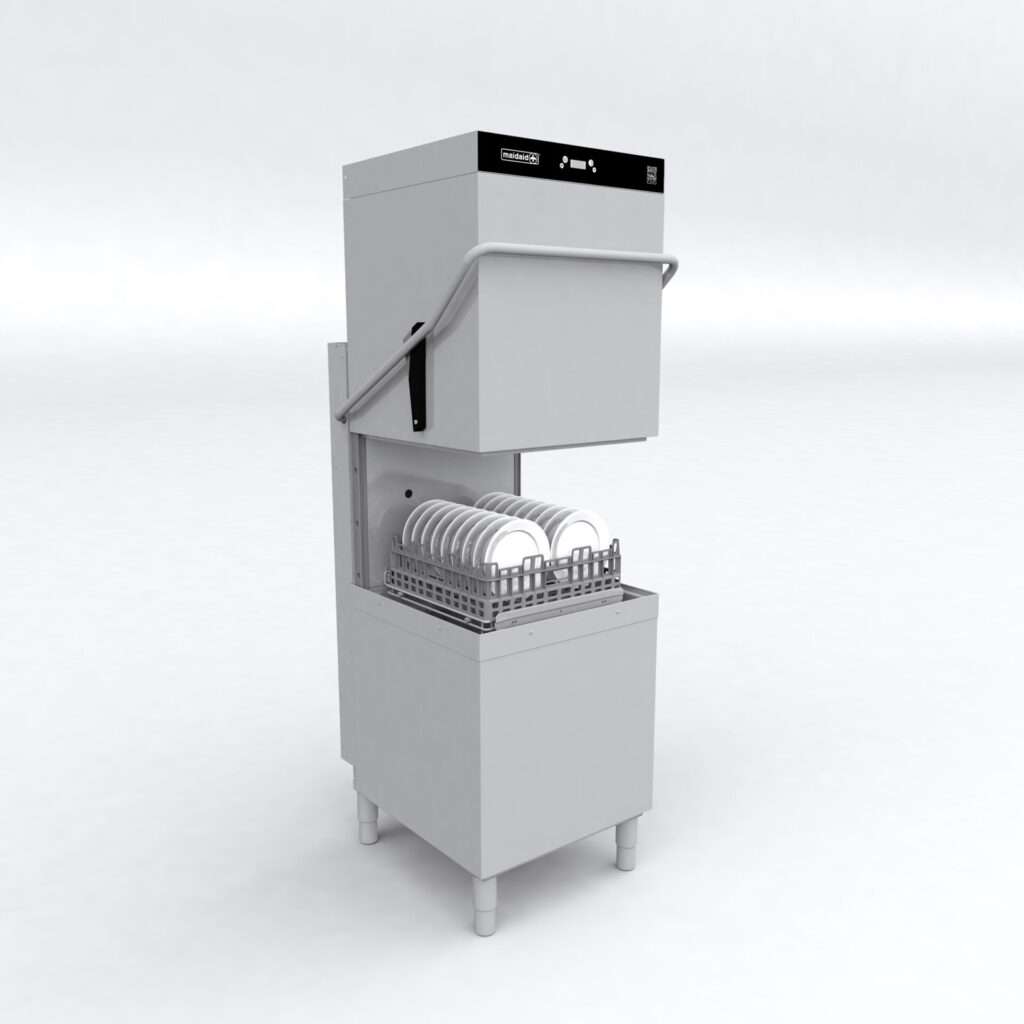

Maidaid C201D Pass Through Dishwasher

Maidaid C201D Pass Through Dishwasher

The Maidaid C201D Pass Through Dishwasher is a premium commercial pass-through dishwasher engineered for high-volume restaurants, hotels, catering facilities, schools, and institutional kitchens. Featuring a 500 × 500 mm rack with an 18-plate capacity and a generous 470 mm hood clearance, it delivers exceptional washing performance while using from just 1.5 litres of water per cycle. Independently tested to EN63136, the C201D also offers up to 55% greater energy efficiency compared to comparable machines, helping reduce operating costs without compromising cleaning performance.

Designed for ease of use, the C201D features an eye-level LED touchscreen display with a scratch-resistant finish, an ergonomic easy-glide double bent handle, and seven wash programmes to suit a wide range of washing applications. Its high-density filtration system, triple filtration technology, and EN17735 hygiene certification ensure consistently outstanding cleaning results while reducing pump wear and extending machine life. The partially double-skinned construction improves heat retention, increasing efficiency while reducing heat loss.

Built for demanding commercial environments, the C201D incorporates an integrated break tank, drain pump, and automatic detergent and rinse aid peristaltic dosing pumps for dependable operation. The removable wash arms and tank system simplify routine cleaning and maintenance, while the availability of both single-phase and three-phase electrical options makes it suitable for a wide range of installations. Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the C201D delivers outstanding performance, efficiency, and reliability for professional kitchens.

Key Features

• Commercial pass-through dishwasher with 500 × 500 mm rack
• 18-plate capacity rack for higher throughput
• 470 mm hood clearance accommodates larger cookware and trays
• Uses from 1.5 litres of water per wash cycle
• Up to 55% improved energy efficiency (EN63136 independent testing)
• Eye-level LED touchscreen display with scratch-resistant finish
• Ergonomic easy-glide double bent handle
• Seven selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning results
• Triple filtration system reduces pump wear and improves reliability
• Partial double-skinned construction improves heat retention
• Built-in drain pump
• Integrated break tank for safe commercial water supply
• Automatic detergent and rinse aid peristaltic dosing pumps
• Removable wash arms and tank system for easy cleaning and maintenance
• Parallel wash and rinse arm assembly for superior wash coverage
• Available in single-phase and three-phase electrical configurations
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, hotels, catering kitchens, schools, and commercial foodservice operations
• 2-year manufacturer's warranty

Specifications

• Model: C201D
• Machine Type: Pass Through Dishwasher
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 18 plates per rack
• Hood Clearance: 470 mm
• Wash Programmes: 7
• Water Consumption: From 1.5 litres per cycle
• Display: LED touchscreen controls
• Construction: Partial double-skinned
• Drain Pump: Built-in
• Break Tank: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 4.5kW (20 Amp) or 6.5kW (32 Amp)
  • Three Phase: 8.5kW (16 Amp)
• Note: Three-phase machines are not compatible with single-phase conversion.
• Dimensions (W × D × H): 633 × 750 × 1560 mm
• Supplied With: One pegged rack, one open cup/glass rack, and cutlery insert
• Warranty: 2 Years

Downloads

C201D 32A Single Phase Tech Spec
C201D 16A Three Phase Tech Spec
User & Install Manual (English)
