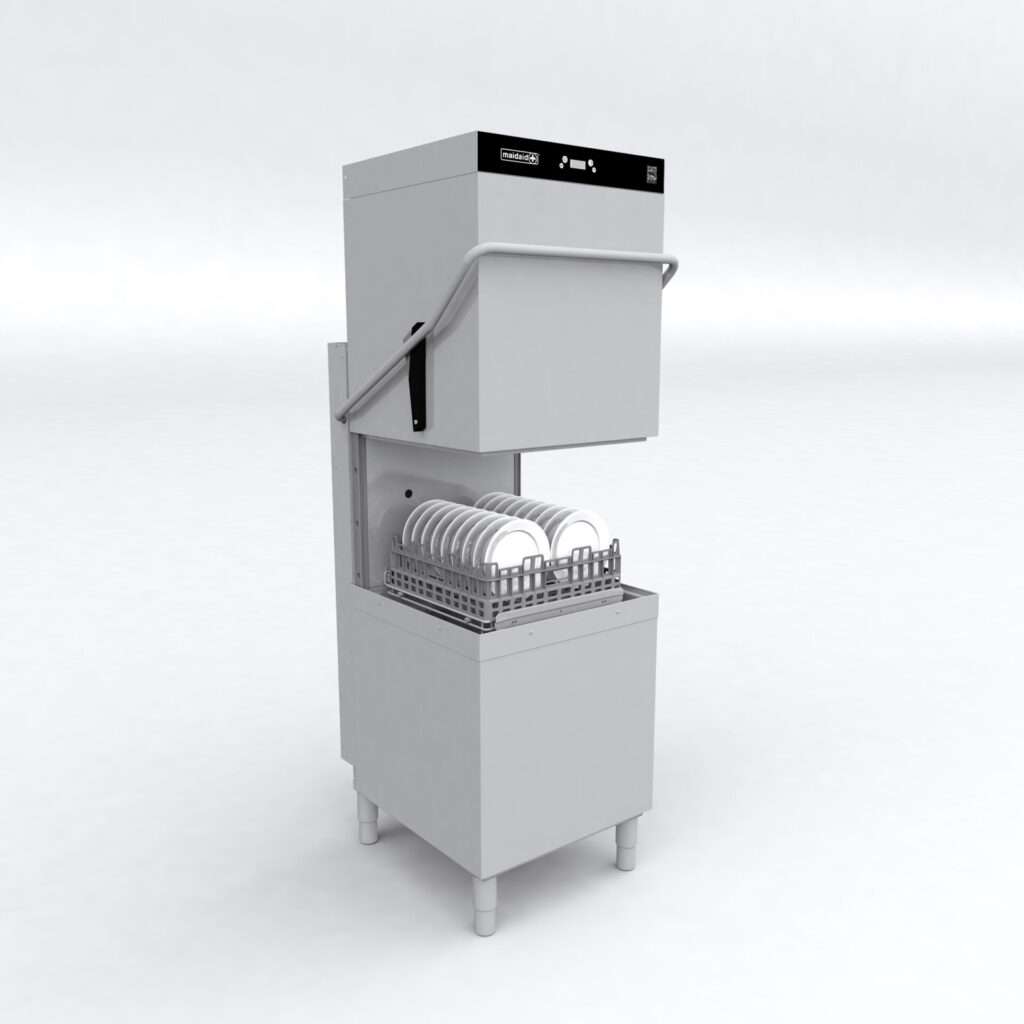

Maidaid C205WS Pass Through Dishwasher

Maidaid C205WS Pass Through Dishwasher

The Maidaid C205WS Pass Through Dishwasher is a premium commercial pass-through dishwasher designed to deliver exceptional cleaning performance for busy restaurants, hotels, catering facilities, schools, and institutional kitchens. Featuring a 500 × 500 mm rack with an 18-plate capacity and a generous 470 mm hood clearance, it provides outstanding throughput while using from just 1.5 litres of water per cycle. Independently tested to EN63136, the C205WS delivers up to 55% greater energy efficiency compared with comparable commercial machines, helping to reduce water, energy, and operating costs.

Designed for maximum ease of use, the C205WS features an eye-level LED touchscreen display with a scratch-resistant finish, an ergonomic easy-glide double bent handle, and seven wash programmes to suit a wide range of warewashing requirements. Its high-density filtration system, triple filtration technology, and EN17735 hygiene certification ensure consistently brilliant cleaning performance while protecting internal components and reducing pump wear. An integrated internal water softener minimises limescale build-up, improving wash quality and extending machine lifespan, particularly in hard water areas.

Built for reliability and simple maintenance, the C205WS incorporates a break tank, built-in drain pump, and automatic detergent and rinse aid peristaltic dosing pumps for dependable day-to-day operation. The removable wash arms and tank system make routine cleaning quick and straightforward, while multiple single-phase and three-phase electrical options allow flexible installation. Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the C205WS is an efficient, durable, and high-performance warewashing solution for demanding commercial kitchens.

Key Features

• Commercial pass-through dishwasher with 500 × 500 mm rack
• 18-plate capacity rack for higher throughput
• 470 mm hood clearance accommodates larger cookware and trays
• Uses from 1.5 litres of water per wash cycle
• Up to 55% improved energy efficiency (EN63136 independent testing)
• Eye-level LED touchscreen display with scratch-resistant finish
• Ergonomic easy-glide double bent handle
• Seven selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning results
• Triple filtration system reduces pump wear and improves reliability
• Partial double-skinned construction improves heat retention
• Built-in internal water softener helps reduce limescale build-up
• Built-in drain pump
• Integrated break tank for safe commercial water supply
• Automatic detergent and rinse aid peristaltic dosing pumps
• Removable wash arms and tank system for easy cleaning and maintenance
• Parallel wash and rinse arm assembly for superior wash coverage
• Available in single-phase and three-phase electrical configurations
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, hotels, catering kitchens, schools, and commercial foodservice operations
• 2-year manufacturer's warranty

Specifications

• Model: C205WS
• Machine Type: Pass Through Dishwasher
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 18 plates per rack
• Hood Clearance: 470 mm
• Wash Programmes: 7
• Water Consumption: From 1.5 litres per cycle
• Display: LED touchscreen controls
• Construction: Partial double-skinned
• Drain Pump: Built-in
• Break Tank: Yes
• Internal Water Softener: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 4.5kW (20 Amp) or 6.5kW (32 Amp)
  • Three Phase: 8.5kW (16 Amp)
• Note: Three-phase machines are not compatible with single-phase conversion.
• Dimensions (W × D × H): 633 × 750 × 1560 mm
• Supplied With: One pegged rack, one open cup/glass rack, and cutlery insert
• Warranty: 2 Years

Downloads

C205WS 32A Single Phase Tech Spec
C205WS 16A Three Phase Tech Spec
User & Install Manual (English)
