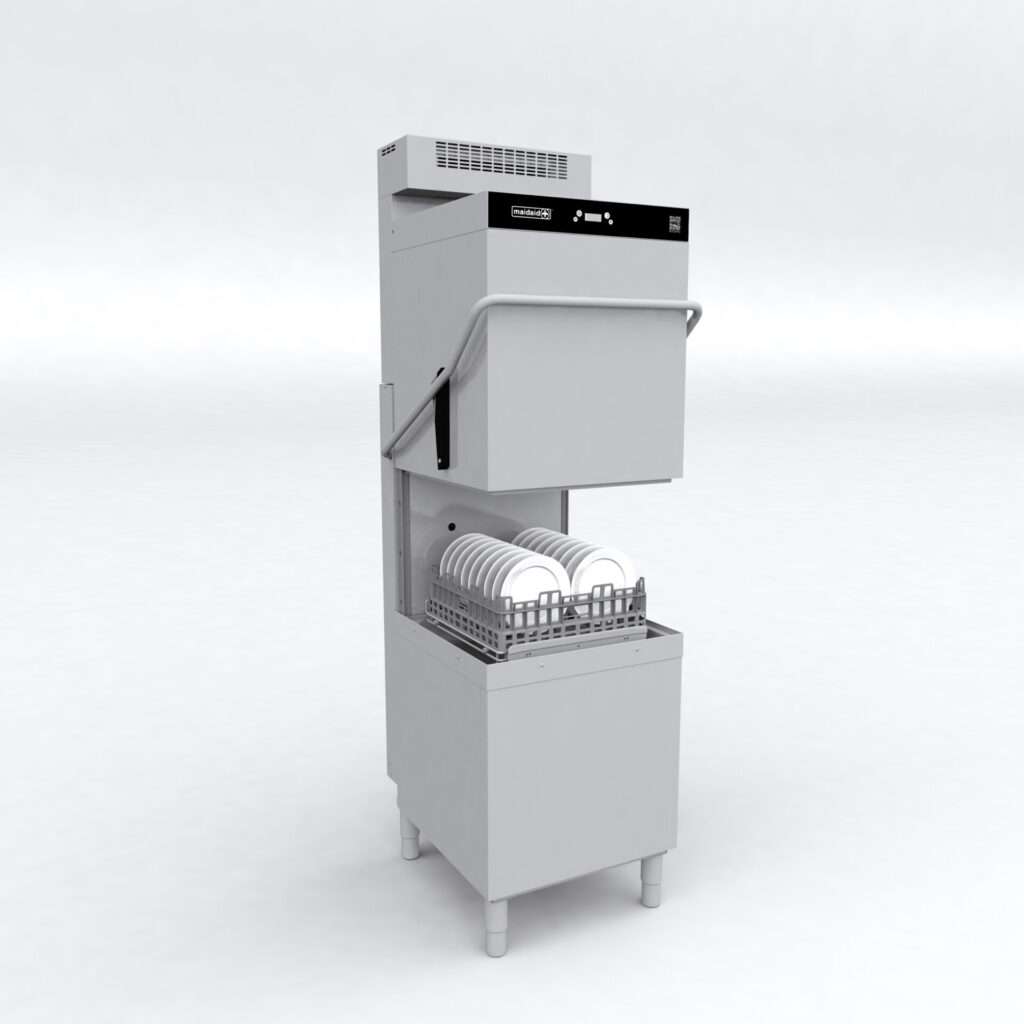

Maidaid C205WSHR Pass Through Dishwasher

Maidaid C205WSHR Pass Through Dishwasher

The Maidaid C205WSHR Pass Through Dishwasher is a premium commercial pass-through dishwasher engineered for high-volume restaurants, hotels, catering facilities, schools, and institutional kitchens. Featuring a 500 × 500 mm rack with an 18-plate capacity and a generous 470 mm hood clearance, it delivers exceptional washing performance while using from just 1.5 litres of water per cycle. Independently tested to EN63136, the C205WSHR offers up to 55% greater energy efficiency than comparable machines, helping to reduce water, energy, and operating costs.

Designed for maximum performance and ease of use, the C205WSHR features an eye-level LED touchscreen display with a scratch-resistant finish, an ergonomic easy-glide double bent handle, and seven wash programmes to accommodate a wide variety of warewashing applications. Its high-density filtration system, triple filtration technology, and EN17735 hygiene certification ensure consistently outstanding cleaning results while reducing pump wear and extending machine life. The integrated internal water softener minimises limescale build-up, while the advanced heat recovery system captures steam and reuses heat to reduce energy consumption, improve working conditions, and lower running costs.

Built for durability and straightforward maintenance, the C205WSHR incorporates a break tank, built-in drain pump, and automatic detergent and rinse aid peristaltic dosing pumps for dependable day-to-day operation. Removable wash arms and the easy-clean tank system simplify routine maintenance, while multiple single-phase and three-phase electrical options provide installation flexibility. Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the C205WSHR is an ideal warewashing solution for demanding commercial kitchens seeking maximum efficiency and performance.

Key Features

• Commercial pass-through dishwasher with 500 × 500 mm rack
• 18-plate capacity rack for increased throughput
• 470 mm hood clearance accommodates larger cookware and trays
• Uses from 1.5 litres of water per wash cycle
• Up to 55% improved energy efficiency (EN63136 independent testing)
• Heat recovery system improves efficiency and reduces steam emissions
• Built-in internal water softener helps reduce limescale build-up
• Eye-level LED touchscreen display with scratch-resistant finish
• Ergonomic easy-glide double bent handle
• Seven selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning performance
• Triple filtration system reduces pump wear and improves reliability
• Partial double-skinned construction improves heat retention
• Built-in drain pump
• Integrated break tank for safe commercial water supply
• Automatic detergent and rinse aid peristaltic dosing pumps
• Removable wash arms and tank system for easy cleaning and maintenance
• Parallel wash and rinse arm assembly for superior wash coverage
• Available in single-phase and three-phase electrical configurations
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, hotels, catering kitchens, schools, and commercial foodservice operations
• 2-year manufacturer's warranty

Specifications

• Model: C205WSHR
• Machine Type: Pass Through Dishwasher
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 18 plates per rack
• Hood Clearance: 470 mm
• Wash Programmes: 7
• Water Consumption: From 1.5 litres per cycle
• Display: LED touchscreen controls
• Construction: Partial double-skinned
• Drain Pump: Built-in
• Break Tank: Yes
• Internal Water Softener: Yes
• Heat Recovery: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 4.5kW (20 Amp) or 6.5kW (32 Amp)
  • Three Phase: 8.5kW (16 Amp)
• Note: Three-phase machines are not compatible with single-phase conversion.
• Dimensions (W × D × H): 633 × 750 × 2253 mm
• Supplied With: One pegged rack, one open cup/glass rack, and cutlery insert
• Warranty: 2 Years

Downloads

C205WSHR 32A Single Tech Spec
C205WSHR 16A Three Phase Tech Spec
User & Install Manual (English)
