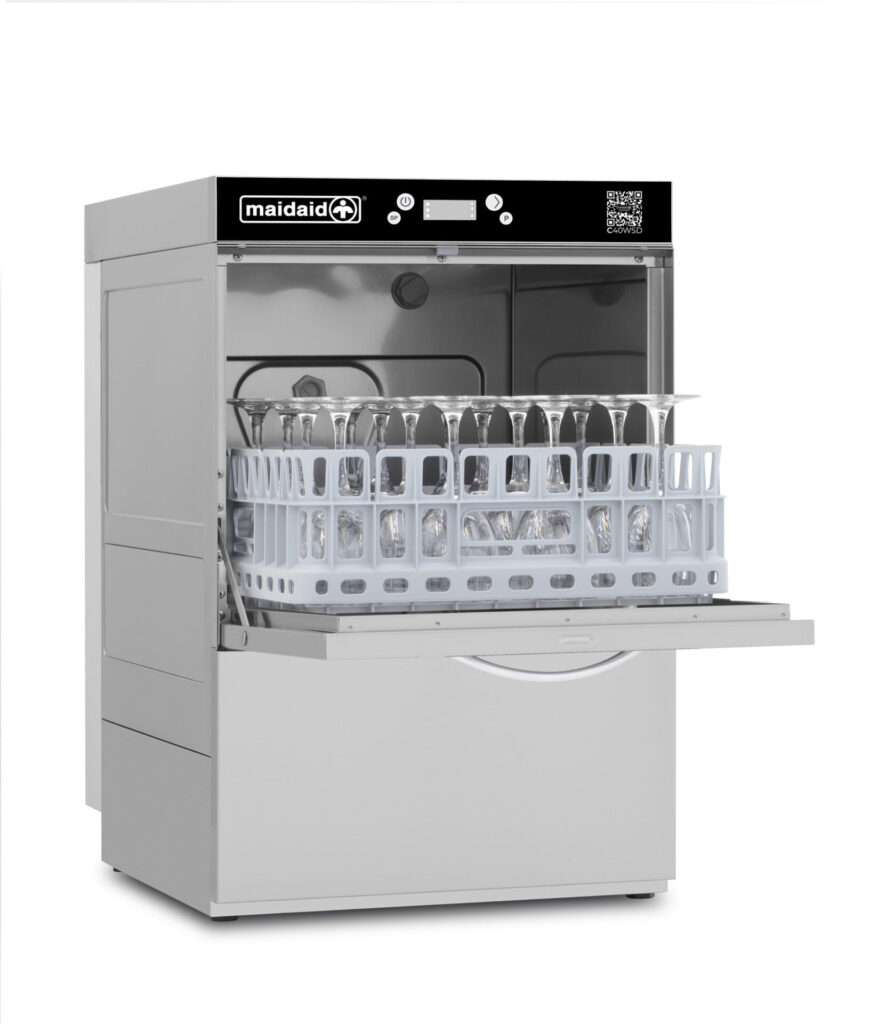

Maidaid C40WSD Glasswasher

Maidaid C40WSD Glasswasher

The Maidaid C40WSD Glasswasher is a premium commercial glasswasher designed to deliver exceptional cleaning performance for bars, cafés, pubs, restaurants, and hospitality venues. Featuring a 390 × 390 mm rack, it provides consistently sparkling glassware while using from just 2 litres of water per cycle. Independently tested to EN63136, the C40WSD delivers up to 25% greater energy efficiency than comparable machines, helping to reduce water, energy, and operating costs.

Designed for ease of use and long-term reliability, the C40WSD features a scratch-resistant LED touchscreen display, a robust stainless steel ergonomic handle, and multiple wash programmes to suit a variety of cleaning requirements. Its stratified double-skinned construction improves heat retention and operating efficiency, while the triple filtration system minimises pump wear and ensures consistently brilliant cleaning performance. EN17735 certification guarantees the highest standards of sanitisation, and the integrated internal water softener helps reduce limescale build-up, improving wash quality and extending the machine's service life.

Built for dependable day-to-day operation, the C40WSD incorporates removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps provide reliable cleaning performance with minimal operator intervention. Supplied with two open cup/glass racks and a cutlery insert, the C40WSD is an efficient and durable solution for demanding commercial glasswashing applications.

Key Features

• Commercial glasswasher with 390 × 390 mm rack
• Uses from 2 litres of water per wash cycle
• Up to 25% improved energy efficiency (EN63136 independent testing)
• Scratch-resistant LED touchscreen display
• Robust stainless steel ergonomic handle
• Four selectable wash programmes
• EN17735 certified for the highest level of sanitisation
• Internal water softener helps reduce limescale build-up
• Stratified double-skinned construction improves heat retention
• Triple filtration system reduces pump wear and improves reliability
• Built-in drain pump
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior cleaning performance
• Wash arms with removable inspection caps for easy cleaning
• Easy-clean removable wash arm and tank system
• Supplied with two open cup/glass racks and a cutlery insert
• Ideal for bars, cafés, pubs, restaurants, and hospitality venues
• 2-year manufacturer's warranty

Specifications

• Model: C40WSD
• Machine Type: Glasswasher
• Rack Size: 390 × 390 mm
• Wash Programmes: 4
• Water Consumption: From 2 litres per cycle
• Display: LED touchscreen controls
• Construction: Stratified double-skinned
• Drain Pump: Built-in
• Internal Water Softener: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Rating: 2.8kW (13 Amp)
• Power Supply: Single phase
• Dimensions (W × D × H): 436 × 535 × 680 mm
• Supplied With: Two open cup/glass racks and cutlery insert
• Warranty: 2 Years

Downloads

C40WSD Single Phase Tech Spec
User & Install Manual (English)
