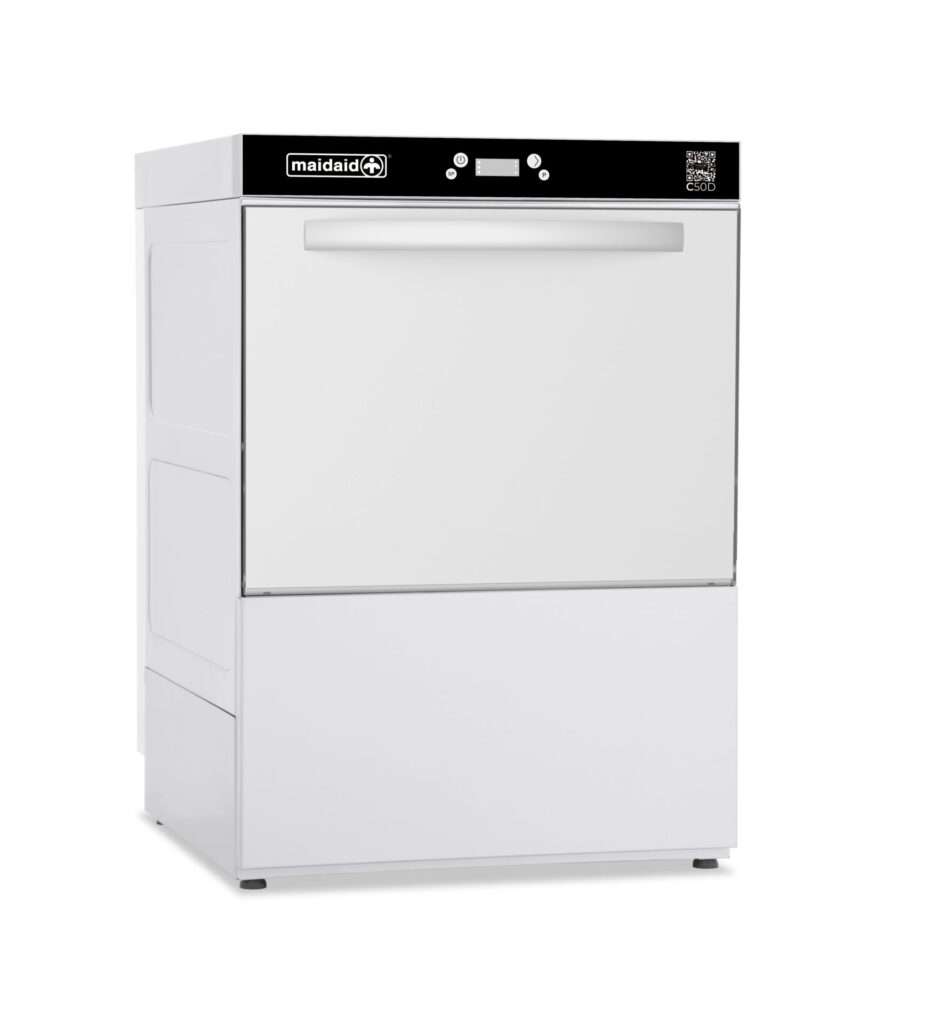

Maidaid C50D Glasswasher

Maidaid C50D Glasswasher

The Maidaid C50D Glasswasher is a premium high-capacity commercial glasswasher designed to deliver exceptional cleaning performance for busy bars, restaurants, hotels, cafés, and hospitality venues. Featuring a 500 × 500 mm rack with capacity for up to 18 plates, it provides outstanding throughput while using from just 1.5 litres of water per cycle. Independently tested to EN63136, the C50D delivers up to 25% greater energy efficiency than comparable machines, helping to reduce water, energy, and operating costs.

Designed for ease of use and long-term reliability, the C50D features a scratch-resistant LED touchscreen display, a robust stainless steel ergonomic handle, and six wash programmes to accommodate a variety of washing requirements. Its stratified double-skinned construction improves heat retention and operating efficiency, while the triple filtration system reduces pump wear and ensures consistently brilliant cleaning results. EN17735 certification guarantees the highest standards of sanitisation, and the integrated bottle wash capability makes the machine suitable for cleaning reusable bottles, carafes, and other narrow-necked containers.

Built for demanding commercial environments, the C50D incorporates removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps provide reliable day-to-day operation with minimal operator intervention. Available with multiple single-phase and three-phase electrical options, and supplied with two open cup/glass racks and a cutlery insert, the C50D is a versatile and efficient solution for high-volume glasswashing applications.

Key Features

• Commercial glasswasher with 500 × 500 mm rack
• Up to 18-plate capacity rack
• Uses from 1.5 litres of water per wash cycle
• Up to 25% improved energy efficiency (EN63136 independent testing)
• Scratch-resistant LED touchscreen display
• Robust stainless steel ergonomic handle
• Six selectable wash programmes
• Bottle wash capability
• EN17735 certified for the highest level of sanitisation
• Stratified double-skinned construction improves heat retention
• Triple filtration system reduces pump wear and improves reliability
• Built-in drain pump
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior cleaning performance
• Wash arms with removable inspection caps for easy cleaning
• Easy-clean removable wash arm and tank system
• Multiple single-phase and three-phase electrical options
• Supplied with two open cup/glass racks and a cutlery insert
• Ideal for bars, cafés, restaurants, hotels, and hospitality venues
• 2-year manufacturer's warranty

Specifications

• Model: C50D
• Machine Type: Glasswasher
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 18 plates
• Wash Programmes: 6
• Water Consumption: From 1.5 litres per cycle
• Display: LED touchscreen controls
• Construction: Stratified double-skinned
• Drain Pump: Built-in
• Bottle Wash Capability: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 2.5kW (13 Amp), 4.5kW (20 Amp), or 6.5kW (30 Amp)
  • Three Phase: 7.5kW (16 Amp)
• Note: Three-phase machines are not compatible with single-phase conversion.
• Dimensions (W × D × H): 575 × 605 × 820 mm
• Supplied With: Two open cup/glass racks and cutlery insert
• Warranty: 2 Years

Downloads

C50D 13A Single Phase Tech Spec
C50D 30A Single Phase Tech Spec
C50D 16A Three Phase Tech Spec
User & Install Manual (English)
