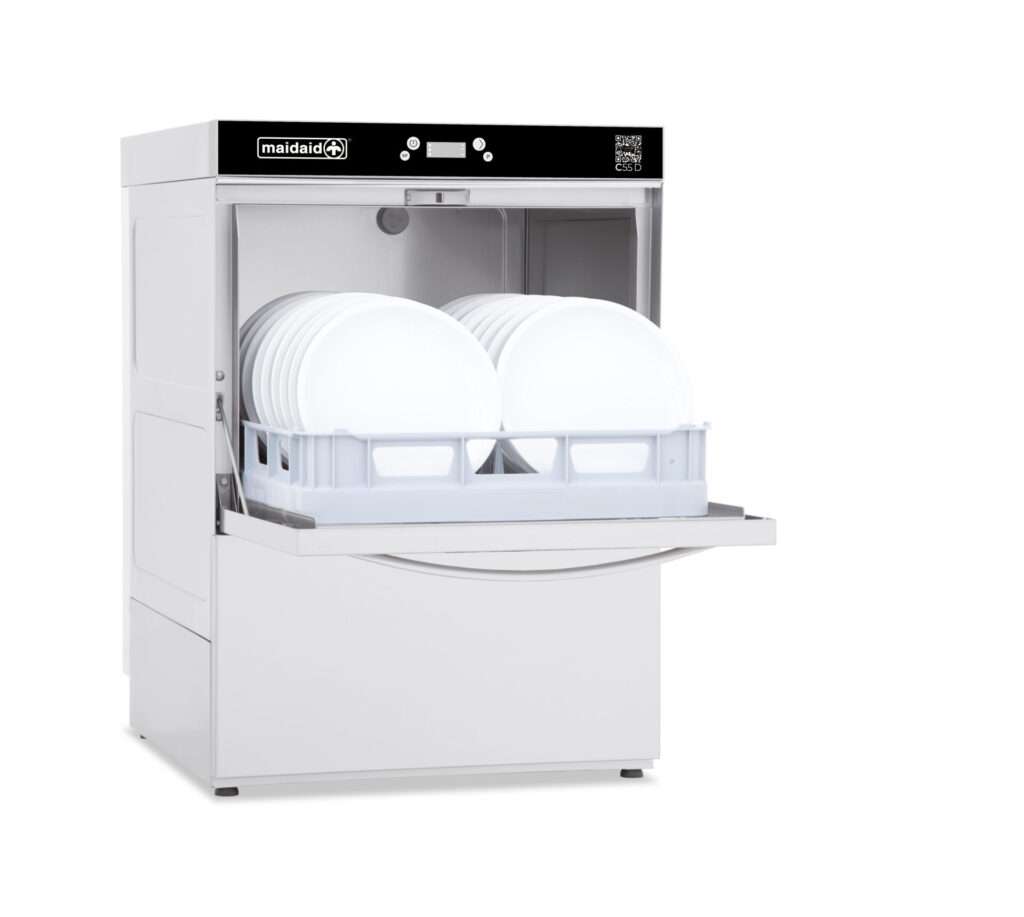

Maidaid C55WSD Glasswasher/ Dishwasher

Maidaid C55WSD Glasswasher / Dishwasher

The Maidaid C55WSD Glasswasher / Dishwasher is a premium commercial warewashing solution designed to deliver exceptional cleaning performance in busy restaurants, cafés, hotels, bars, pubs, and hospitality venues. Featuring a 500 × 500 mm rack with capacity for up to 18 plates, it is ideal for washing glassware, crockery, plates, and utensils while using from just 1.5 litres of water per cycle. Independently tested to EN63136, the C55WSD delivers up to 25% greater energy efficiency than comparable commercial machines, helping to reduce water, energy, and operating costs.

Designed for ease of use and long-term reliability, the C55WSD features a scratch-resistant LED touchscreen display, a robust stainless steel ergonomic handle, and seven wash programmes to suit a wide variety of warewashing requirements. Its stratified double-skinned construction improves heat retention and operating efficiency, while the triple filtration system reduces pump wear and ensures consistently outstanding cleaning performance. EN17735 certification guarantees the highest standards of sanitisation, while the integrated internal water softener helps minimise limescale build-up, improving wash quality and extending machine life. The built-in break tank provides reliable water protection for commercial installations.

Built for demanding commercial environments, the C55WSD incorporates removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps ensure dependable cleaning performance with minimal operator intervention. Available with multiple single-phase and three-phase electrical options, and supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the C55WSD is an efficient and versatile solution for high-volume commercial warewashing.

Key Features

• Commercial glasswasher and dishwasher with 500 × 500 mm rack
• Up to 18-plate capacity rack
• Uses from 1.5 litres of water per wash cycle
• Up to 25% improved energy efficiency (EN63136 independent testing)
• Scratch-resistant LED touchscreen display
• Robust stainless steel ergonomic handle
• Seven selectable wash programmes
• EN17735 certified for the highest level of sanitisation
• Internal water softener helps reduce limescale build-up
• Integrated break tank for safe commercial water supply
• Stratified double-skinned construction improves heat retention
• Triple filtration system reduces pump wear and improves reliability
• Built-in drain pump
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior cleaning performance
• Wash arms with removable inspection caps for easy cleaning
• Easy-clean removable wash arm and tank system
• Multiple single-phase and three-phase electrical options
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, cafés, hotels, bars, pubs, and hospitality venues
• 2-year manufacturer's warranty

Specifications

• Model: C55WSD
• Machine Type: Glasswasher / Dishwasher
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 18 plates
• Wash Programmes: 7
• Water Consumption: From 1.5 litres per cycle
• Display: LED touchscreen controls
• Construction: Stratified double-skinned
• Drain Pump: Built-in
• Internal Water Softener: Yes
• Break Tank: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 2.5kW (13 Amp), 4.5kW (20 Amp), or 6.5kW (30 Amp)
  • Three Phase: 7.5kW (16 Amp)
• Note: Three-phase machines are not compatible with single-phase conversion.
• Dimensions (W × D × H): 575 × 605 × 820 mm
• Supplied With: One pegged rack, one open cup/glass rack, and a cutlery insert
• Warranty: 2 Years

Downloads

C55WSD 13A Single Phase Tech Spec
C55WSD 30A Single Phase Tech Spec
C55WSD 16A Three Phase Tech Spec
User & Install Manual (English)
