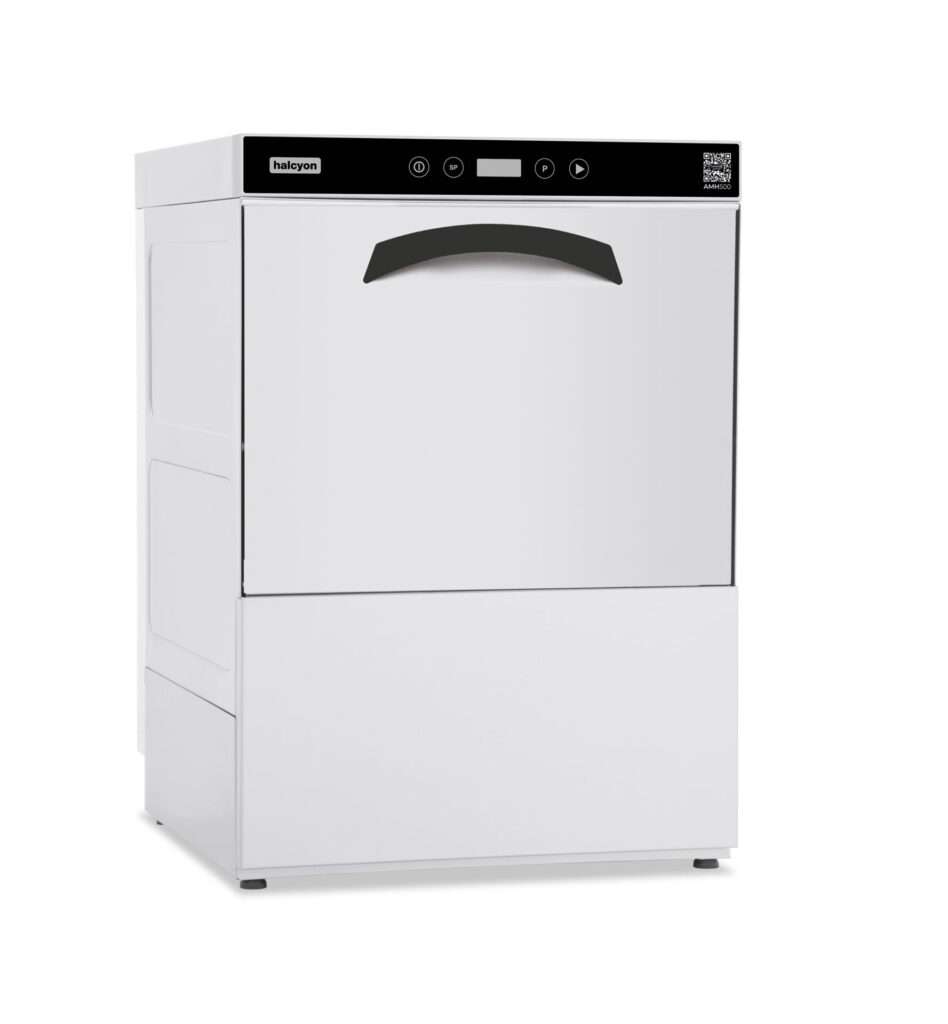

Maidaid Halcyon AMH500 Glasswasher

Maidaid Halcyon AMH500 Glasswasher

The Maidaid Halcyon AMH500 Glasswasher is a high-capacity commercial glasswasher designed to deliver exceptional cleaning performance in busy bars, restaurants, hotels, cafés, and hospitality venues. Featuring a 500 × 500 mm rack, it offers increased washing capacity while using just 1.5 litres of water per cycle, helping to minimise water consumption and operating costs without compromising hygiene or cleaning performance.

Equipped with an intuitive soft-touch LED digital display, the AMH500 is simple to operate and includes three wash programmes to suit a variety of washing requirements. Its high-density filtration system ensures consistently brilliant cleaning results by efficiently removing debris, while EN17735 hygiene certification guarantees the highest standards of cleanliness and sanitisation.

Built for reliability and easy maintenance, the AMH500 features removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps provide consistent washing performance with minimal operator input. With multiple single-phase and three-phase electrical options, the AMH500 can be installed to suit a wide range of commercial kitchens. Supplied with two open cup/glass racks and a cutlery insert, it is an efficient and dependable solution for demanding glasswashing applications.

Key Features

• High-capacity commercial glasswasher with 500 × 500 mm rack
• Uses just 1.5 litres of water per wash cycle for outstanding efficiency
• Soft-touch LED digital display for easy operation
• Three selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning results
• Built-in drain pump
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior cleaning performance
• Wash arms with removable inspection caps for easy cleaning
• Removable wash arm and tank system for simple maintenance
• Ergonomic improved door handle
• Multiple single-phase and three-phase electrical options
• Supplied with two open cup/glass racks and a cutlery insert
• Ideal for bars, cafés, restaurants, hotels, and hospitality venues
• 1-year manufacturer's warranty

Specifications

• Model: AMH500
• Rack Size: 500 × 500 mm
• Wash Programmes: 3
• Water Consumption: 1.5 litres per cycle
• Display: Soft-touch LED digital controls
• Drain Pump: Built-in
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 2.5kW (13 Amp), 4.5kW (20 Amp), or 6.5kW (30 Amp)
  • Three Phase: 6.5kW (16 Amp)
• Dimensions (W × D × H): 575 × 605 × 820 mm
• Supplied With: Two open cup/glass racks and cutlery insert
• Warranty: 1 Year

Downloads

AMH500 13A Single Phase Tech Spec
AMH500 30A Single Phase Tech Spec
AMH500 16A Three Phase Tech Spec
User & Install Manual (English)
