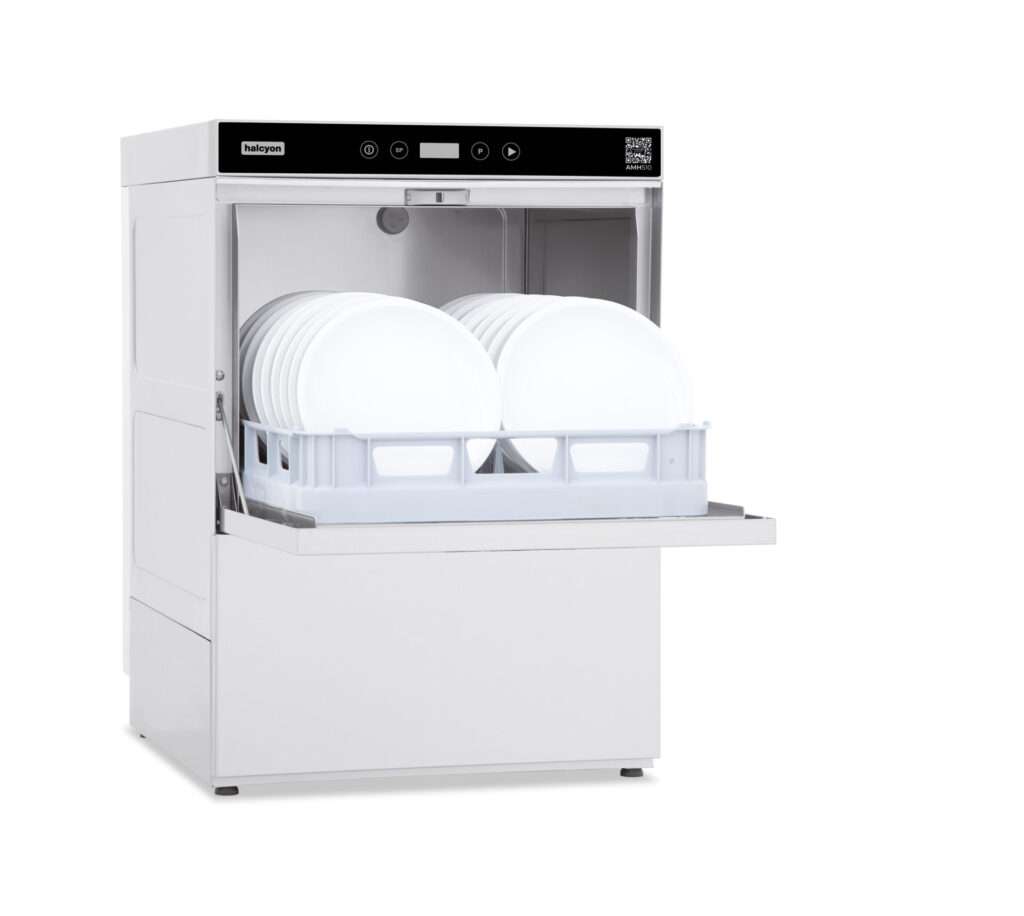

Maidaid Halcyon AMH510 Glasswasher/ Dishwasher

Maidaid Halcyon AMH510 Glasswasher / Dishwasher

The Maidaid Halcyon AMH510 Glasswasher / Dishwasher is a versatile commercial warewashing solution designed to deliver exceptional cleaning performance for restaurants, cafés, hotels, bars, and other busy hospitality environments. Featuring a 500 × 500 mm rack with the capacity to accommodate up to 16 plates per rack, it is equally suited to washing glassware, crockery, and utensils while using just 1.5 litres of water per cycle for outstanding efficiency.

Equipped with an intuitive soft-touch LED digital display, the AMH510 offers three wash programmes for flexible operation across a wide range of washing tasks. Its high-density filtration system provides consistently excellent cleaning performance by efficiently removing debris, while EN17735 hygiene certification ensures the highest standards of sanitisation. An integrated break tank helps maintain a safe and reliable water supply, making the machine suitable for commercial installations where backflow protection is required.

Designed for reliability and simple maintenance, the AMH510 features removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps ensure consistent cleaning results with minimal operator input. With multiple single-phase and three-phase electrical options, and supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the AMH510 is a dependable and efficient solution for demanding commercial kitchens.

Key Features

• Commercial glasswasher and dishwasher with 500 × 500 mm rack
• 16-plate capacity rack for washing crockery and tableware
• Uses just 1.5 litres of water per wash cycle for maximum efficiency
• Soft-touch LED digital display for simple operation
• Three selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning performance
• Built-in drain pump
• Integrated break tank for safe commercial water supply
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior wash coverage
• Wash arms with removable inspection caps for easy cleaning
• Removable wash arm and tank system for simple maintenance
• Ergonomic improved door handle
• Multiple single-phase and three-phase electrical options
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, cafés, hotels, bars, pubs, and hospitality venues
• 1-year manufacturer's warranty

Specifications

• Model: AMH510
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 16 plates per rack
• Wash Programmes: 3
• Water Consumption: 1.5 litres per cycle
• Display: Soft-touch LED digital controls
• Drain Pump: Built-in
• Break Tank: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 2.5kW (13 Amp), 4.5kW (20 Amp), or 6.5kW (30 Amp)
  • Three Phase: 6.5kW (16 Amp)
• Dimensions (W × D × H): 575 × 605 × 820 mm
• Supplied With: One pegged rack, one open cup/glass rack, and cutlery insert
• Warranty: 1 Year

Downloads

AMH510 13A Single Phase Tech Spec
AMH510 30A Single Phase Tech Spec
AMH510 16A Three Phase Tech Spec
User & Install Manual (English)
