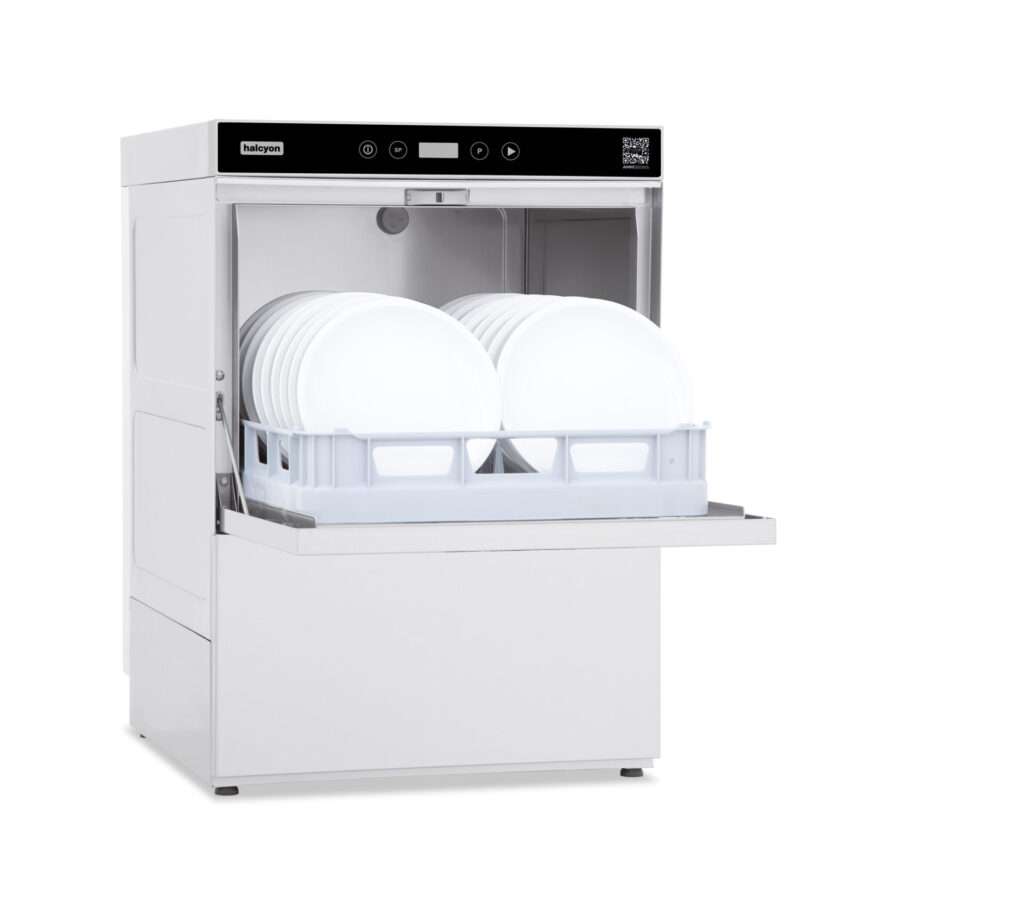

Maidaid Halcyon AMH550WS Glasswasher / Dishwasher

The Maidaid Halcyon AMH550WS Glasswasher / Dishwasher is a versatile and high-performance commercial warewashing solution designed to deliver exceptional cleaning results in restaurants, cafés, hotels, bars, pubs, and other busy hospitality environments. Featuring a 500 × 500 mm rack with a 16-plate capacity, it is ideal for washing glassware, crockery, and utensils while using just 1.5 litres of water per cycle, helping to reduce operating costs and water consumption.

Equipped with an intuitive soft-touch LED digital display, the AMH550WS offers five wash programmes to provide greater flexibility for different washing requirements. Its high-density filtration system delivers consistently brilliant cleaning performance by efficiently removing debris, while EN17735 hygiene certification ensures the highest standards of sanitisation and food safety. An integrated break tank provides reliable water protection and makes the machine suitable for commercial installations requiring backflow prevention.

Designed for dependable operation and easy maintenance, the AMH550WS features removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps ensure consistent cleaning performance with minimal operator intervention. Available with multiple single-phase and three-phase electrical options, and supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the AMH550WS is an efficient and reliable choice for demanding commercial kitchens.

Key Features

• Commercial glasswasher and dishwasher with 500 × 500 mm rack
• 16-plate capacity rack for washing crockery and tableware
• Uses just 1.5 litres of water per wash cycle for maximum efficiency
• Soft-touch LED digital display for simple operation
• Five selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning performance
• Built-in drain pump
• Integrated break tank for safe commercial water supply
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior wash coverage
• Wash arms with removable inspection caps for easy cleaning
• Removable wash arm and tank system for simple maintenance
• Ergonomic improved door handle
• Multiple single-phase and three-phase electrical options
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, cafés, hotels, bars, pubs, and hospitality venues
• 1-year manufacturer's warranty

Specifications

• Model: AMH550WS
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 16 plates per rack
• Wash Programmes: 5
• Water Consumption: 1.5 litres per cycle
• Display: Soft-touch LED digital controls
• Drain Pump: Built-in
• Break Tank: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 2.5kW (13 Amp), 4.5kW (20 Amp), or 6.5kW (30 Amp)
  • Three Phase: 6.5kW (16 Amp)
• Dimensions (W × D × H): 575 × 605 × 820 mm
• Supplied With: One pegged rack, one open cup/glass rack, and cutlery insert
• Warranty: 1 Year

Downloads

AMH550WS 13A Single Phase Tech Spec
AMH550WS 30A Single Phase Tech Spec
AMH550WS 16A Three Phase Tech Spec
User & Install Manual (English)
