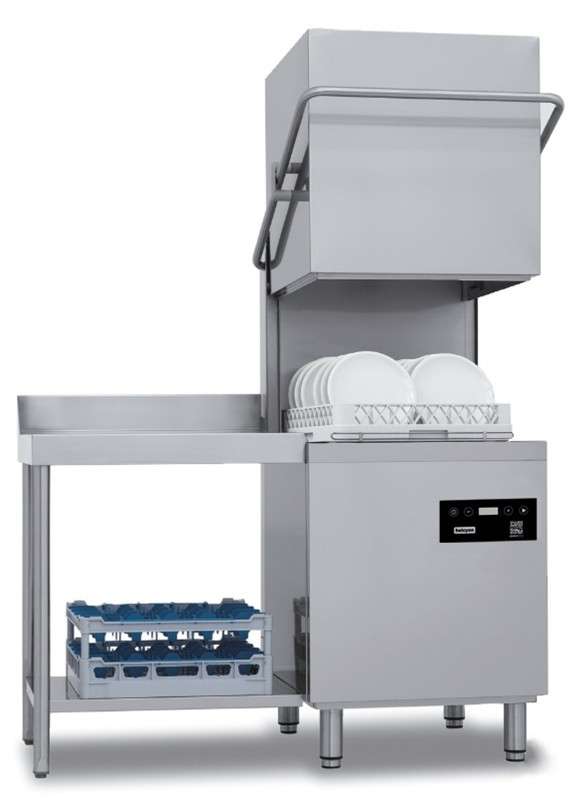

Maidaid Halycon AMH910 Pass Through Dishwasher

Maidaid Halcyon AMH910 Pass Through Dishwasher

The Maidaid Halcyon AMH910 Pass Through Dishwasher is a high-performance commercial pass-through dishwasher designed to deliver fast, reliable cleaning for busy restaurants, hotels, catering kitchens, schools, and hospitality venues. Featuring a 500 × 500 mm rack with a 16-plate capacity and a generous 420 mm hood clearance, it easily accommodates large plates, cookware, trays, and utensils while using as little as 1.5 litres of water per cycle to maximise efficiency and reduce operating costs.

Equipped with an intuitive soft-touch LED digital display, the AMH910 offers three wash programmes for flexible operation across a variety of washing tasks. Its high-density filtration system provides consistently brilliant cleaning performance, while EN17735 hygiene certification ensures the highest standards of sanitisation for commercial foodservice environments. The integrated break tank provides reliable water protection and helps meet commercial installation requirements.

Designed for durability and easy maintenance, the AMH910 features removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps ensure dependable cleaning with minimal operator intervention. Available with both single-phase and three-phase electrical options, and supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the AMH910 is an ideal warewashing solution for high-volume commercial kitchens.

Key Features

• Commercial pass-through dishwasher with 500 × 500 mm rack
• 16-plate capacity rack
• 420 mm hood clearance accommodates larger items
• Uses from 1.5 litres of water per wash cycle
• Soft-touch LED digital display for easy operation
• Three selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning performance
• Built-in drain pump
• Integrated break tank for safe commercial water supply
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior wash coverage
• Wash arms with removable inspection caps for easy cleaning
• Removable wash arm and tank system for simple maintenance
• Available in multiple single-phase and three-phase electrical configurations
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, hotels, commercial kitchens, catering facilities, and hospitality venues
• 1-year manufacturer's warranty

Specifications

• Model: AMH910
• Machine Type: Pass Through Dishwasher
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 16 plates per rack
• Hood Clearance: 420 mm
• Wash Programmes: 3
• Water Consumption: From 1.5 litres per cycle
• Display: Soft-touch LED digital controls
• Drain Pump: Built-in
• Break Tank: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 4.5kW (20 Amp) or 6.5kW (32 Amp)
  • Three Phase: 8.5kW (16 Amp)
• Dimensions (W × D × H): 633 × 750 × 1485 mm
• Supplied With: One pegged rack, one open cup/glass rack, and cutlery insert
• Warranty: 1 Year

Downloads

AMH910 32A Single Phase Tech Spec
AMH910 16A Three Phase Tech Spec
User & Install Manual (English)
