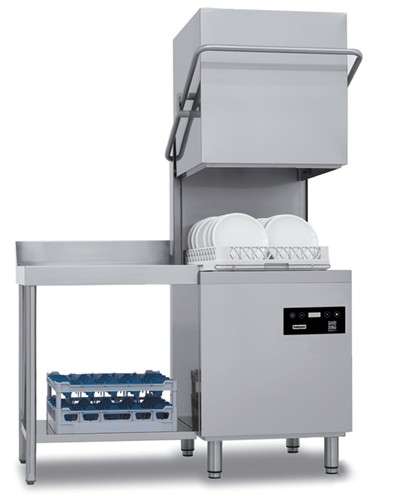

Maidaid Halycon AMH950WS Pass Through Dishwasher

Maidaid Halcyon AMH950WS Pass Through Dishwasher

The Maidaid Halcyon AMH950WS Pass Through Dishwasher is a premium commercial pass-through dishwasher designed to deliver exceptional cleaning performance in busy restaurants, hotels, catering facilities, schools, and other high-volume hospitality environments. Featuring a 500 × 500 mm rack with a 16-plate capacity and a generous 420 mm hood clearance, it easily accommodates plates, cookware, trays, and utensils while using from 1.5 litres of water per cycle to maximise efficiency and minimise running costs.

Equipped with an intuitive soft-touch LED digital display, the AMH950WS offers three wash programmes for flexible operation across a wide range of washing applications. Its high-density filtration system delivers consistently brilliant cleaning results, while EN17735 hygiene certification ensures the highest standards of sanitisation. The integrated break tank provides reliable water protection, and the built-in internal water softener helps reduce limescale build-up, improving washing performance and extending the machine's service life in hard water areas.

Built for durability and easy maintenance, the AMH950WS features removable wash arms with inspection caps, an easy-clean wash tank system, and a parallel wash and rinse arm assembly for complete wash coverage. The integrated drain pump and automatic detergent and rinse aid peristaltic dosing pumps provide dependable cleaning performance with minimal operator input. Available in both single-phase and three-phase electrical configurations, and supplied with one pegged rack, one open cup/glass rack, and a cutlery insert, the AMH950WS is an ideal warewashing solution for demanding commercial kitchens.

Key Features

• Commercial pass-through dishwasher with 500 × 500 mm rack
• 16-plate capacity rack
• 420 mm hood clearance for larger cookware and trays
• Uses from 1.5 litres of water per wash cycle
• Soft-touch LED digital display for simple operation
• Three selectable wash programmes
• EN17735 certified for high hygiene standards
• High-density filtration system for exceptional cleaning performance
• Built-in drain pump
• Integrated break tank for safe commercial water supply
• Internal water softener helps reduce limescale build-up
• Automatic detergent and rinse aid peristaltic dosing pumps
• Parallel wash and rinse arm assembly for superior wash coverage
• Wash arms with removable inspection caps for easy cleaning
• Removable wash arm and tank system for simple maintenance
• Available in single-phase and three-phase electrical options
• Supplied with one pegged rack, one open cup/glass rack, and a cutlery insert
• Ideal for restaurants, hotels, catering kitchens, schools, and hospitality venues
• 1-year manufacturer's warranty

Specifications

• Model: AMH950WS
• Machine Type: Pass Through Dishwasher
• Rack Size: 500 × 500 mm
• Plate Capacity: Up to 16 plates per rack
• Hood Clearance: 420 mm
• Wash Programmes: 3
• Water Consumption: From 1.5 litres per cycle
• Display: Soft-touch LED digital controls
• Drain Pump: Built-in
• Break Tank: Yes
• Internal Water Softener: Yes
• Detergent Dosing: Automatic peristaltic pump
• Rinse Aid Dosing: Automatic peristaltic pump
• Power Supply Options:
  • Single Phase: 4.5kW (20 Amp) or 6.5kW (32 Amp)
  • Three Phase: 8.5kW (16 Amp)
• Note: Three-phase machines are not compatible with single-phase conversion.
• Dimensions (W × D × H): 633 × 750 × 1485 mm
• Supplied With: One pegged rack, one open cup/glass rack, and cutlery insert
• Warranty: 1 Year

Downloads

AMH950WS 32A Single Phase Tech Spec
AMH950WS 16A Three Phase Tech Spec
User & Install Manual (English)
